MC4 Connector

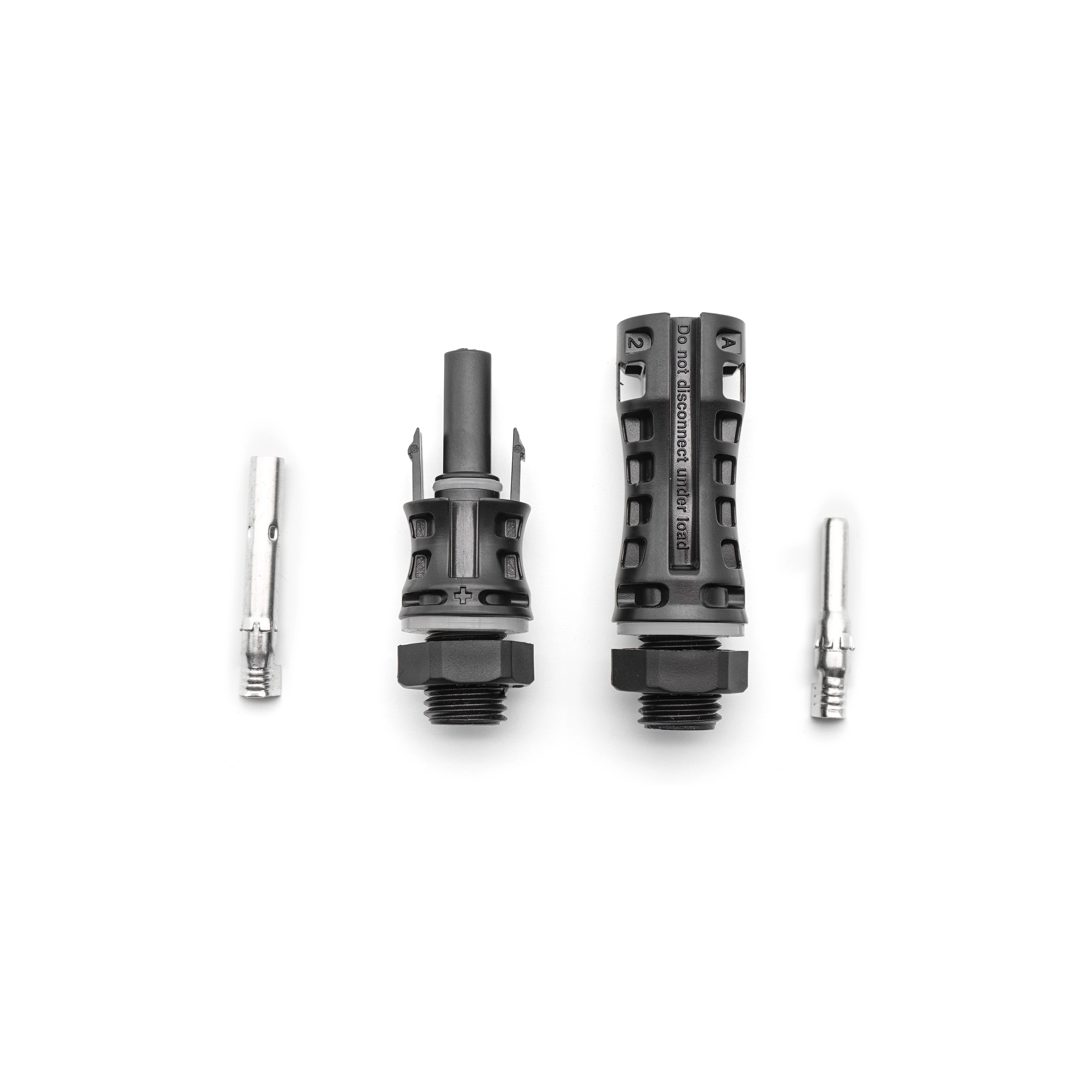

PV005-P1500V DC SOLAR PV PLATE END CONNECTORS
PV005-P 1500V
Contact material:Tinned copper
Rated Current:30A
Standard :IEC 62852：2014/CE
Protection Degree:IP65
Contact Resistance:≤0.5mΩ
Ambient temperature:-40℃-+85℃
Insulation Material:PPO
Flame Class:UL94 V-0
Thread size:12mm
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
Contact material:Tinned copper
Rated Current:30A
Standard :IEC 62852：2014/CE
Protection Degree:IP65
Contact Resistance:≤0.5mΩ
Ambient temperature:-40℃-+85℃
Insulation Material:PPO
Flame Class:UL94 V-0
Thread size:12mm
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| STYLE | Photovoltaic connector | DOCUMEN NO | PNTK-P5-003 | ||||
| SIZE | PV005-P | ||||||
| CONSTRUCTION FIGURE |
|||||||
| STANDARD BASIS | IEC 62852：2014 | ||||||
| Rated voltage | DC 1500V | ||||||
| Rated current | 30A | ||||||
| Contact material | Tinned copper | ||||||
| Insulation material | PPO | ||||||
| Locking system | Locking type | ||||||
| Degree of protection | IP65 | ||||||
| Ambient temperature range | -40℃~+85℃ | ||||||
| Upper temperature limit | 100℃ | ||||||
| Contact resistance of plug connectors | ≤0.5m Ω | ||||||
| Withstand voltage test | 8.0KV，1min | ||||||
| Flame class | UL94-V0 | ||||||
| compatibility | Compatible with MC4 connectors | ||||||
| Salt spray test | Degree of severity 6 | ||||||
| Damp heat test | No damage occurred which could impair normal use | ||||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | ||||||
| Connector pulling force | ≥200N | ||||||
| Warranty period | Twenty-five years | ||||||
| Thread size | 12mm | ||||||
| Packing quantity | 500 sets/box | ||||||
Product Details
IP65 Waterproof Level
Protection from dust inhalation, protection from short immersion, prevent erosion in wet weather IP65 protection improves the service life of the product
High Strength PPO Insulation
It has the advantages of large rigidity and high heat resistance. In addition, PPO still has the advantages of wear-resisting and pollution resistance.
Thickened Copper Core
Copper tin-plated material, open type copper core, real material is more durable
Stable Self-locking
The connector is connected by pressing, and the male and female connectors open and close freely.
Products Features
Flame Retardant
IP65 Protection degree
Factory direct sale
Long Service Life
