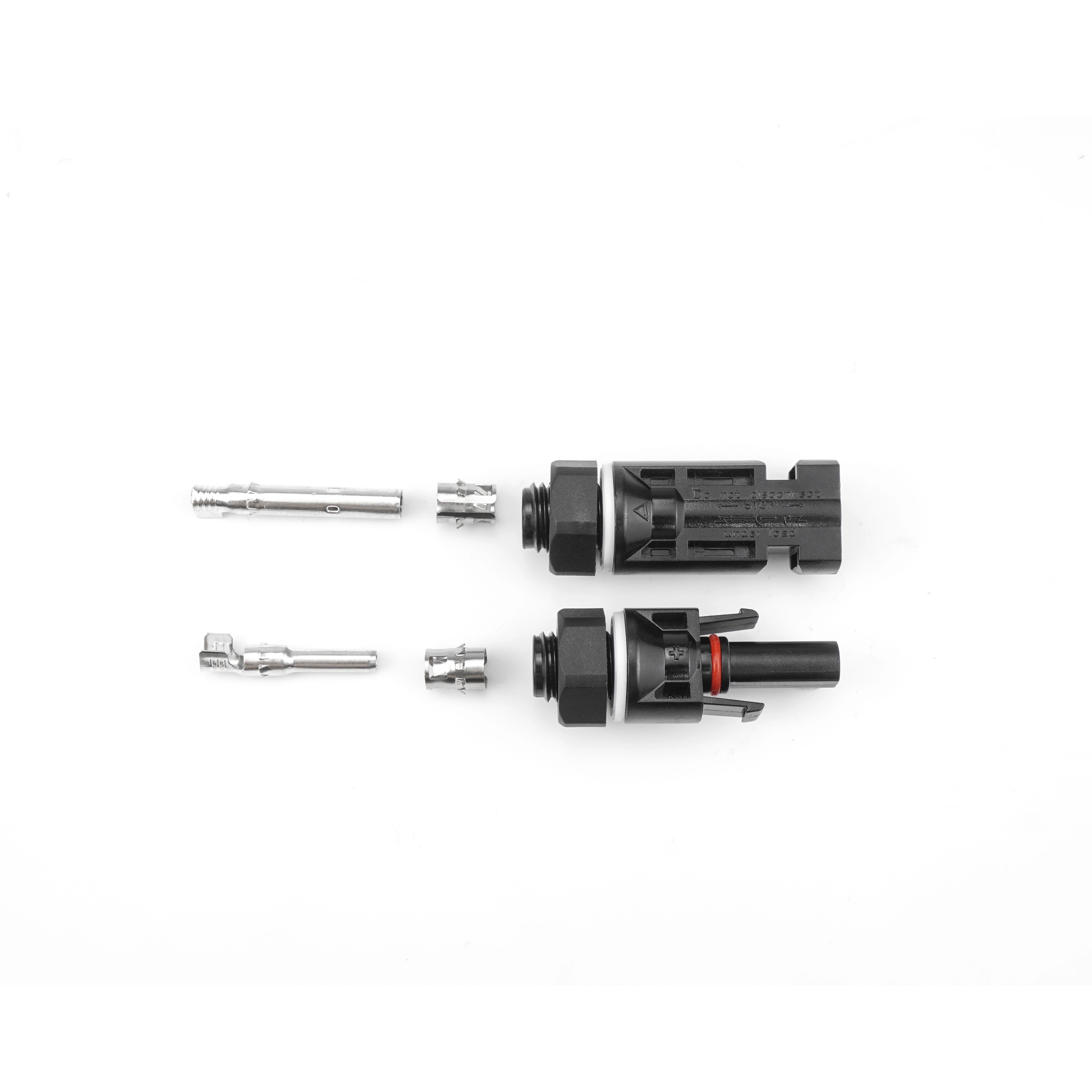

MC4 Connector
PV004-P 1000V DC SOLAR PV PLATE END CONNECTORS
PV004-P 1000V
Contact material: Tinned copper
Rated Current: 30A
Standard :IEC 62852: 2014/CE
Protection Degree: IP65
Contact Resistance: ≤0.5mΩ
Ambient temperature: -40℃-+85℃
Insulation Material: PPO
Flame Class: UL94 V-0
Thread size: 12mm
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
Contact material: Tinned copper
Rated Current: 30A
Standard :IEC 62852: 2014/CE
Protection Degree: IP65
Contact Resistance: ≤0.5mΩ
Ambient temperature: -40℃-+85℃
Insulation Material: PPO
Flame Class: UL94 V-0
Thread size: 12mm
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| STYLE | Photovoltaic connector |
DOCUMEN NO | PNTK-P4-004 | |||
| SIZE | PV004-P | |||||
| CONSTRUCTION FIGURE |
||||||
| STANDARD BASIS | IEC 62852：2014 | |||||
| Rated voltage | DC 1000V | |||||
| Rated current | 30A | |||||
| Contact material | Tinned copper | |||||
| Insulation material | PC | |||||
| Locking system | Locking type | |||||
| Degree of protection | IP65 | |||||
| Ambient temperature range | -40℃~+85℃ | |||||
| Upper temperature limit | 100℃ | |||||
| Contact resistance of plug connectors | ≤0.5m Ω | |||||
| Withstand voltage test | 6.0KV，1min | |||||
| Flame class | UL94-V0 | |||||
| compatibility | Compatible with MC4 connectors | |||||
| Salt spray test | Degree of severity 6 | |||||
| Damp heat test | No damage occurred which could impair normal use | |||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | |||||
| Connector pulling force | ≥200N | |||||
| Warranty period | Twenty-five years | |||||
| Thread size | 12mm | |||||
| Packing quantity | 500 sets/box | |||||
Product Details
PPO MATERIAL
High heat resistance,flame resistance,high strength,excellent electrical performance,abrasion resistance and environmental protection
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Stable Clip
Snap lock,stable self-locking function,easy to open and close.
Insulation Parts
The contact head of the product is provided with a guide insulation to guide and prevent electric shock.
O-Rings
The connector socket adopts high quality sealing ring to effectively prevent dust and rain from invading.
500 Sets/Carton
Conventional carton packaging,500 sets/carton.
Products Features
Flame Retardant
Easy Installation
Tinned Copper Core
Long Service Life
