MC4 Connector

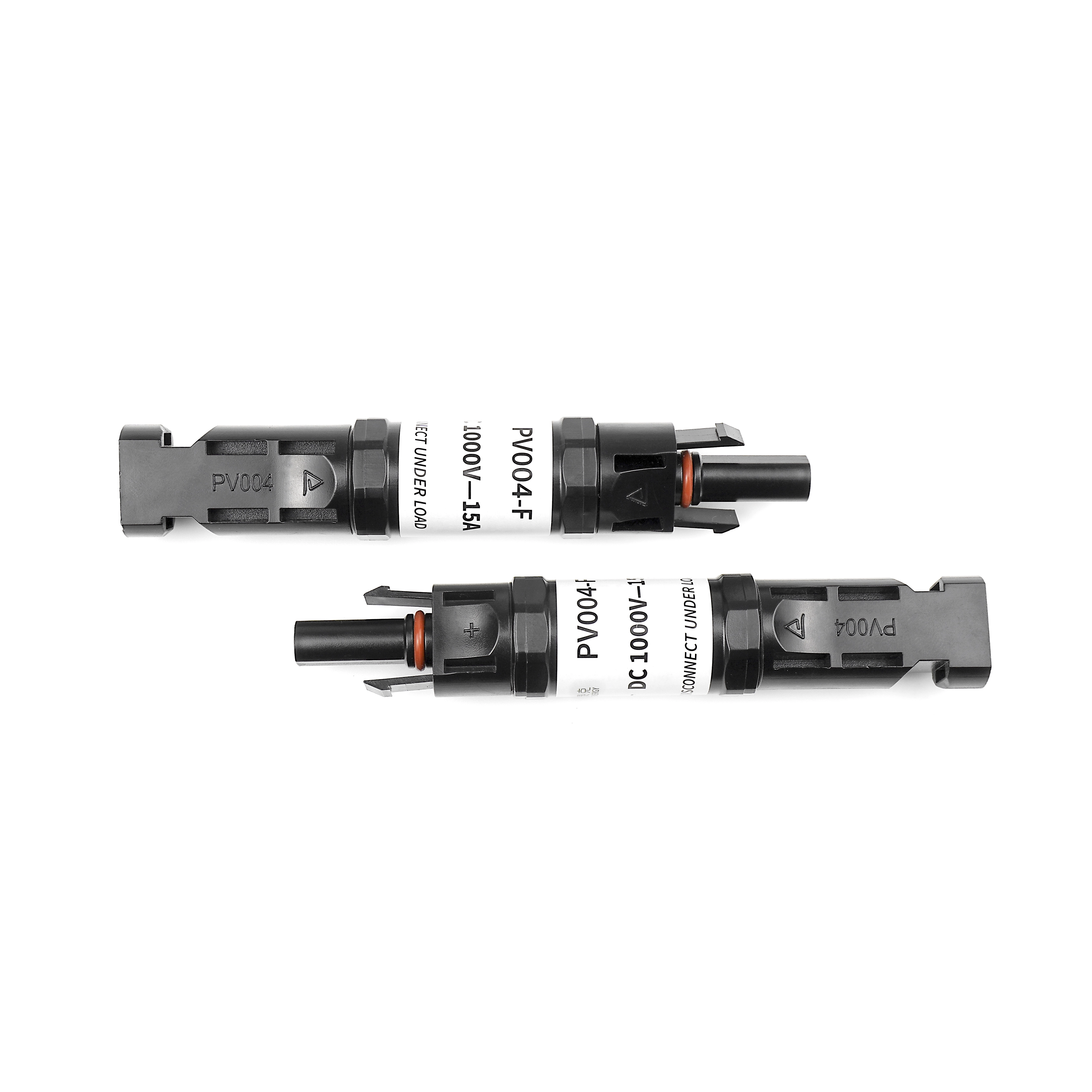

PV004-F 1000V DC SOLAR PV FUSE CONNECTORS
PV004-F 1000V
Contact material: Tinned copper
Rated Current: 10A,15A,20A
Standard: IEC 62852：2014/CE
Protection Degree: IP65
Contact Resistance: ≤0.5mΩ
Ambient temperature: -40℃-+85℃
Insulation Material: PC EXL9330/PPO
Flame Class: UL94 V-0
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
Contact material: Tinned copper
Rated Current: 10A,15A,20A
Standard: IEC 62852：2014/CE
Protection Degree: IP65
Contact Resistance: ≤0.5mΩ
Ambient temperature: -40℃-+85℃
Insulation Material: PC EXL9330/PPO
Flame Class: UL94 V-0
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| STYLE | Photovoltaic connector |
DOCUMEN NO | PNTK-P4-003 | |||
| SIZE | PV004-F | |||||
| CONSTRUCTION FIGURE |
||||||
| STANDARD BASIS | IEC 62852：2014 | |||||
| Rated voltage | DC 1000V | |||||
| Rated current | 10A、15A、20A、30A | |||||
| Contact material | Tinned copper | |||||
| Insulation material | PC | |||||
| Locking system | Locking type | |||||
| Degree of protection | IP65 | |||||
| Ambient temperature range | -40℃~+85℃ | |||||
| Upper temperature limit | 100℃ | |||||
| Contact resistance of plug connectors |
≤0.5m Ω | |||||
| Withstand voltage test | 6.0KV，1min | |||||
| Flame class | UL94-V0 | |||||
| compatibility | Compatible with MC4 connectors | |||||
| Salt spray test | Degree of severity 6 | |||||
| Damp heat test | No damage occurred which could impair normal use | |||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | |||||
| Connector pulling force | ≥200N | |||||
| Warranty period | Twenty-five years | |||||
| Packing quantity | 500 sets/box | |||||
Product Details
PC EXL9330
The shell is made of high-quality PC EXL9330C,flame retardant,high and low temperature resistant,UV resistant and corrosion resistant.
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Thickening the core
Each fuse connector is equipped with a thickened core with a voltage rating of 1000V DC,which prevents the high current from damaging important components in the circuit or causing a fire.
Products Features
Flame Retardant
Easy Installation
Tinned Copper Core
Long Service Life
