Solar Y connector

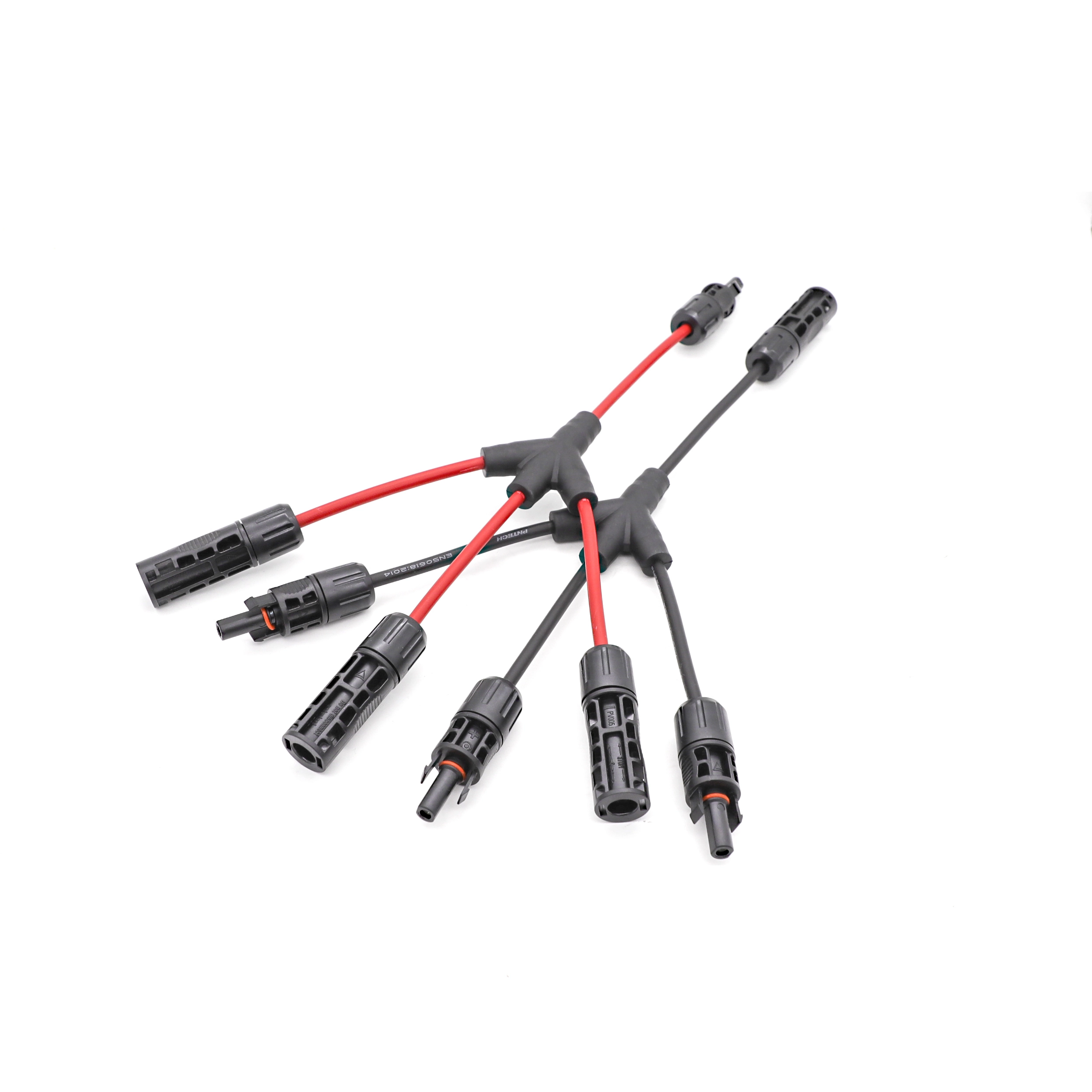

PV005-3T1 1500V DC SOLAR PV 3 to 1 Y Branch CONNECTORS
PV005-3T1 1500V
Contact material:Tinned copper
Rated Current:30A
Standard :IEC 62852：2014/CE
Protection Degree:IP65
Contact Resistance:≤0.5mΩ
Ambient temperature:-40℃-+90℃
Insulation Material:XLPO/PV40Z
Flame Class:UL94 V-0
Input cable:PV cable 1*4mm2
Output cable：PV cable 1*4mm2
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
Contact material:Tinned copper
Rated Current:30A
Standard :IEC 62852：2014/CE
Protection Degree:IP65
Contact Resistance:≤0.5mΩ
Ambient temperature:-40℃-+90℃
Insulation Material:XLPO/PV40Z
Flame Class:UL94 V-0
Input cable:PV cable 1*4mm2
Output cable：PV cable 1*4mm2
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
STYLE
|
Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P5-010
|
| SIZE |
PV005-3T1
|
||
|
CONSTRUCTION
FIGURE
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Rated voltage |
DC 1500V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PPO/XLPO
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
8.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Input/output cable specifications |
1×4mm²/1×4mm²
|
||
| Packing quantity |
60 sets/box
|
||
Product Details
HIGH QUALITY CONNECTOR
PV40Z material, tinned copper inner core, flame retardant, high and low temperature resistant, Uvresistant.
QUALITY TINNED COPPER
Tin plating process, oxidation resistance, good conductivity,99.98% pure copper, low resistance.
HIGH QUALITY INSULATION
The cable is XLPO, flame retardant, high and low temperature resistant, UV resistance and corrosion resistance
INJECTION MOLDING
The confluence adopts injection molding crimping, which is tightly sealed,waterproof, wear-resistant and durable.
Products Features
Flame Retardant
Easy installation
Low resistance
Long Service Life
FAQ
1
Who are we?
We are based in Zhejiang, China, start from 2021,sell to Domestic Market(70.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3
What can you buy from us?
DC Solar Cable, Solar PV Connector, Solar Extension Cable, Solar Tool Kits
4
Why should you buy from us not from other suppliers?
Founded in 2011 in Ningbo, China, PNTECH is one the leading suppliers for solar cables, solar connectors of the highest level of quality. At PNTECH, we strive to meet 100% of our customer requirements and deliver quality products on time through contine.
