Solar Y connector

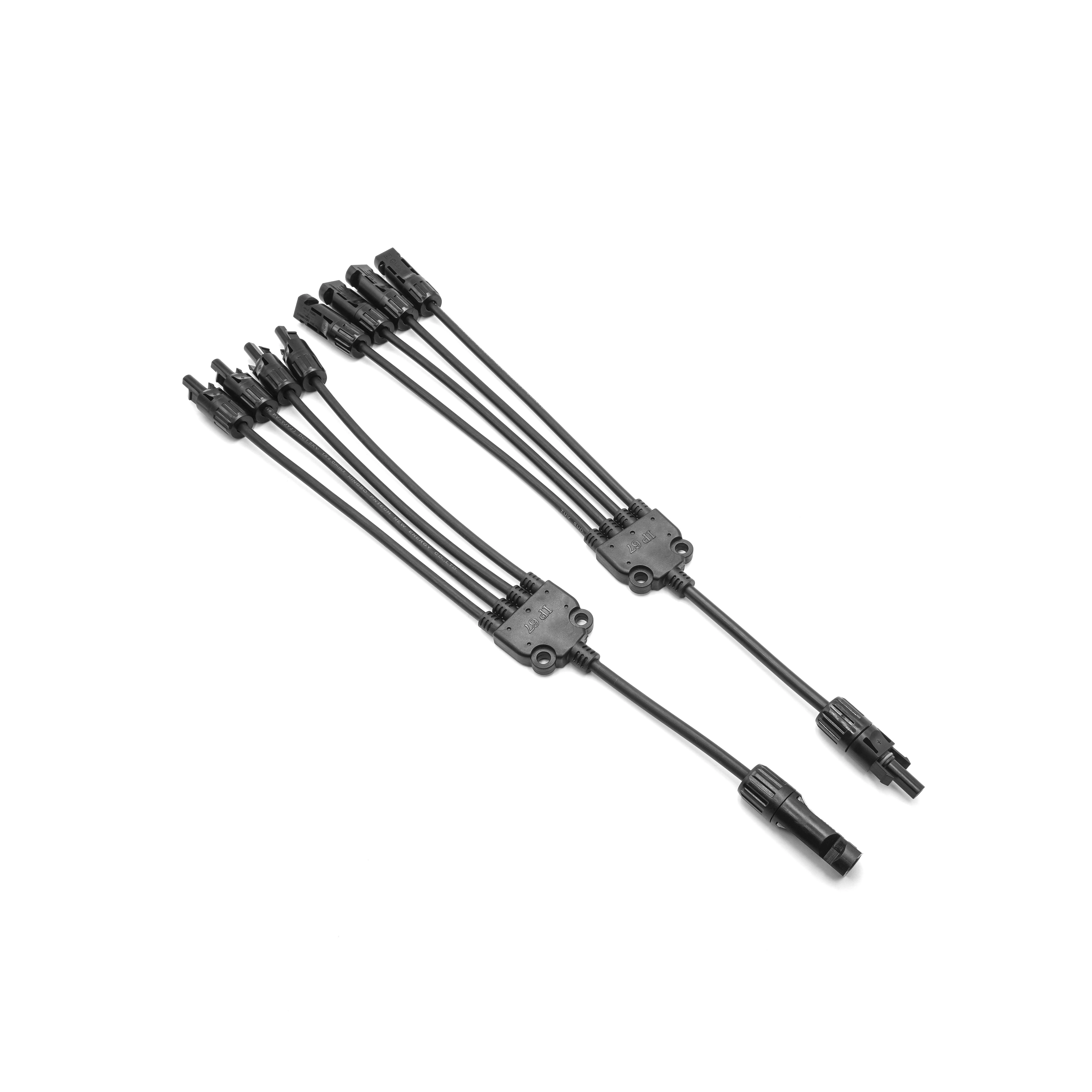

PV004-4T1 1000V DC SOLAR PV 4 to 1 Y Branch CONNECTORS
PV004-4T1 1000V DC 30A
Protection Degree:IP65
Contact resistance:≤0.5mΩ
Ambient temperature:-40℃-+85℃
Contact Materials:Tinned copper
Insulation Material:PC EXL9330/XLPO
Flame class:UL94 V-0
Input cable:PV cable 1*4mm2
Output cable:PV cable 1*6mm2
Application Scenario: Self built houses in rural areas;Array power station;BIPV building integration;Industrial and commercial roof;Agriculture,Fishing and lighting;Optical storage charging.
Protection Degree:IP65
Contact resistance:≤0.5mΩ
Ambient temperature:-40℃-+85℃
Contact Materials:Tinned copper
Insulation Material:PC EXL9330/XLPO
Flame class:UL94 V-0
Input cable:PV cable 1*4mm2
Output cable:PV cable 1*6mm2
Application Scenario: Self built houses in rural areas;Array power station;BIPV building integration;Industrial and commercial roof;Agriculture,Fishing and lighting;Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
STYLE
|
Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P4-012
|
| SIZE |
PV004-4T1
|
||
|
CONSTRUCTION
FIGURE
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Rated voltage |
DC 1000V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PC/XLPO
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
6.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Input/output cable specifications |
1×4mm²/1×6mm²
|
||
| Packing quantity |
60 sets/box
|
||
Product Details
Connector
PC EXL9330 Material,tinned copper inner core,flame retardant,high and low temperature resistant,UV resistant
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Sheathing Material
The cable is XLPO,flame retardant,high and low temperature,UV resistance and corrosion resistance
Insulation Parts
The contact head of the product is provided with a guide insulation to guide and prevent electric shock.
Products Features
High and low temperature
Antioxidants
Flame Retardant
Easy Installation
Environmental protection
Low resistance
