MC4 Connector

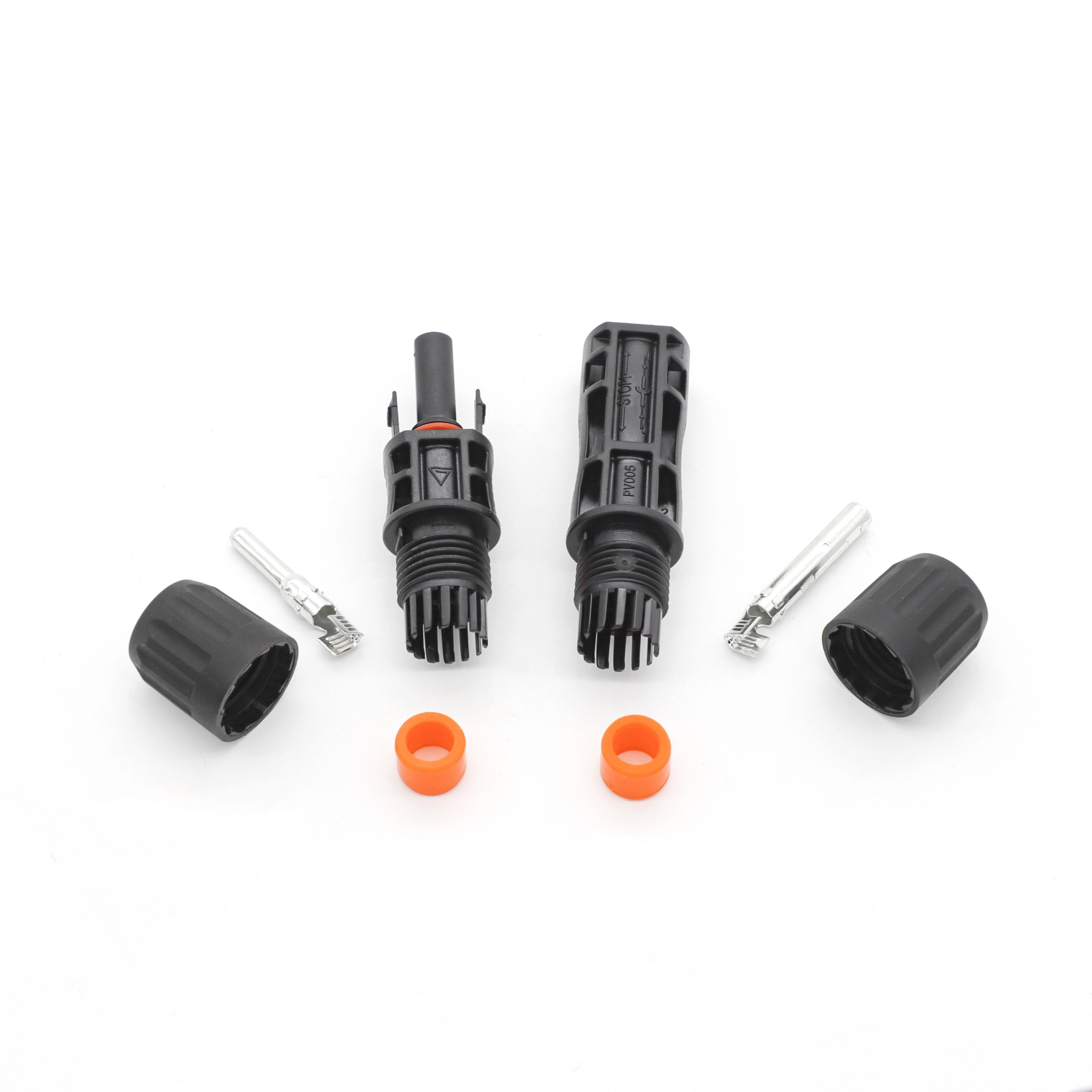

PV005-N 1500V Photovoltaic Connector - High Voltage Solar Power Connector
1500V DC 30A -40℃~+85℃ Ambient temperature,male and female ,fine workmanship,thickened copper,IP68waterproof,High and low tenperature resistance, self-Locking,Quick Installation.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Product name
|
solar pv connector
|
|
Wire specifications
|
2mm²,4mm²,6mm²
|
|
Rated voltage
|
1500V DC
|
|
Rated Current
|
30A
|
|
Contact material
|
Tinned copper
|
|
Insulation material
|
PA66
|
|
Protection Degree
|
IP65/IP68
|
|
Ambient temperature
|
-40℃~+85℃
|
|
Upper temperature limit
|
100℃
|
|
Contact resistance
|
≤0.5mΩ
|
|
Flame class
|
UL94-V0
|
|
Type of connection
|
Crimping
|
|
Locking system
|
Embedded Locking type
|
|
Withstand voltage test
|
8.0KV，1min
|
|
Salt spray test
|
Degree of severity 6
|
|
Damp heat test
|
No damage occurred which could impair normal use
|
|
Assemblability
|
Insertion force ≤50N, withdrawal force ≥50N
|
|
Connector pulling force
|
≥200N
|
|
Warranty period
|
Twenty-five years
|
|
Packing quantity
|
500 sets/box
|
|
Standard
|
IEC 62852:2014
|
Product Details
Highly Conductive
Thickened copper core, tin-plated surface, not easy tO oxidise
High Quality Housings
PA66 material, fire retardant, high and low temperature resistance, UV resistan
SeIf-Locking
Connectors remain tight even after repeated plugging and unplugging, snap locking, not easy tO come off.
Products Features
Fine workmanship
Thickened copper
IP68 waterproof
High and low temperature resistance
Self-Locking
Quick lnstallation
FAQ
1
Who are we?
We are based in Zhejiang, China, start from 2021,sell to Domestic Market(70.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3
What can you buy from us?
DC Solar Cable, Solar PV Connector, Solar Extension Cable, Solar Tool Kits
4
Why should you buy from us not from other suppliers?
Founded in 2011 in Ningbo, China, PNTECH is one the leading suppliers for solar cables, solar connectors of the highest level of quality. At PNTECH, we strive to meet 100% of our customer requirements and deliver quality products on time through contine.
5
What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, Credit Card, Western Union;
Language Spoken: English, Chinese
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, Credit Card, Western Union;
Language Spoken: English, Chinese
