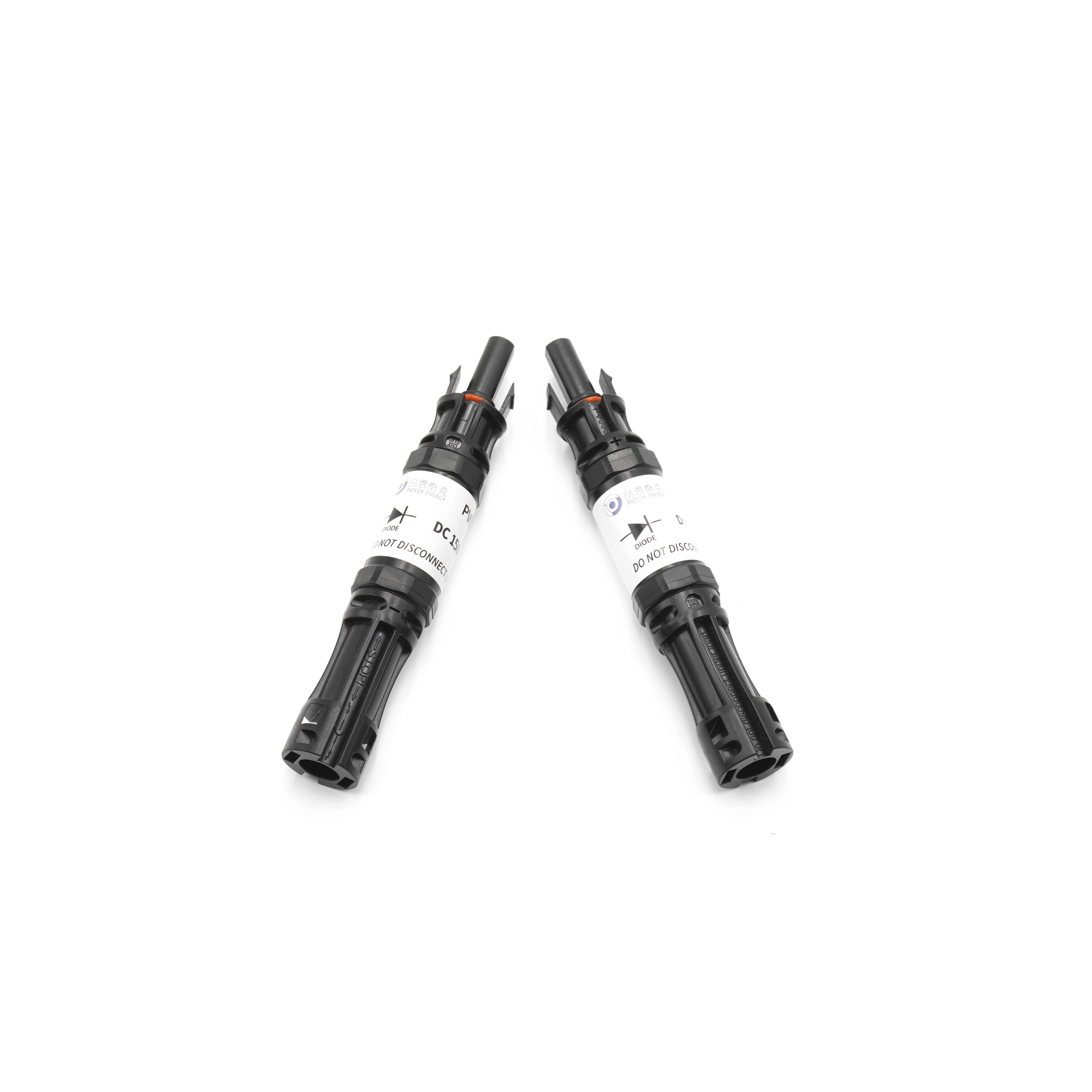

PV005-D 1500V DC SOLAR PV DIODE CONNECTORS
PV005-D 1500V DC 10A/15A/20A
Protection Degree:IP65
Contact resistance:≤0.5mΩ
Ambient temperature:-40℃-+85℃
Contact Materials:Tinned copper
Insulation Material:PPO
Flame class:UL94 V-0
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
Protection Degree:IP65
Contact resistance:≤0.5mΩ
Ambient temperature:-40℃-+85℃
Contact Materials:Tinned copper
Insulation Material:PPO
Flame class:UL94 V-0
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| STYLE | Photovoltaic connector | DOCUMEN NO | PNTK-P5-002 | ||||
| SIZE | PV005-D | ||||||
| CONSTRUCTION FIGURE |
|||||||
| STANDARD BASIS | IEC 62852：2014 | ||||||
| Rated voltage | DC 1500V | ||||||
| Rated current | 10A、15A、20A | ||||||
| Contact material | Tinned copper | ||||||
| Insulation material | PPO | ||||||
| Locking system | Locking type | ||||||
| Degree of protection | IP65 | ||||||
| Ambient temperature range | -40℃~+85℃ | ||||||
| Upper temperature limit | 100℃ | ||||||
| Contact resistance of plug connectors | ≤0.5m Ω | ||||||
| Withstand voltage test | 8.0KV，1min | ||||||
| Flame class | UL94-V0 | ||||||
| compatibility | Compatible with MC4 connectors | ||||||
| Salt spray test | Degree of severity 6 | ||||||
| Damp heat test | No damage occurred which could impair normal use | ||||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | ||||||
| Connector pulling force | ≥200N | ||||||
| Warranty period | Twenty-five years | ||||||
| Packing quantity | 500 sets/box | ||||||
Product Details
QUALITYTINNED COPPER
The shell is made of high-quality PC EXL9330C, flame retardant, high and low temperature resis- tant, UV resistant and corrosion resistant.
HIGH QUALITY TINNED COPPER CORE
Tin plating process, anti-oxidation, not easy to rust,Good conductivity, low resistance, can reduce electricalCurrent conduction loss.
ANTI REFLECTION DIODE
Built in anti reflection diode, effectively preventing reverse current flow, low power consumption, good heat dissipation function
Products Features
Flame Retardant
Easy Installation
Tinned Copper core
Long Service Life
