MC4 Connector

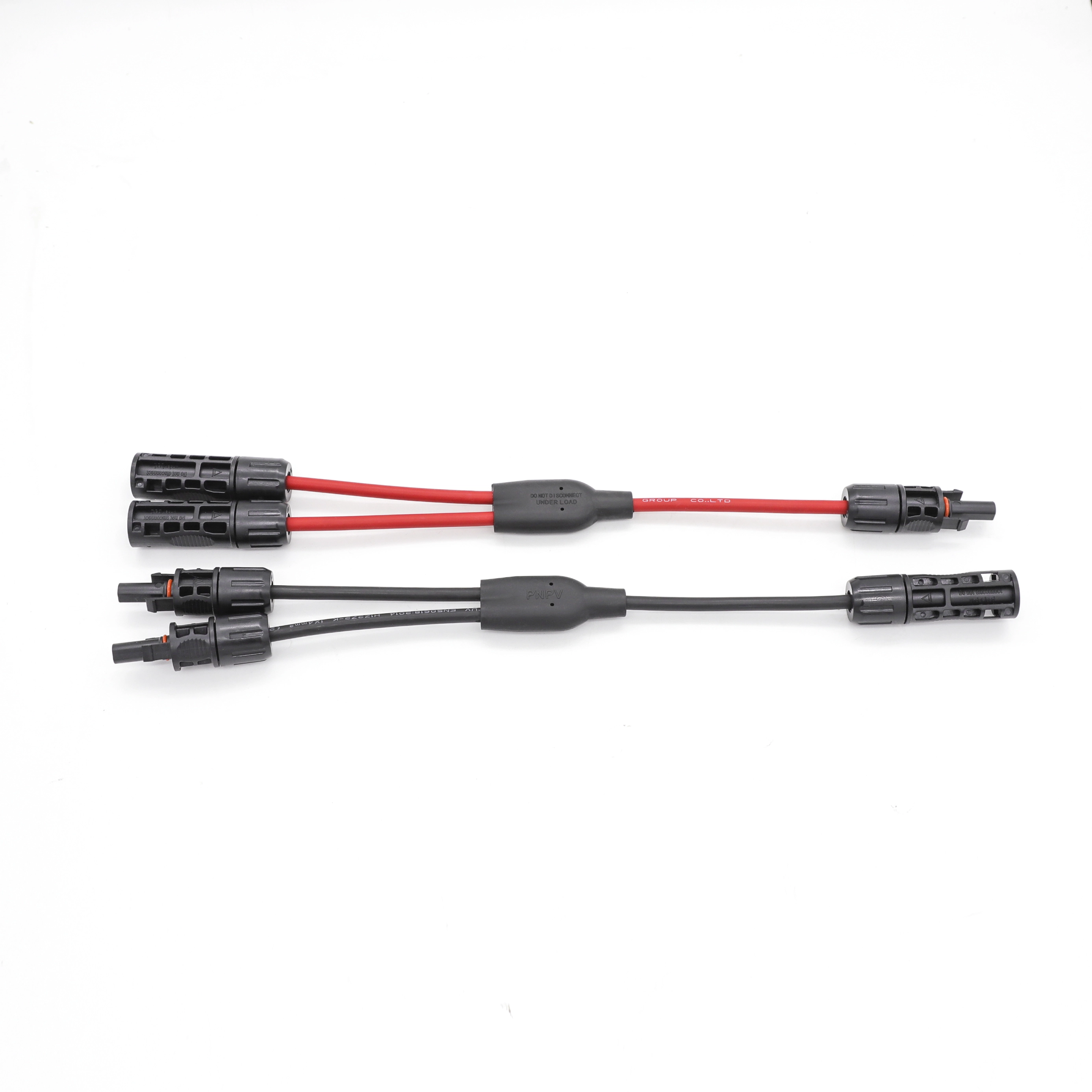

PV005-2T1 1500V DC Y Branch SOLAR PV CONNECTOR
PV005-2T1 1500V
Contact material:Tinned copper
Rated Current:30A
Standard :IEC 62852：2014/CE
Protection Degree:IP68
Contact Resistance:≤0.5mΩ
Ambient temperature:-40℃-+90℃
Insulation Material:PPO
Flame Class:UL94 V-0
Input cable:PV cable 1*4mm2
Output cable:PV cable 1*4mm2
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
Contact material:Tinned copper
Rated Current:30A
Standard :IEC 62852：2014/CE
Protection Degree:IP68
Contact Resistance:≤0.5mΩ
Ambient temperature:-40℃-+90℃
Insulation Material:PPO
Flame Class:UL94 V-0
Input cable:PV cable 1*4mm2
Output cable:PV cable 1*4mm2
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Type
|
PV005-2T1
|
|
Rated Voltage
|
1500V DC
|
|
Rated Current
|
30A
|
|
Protection Degree
|
IP65
|
|
Contact Resistance
|
≤0.5mΩ
|
|
Ambient Temperature
|
-40℃～+ 90℃
|
|
Insulation Material
|
PV40Z/XLPO
|
|
Contact Material
|
Tinned copper
|
|
Flame Class
|
UL94 V-0
|
|
Input Cable
|
PV Cable 1×4mm²
|
|
Output Cable
|
PV Cable 1×4mm²
|
Product Details
High Quality
PV40Z material,tinned copper inner core,flame retardant,high and low temperature resistant,UV resistant
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Sheathing Material
The cable is XLPO,flame retardant,high and low temperature resistant,UV resistance and corrosion resistance.
Injection Molding
The confluence adopts injection molding crimping,which is tightly sealed,waterproof,wear-resistant and durable.
Products Features
Flame Retardant
Environmental protection
Antioxidants
High and low temperature resistant
Wear Resisting
