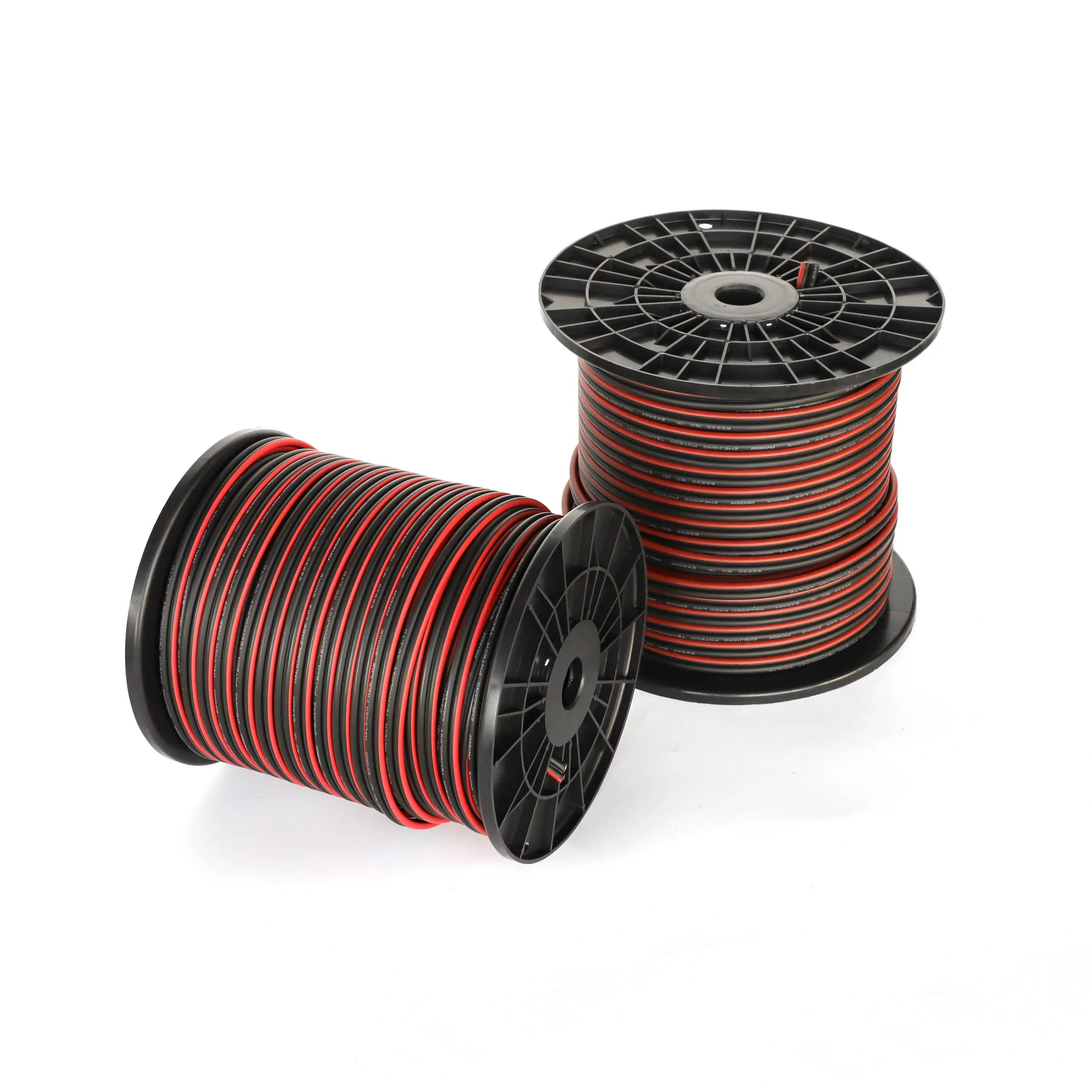

62930 IEC131 TUV approval XLPO Twin core 1500V DC Solar PV Cable
62930IEC131 1500V twin core solar PV cable,
ozone resistance and anti-ultraviolet,
excepted period is 25 years,
and have official certification TUV CQC CCC ,
bear the harsh environment
Specification
| PRODUCT NAME | 62930 IEC 131 | DOCUMEN NO | PNTK-IE-003 | |||
| SIZE | 2×4mm² | |||||
| SECTIONAL DRAWING | ||||||
| STANDARD BASIS IEC 62930-2017 | ||||||
| MARKING | 62930 IEC 131 2×4mm² HALOGEN FREE LOW SMOKE ZHEJIANG PNTECH TECHNOLOGYCO.,LtD |
|||||
| CONDUCTOR | MATERIAL | (Tinned plated copper) | ||||
| CONSTRUCTION (N/mm) | TS 56/0.285±0.015 | |||||
| DIA (mm) | 2.4 | |||||
| INSULATION | MATERIAL | (XLPO) | ||||
| OVER DIAMEREDR(mm) | 3.8±0.1 | |||||
| AVG. THICK(mm) | ≥0.7 | |||||
| MIN. THICK(mm) | ≥0.53 | |||||
| COLOR | Upon customer's request | |||||
| SHEATH | MATERIAL | (XLPO) | ||||
| OVER DIAMEREDR (mm) | 5.6±0.2 × 11.8±0.4 | |||||
| AVG. THICK (mm) | ≥0.8 | |||||
| MIN. THICK (mm) | ≥0.58 | |||||
| COLOR | Upon customer's request | |||||
| ELECTRICAL PERFORMANCE |
RATED VOLTAGE (V) | AC1.0/1.0KVDC1.5KV | ||||
| RATED TEMP (℃) | -40℃-90℃ | |||||
| COND. RESISTANCE (Ω/km,20℃) | ≤5.09 | |||||
| INSU. RESISTANCE (M Ω.km，20℃) | ≥709 | |||||
| VOITAGE WITH STAND TEST | AC6.5KV或DC15KV,5min | |||||
| SPARK ELECTROMECHANICAL VOLTAGE (KV) | 7 | |||||
| SHORT-CIRCUIT TEMPERATURE | ≤200℃/5s | |||||
| PHYSICAL PROPERTY OF INSULATION |
MIN TENSILE STRENGTH (N/mm²) | ≥8.0 | ||||
| MIN BREAK ELONGATION RATE (％) | ≥125 | |||||
| FLAME TEST | EN60332-1-2 | |||||
| THEORETICAL SERVICE LIFE （Year） | 25 | |||||
| ENVIRON MENT PROECTION | ROHS2.0 | |||||
| Packing specification |
Packing quantity: 100m | |||||
Product Details
Pntech creates excellent ouality
Quality tinned copper
Tin plating process,oxidation resistant, not easy to rust, good conductivity, 99.98% pure copper, low resistance, can reduce the power loss in the current conduction process.
Sheathing Material
The insulation adopts low smoke halogen free irradiated cross-linked polyolefin (XLPO), which is fire retardant,high and low temperature resistant,UVresistance, corrosion resistance, long service life.
Double Insulation
The material of insulation and sheath
Layer is radiation cross-linked polyolefin(XLPO). The sheath is thickened, folding resistant, and durable.
Separable
The dual core photovoltaic cable has the advantages of convenient installation and laying, beautiful wiring, separable and convenient use.
Products Features
