twin core solar cable

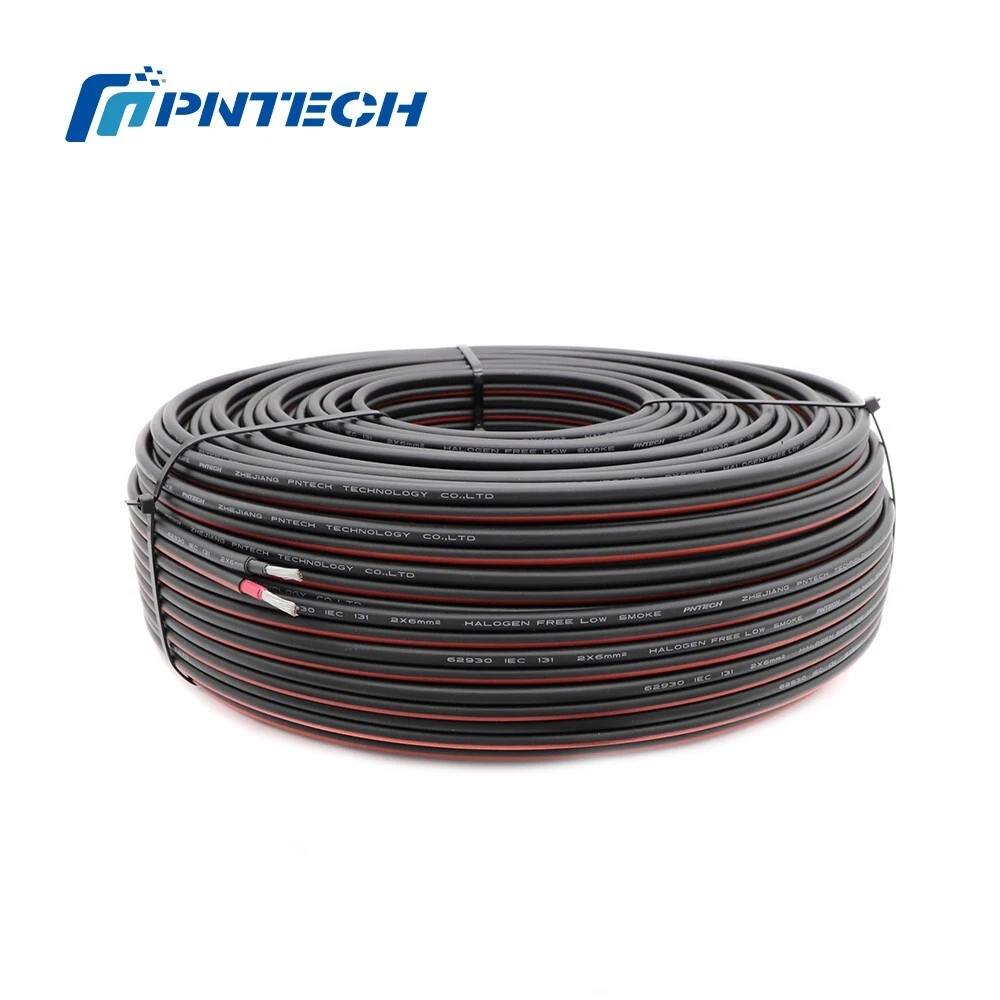

Twin Core Tuv 62930 Iec 131 2x2.5mm2 6mm Solar Pv Cable Double Parallel Xlpo For Solar Power Panel Dc 1.5 Kv Pv Solar Round
5.0
Model Number:
62930 IEC131 2x6mm2
Brand Name:
PNTECH
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000(meters):8(days),1001-5000(meters):10(days),5001-10000(meters):12(days),>10000(meters):To be negotiated(days)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Max Temperature at conductor
+120℃
Voltage test on completed cable
AC:6.5KV DC:15KV,5min
Wire specification
2x6.0mm2
Rated voltage
AC:Uo/U=1.0/1.0KV DC:1.5KV
Product name
Solar Cable
Size
2*2.5mm2, 2*6mm2
Jacket
XLPO
Conductor Material
Oxygen-free Tinned Copper Wire
Application
Power Station
Type
solar pv cable
Insulation Material
XLPO
Place of Origin
Zhejiang, China
Certificate
TUV
Service Life
25 years(-40℃~+90℃)
Damp Heat Test
EN60068-2-78
Ambient Temperature
-40℃~+90℃
Product Details
Product Description
Product Name | DC Solar PV Cable |
Origin | China |
Color | Black and Red or Customized |
Specification | 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2 |
Number of Cores | Twins Core |
Transport Package | Drum or Roll |
Conductor | Oxygen-free Tinned Copper Wire |
Insulating Layer | 125℃XLPO |
Sheath Layer | 125℃ XLPO |
Special Process | lirradiated Cross-linked |
Rated Voltage | AC:Uo/U=1.0/1.0KV DC:1.8KV |
Ambient Temperature | -40℃~+90℃ |
Max Conductor Temperature | +120℃ |
Service Life | Expected Service Life Is 25 Years |
Bending Radius | ≥4×φ (D<8mm),≥6×φ (D<8mm) |
Cold bending test | EN60811-1-4 |
Damp Heat Test | EN60068-2-78 |
Sunlight resistance | HD605/A1 |
O-zone resistance at complete cable | EN50396 |
Flame test | EN60332-1-2 |
Smoke density | IEC61034,EN50268-2 |
Content of halogen acid gas | IEC670754-1 EN50267-2-1 |
Specification
Cross Section | Conductor Size | Conductor Stranded OD | Cable OD | DC Resistance | Carrying Capacity | Picking |
mm² | number/mm±0.015 | mm±0.01 | mm±0.01 | Ω/km,20ºC | ≤60ºC | mater/roll |
2x2.5 | 36/0.29 | 1.98 | 5.2x10.8 | 8.21 | 36 | 100/100 |
2x4.0 | 56/0.29 | 2.35 | 5.6x11.5 | 5.09 | 44 | 100/100 |
2x6.0 | 84/0.29 | 3.06 | 6.6x13.5 | 3.39 | 60 | 100/100 |
2x10 | 80/0.4 | 4.60 | 7.8x15.5 | 1.95 | 82 | 100/100 |
Company Profile
PNTECH is a production enterprise on solar PV system components founded in 2011. The Company implements quality management comprehensively as required by GB/T19001-2016/ISO9001:2015 Quality Management System. Its PV cables are produced according to standards 2PfG 1169/08.07, EN50618:2014, IEC 62930:2017, PPP 11029A:2019 and NB/T42073-2016 and PV connectors are produced according to standard EN62852:2015/IEC62852(ed.1) and have acquired certificate of TÜV IEC and CQC.
Meanwhile, the Company has been honored the “star of entrepreneurship” and the enterprise in the cultivation list of
“professional, fine, special, and innovative” of Zhejiang Province, and has been successfully listed in Ningbo Equity Exchange Center (code: 780906). Products of the Company are sold in tens of countries and regions including America, Europe, Southeast Asia, Middle East, Australia and so on.
FAQ
Q1：Where are the photovoltaic cables used ?
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
Q2：How to choose the type and specification of photovoltaic cable ?
A2：Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2（orpv1-f）.
Q3：What is the difference between h1z2z2-k and pv1-f ?
A3：H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4：Which size of cables should I choose ?
A4：4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5：How long is the service life of photovoltaic cable ?
A5：Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6：What other features do photovoltaic cables have ?
A6：Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
