MC4 Connector

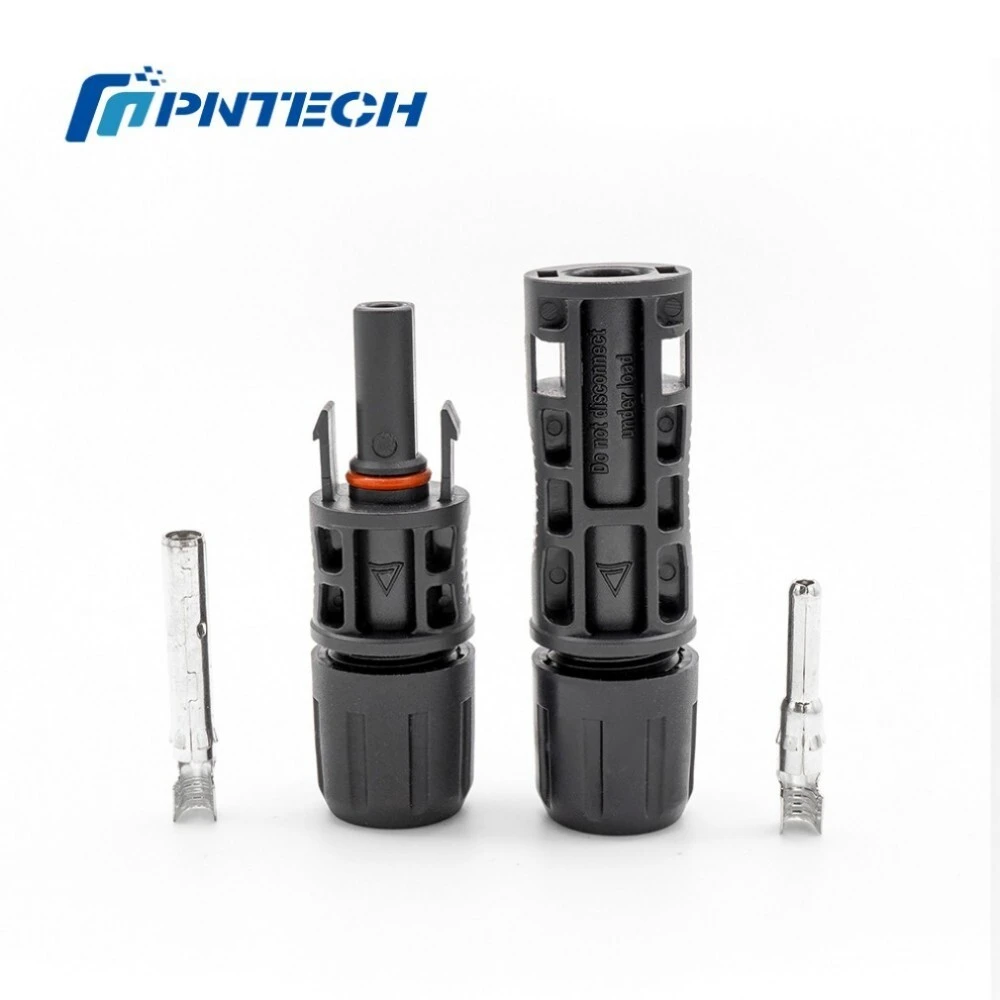

Pntech 1500v Dc Tuv Wire Connector Black Pv Solar Connector Pv005-n For Solar Panel System
5.0
Customization:
Customized logo (Min. Order: 20000 sets),Customized packaging (Min. Order: 20000 sets),Graphic customization (Min. Order: 20000 sets)
Model Number:
PV005-N
Brand Name:
PNTECH
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-500(sets):8(days),501-5000(sets):10(days),5001-50000(sets):12(days),>50000(sets):To be negotiated(days)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Contact resistance
≤0.5mΩ
Upper temperature limit
100℃
Ambient temperature
-40℃~+85℃
Insulation material
PA66
Contact material
Tinned copper
Wire specifications
2mm²,4mm²,6mm²
Rated voltage
1500V DC
Product name
solar pv connector
Gender
Female Male
Rated Current
30A
Application
Power
Type
Adapter
Place of Origin
Zhejiang, China
Protection Degree
IP65/IP68
Why Choose Us
Product Details
Product Description
Product name | solar pv connector |
Wire specifications | 2mm²,4mm²,6mm² |
Rated voltage | 1500V DC |
Rated Current | 30A |
Contact material | Tinned copper |
Insulation material | PA66 |
Protection Degree | IP65/IP68 |
Ambient temperature | -40℃~+85℃ |
Upper temperature limit | 100℃ |
Contact resistance | ≤0.5mΩ |
Flame class | UL94 V-0 |
Type of connection | Crimping |
Locking system | Embedded Locking type |
Withstand voltage test | 8.0KV，1min |
Salt spray test | Degree of severity 6 |
Damp heat test | No damage occurred which could impair normal use |
Assemblability | Insertion force ≤50N, withdrawal force ≥50N |
Connector pulling force | ≥200N |
Warranty period | Twenty-five years |
Packing quantity | 500 sets/box |
Standard | IEC 62852:2014 |
Other Products
Company Profile
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2021,sell to Domestic Market(70.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
DC Solar Cable,Solar PV Connector,Solar Extension Cable,Solar Tool Kits
4. why should you buy from us not from other suppliers?
Founded in 2011 in Ningbo, China, PNTECH is one the leading suppliers for solar cables, solar connectors of the highest level of
quality. At PNTECH, we strive to meet 100% of our customer requirements and deliver quality products on time through contine.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2021,sell to Domestic Market(70.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
DC Solar Cable,Solar PV Connector,Solar Extension Cable,Solar Tool Kits
4. why should you buy from us not from other suppliers?
Founded in 2011 in Ningbo, China, PNTECH is one the leading suppliers for solar cables, solar connectors of the highest level of
quality. At PNTECH, we strive to meet 100% of our customer requirements and deliver quality products on time through contine.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:English,Chinese
