Pv Cable Price EN60811-504 AC:Uo/U=1.0/1.0KV DC:1.5KVquality Assurance
Product details of the pv cable price
Product Specification
Rated Voltage: AC:Uo/U=1.0/1.0KV DC:1.5KV
Transport Package: Drum or Roll
Conductor Material: Oxygen-free Tinned Copper Wire
Application: Power Station
Cold Bending Test: EN60811-504
Product Introduction
The appealing design of PNTECH pv cable price allows customers to enjoy the aesthetics. The quality of this product is effectively controlled by implementing the quality control system. Paying close to the quality of pv cable price will help better improve the customer satisfication.

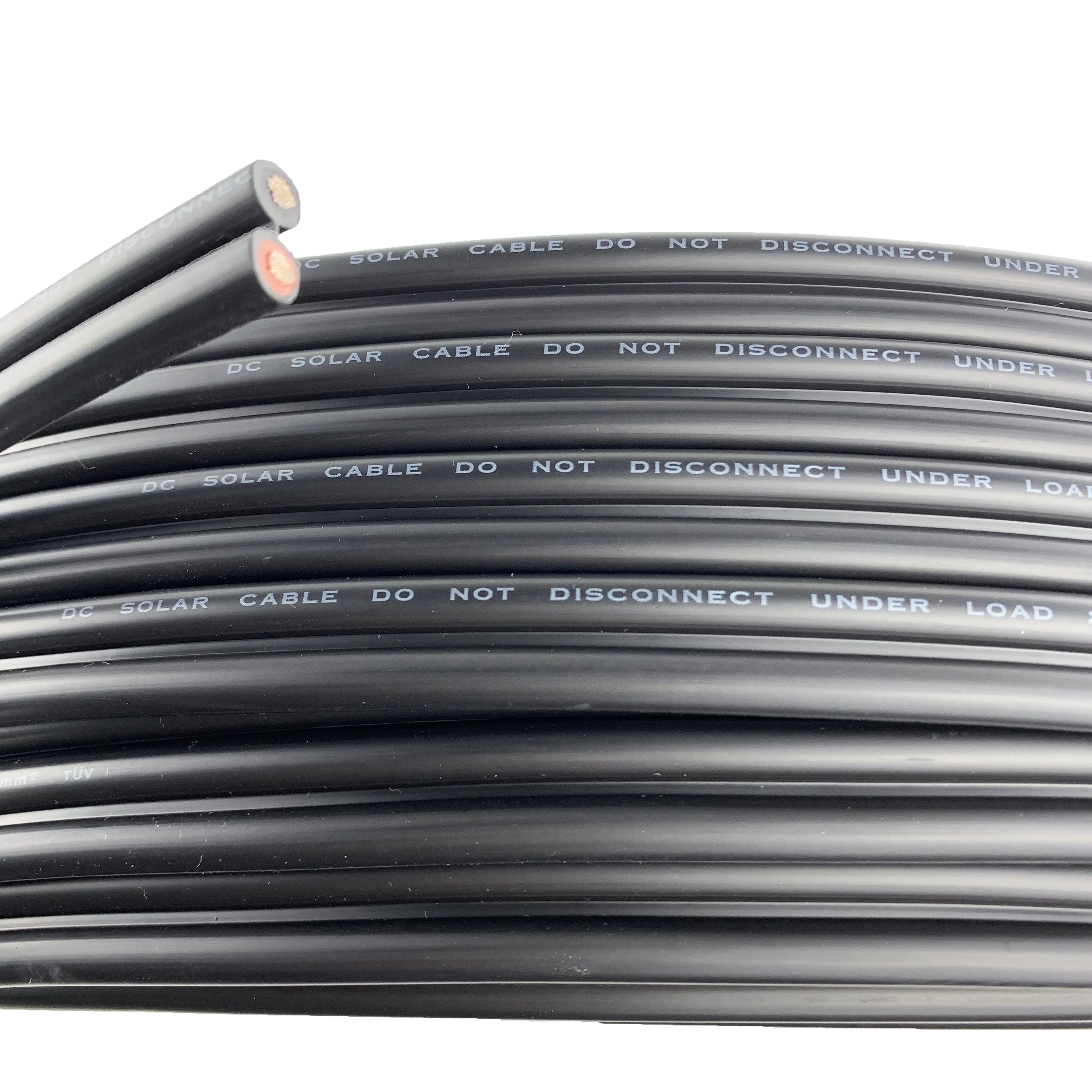

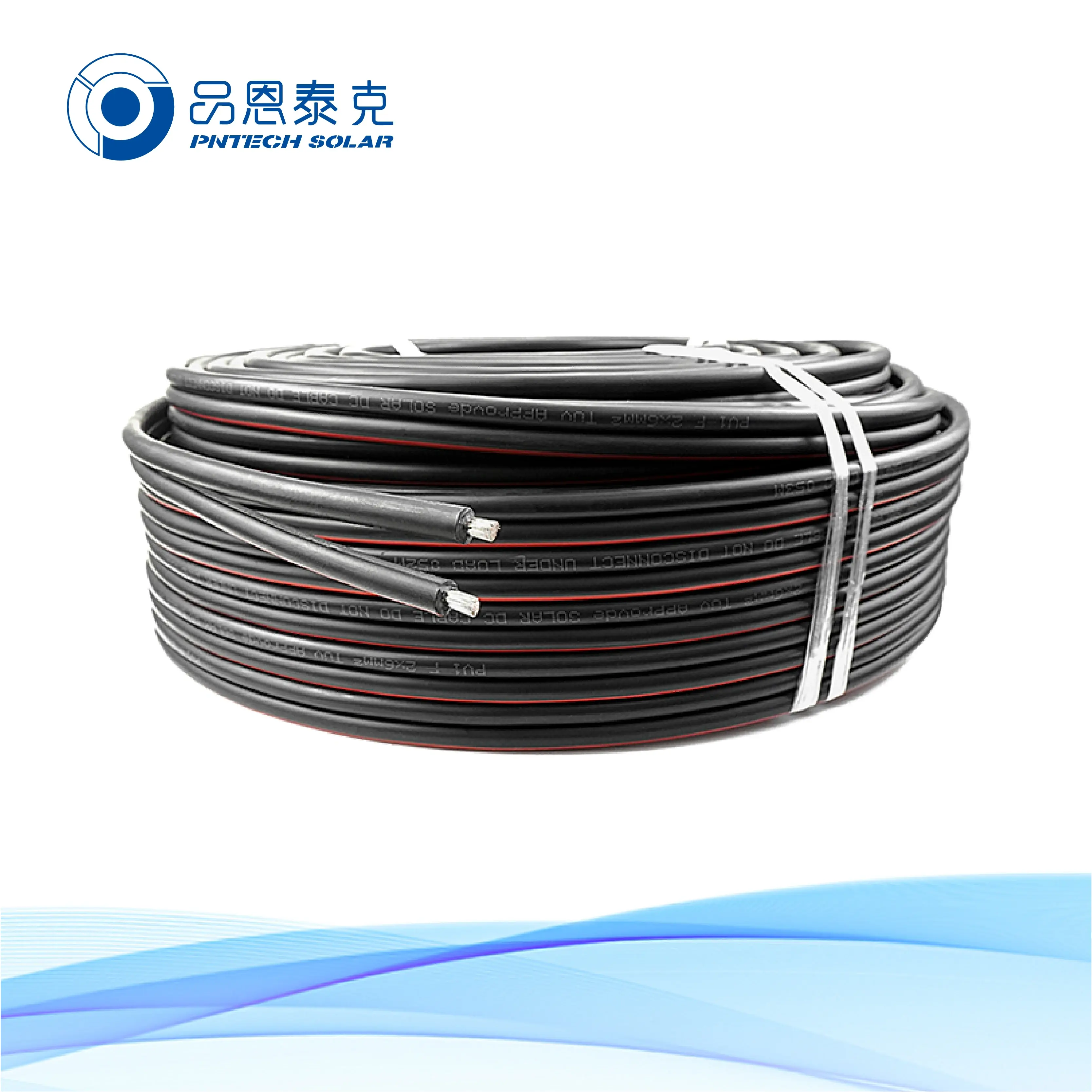

Product Name | DC Solar PV Cable |
Origin | China |

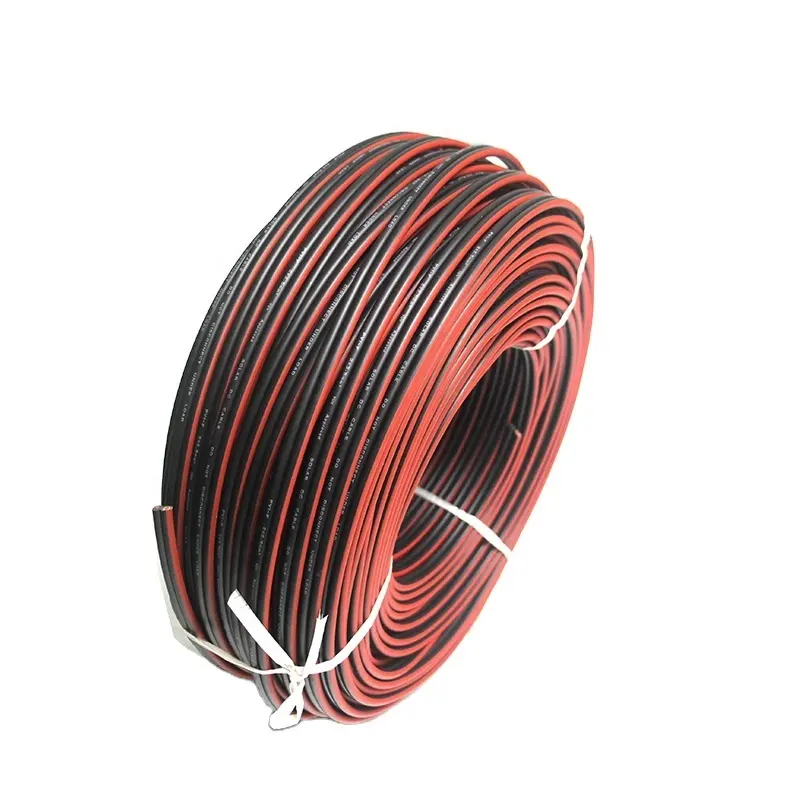

Color | Black and Red or Customized |
Specification | 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2 |

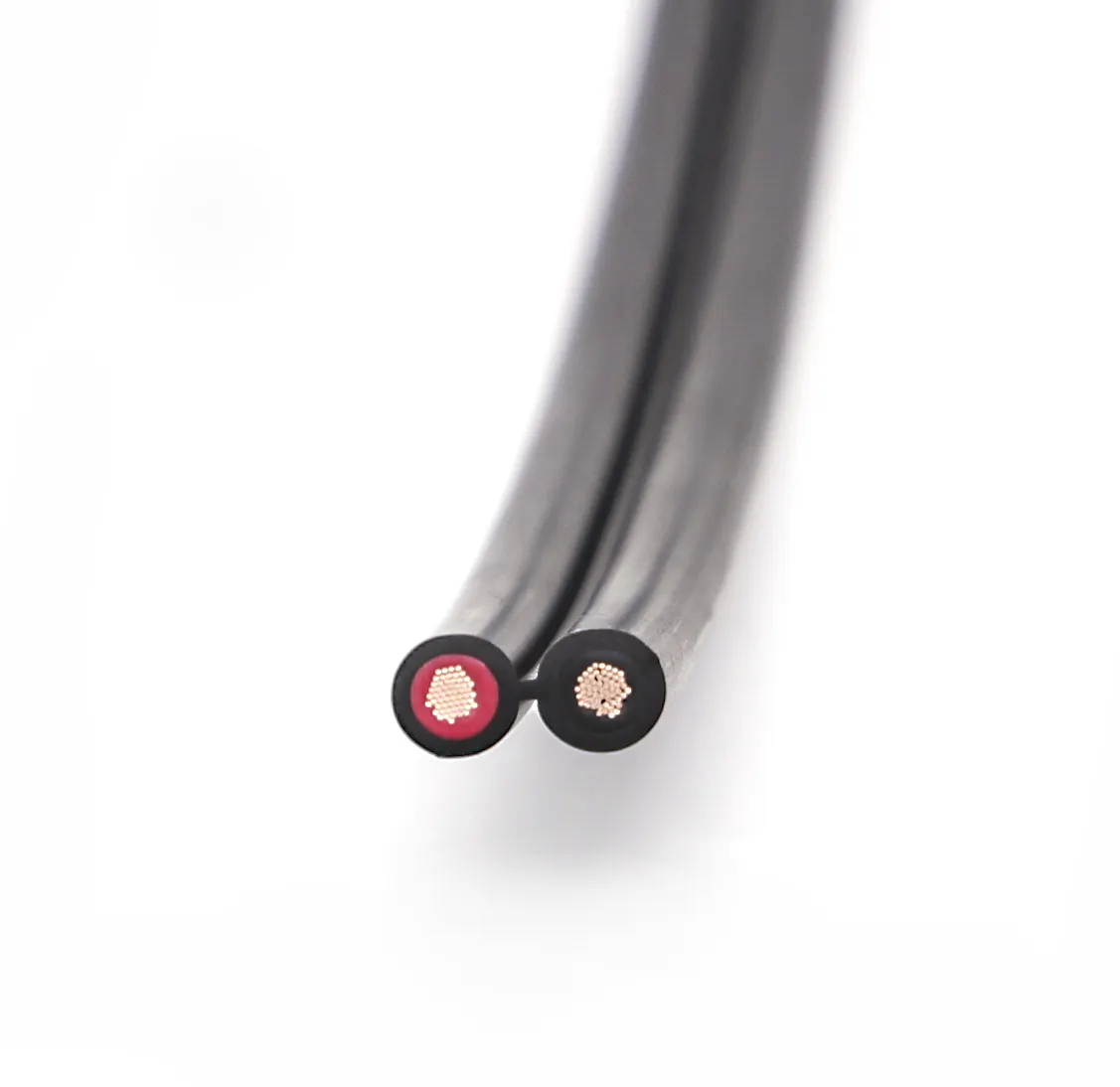

Number of Cores | Twins Core |
Transport Package | Drum or Roll |

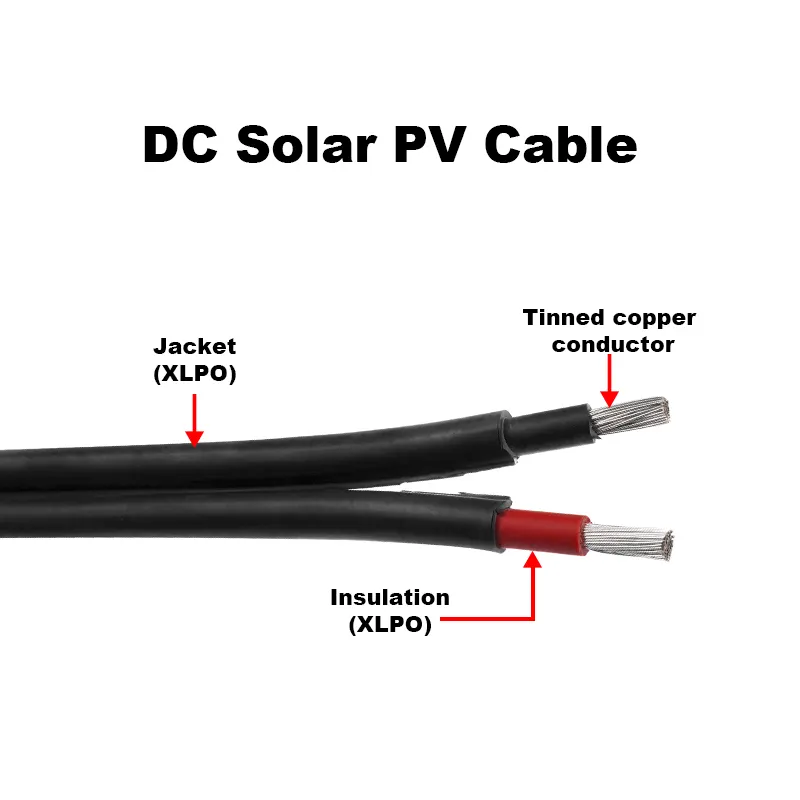

Conductor | Oxygen-free Tinned Copper Wire |
Insulating Layer | 125℃XLPO |
Sheath Layer | 125℃ XLPO |
Special Process | lirradiated Cross-linked |
Rated Voltage | AC:Uo/U=1.0/1.0KV DC:1.5KV |
Ambient Temperature | -40℃~+90℃ |
Max Conductor Temperature | +120℃ |
Service Life | >25 Years(-40℃~+90℃) |
Bending Radius | ≥4×D (D<8mm),≥6×D (D≥8mm) |
Cold bending test | EN60811-504 |
Damp Heat Test | EN60068-2-78 |
Weathering/UV-resistance | IEC 62930 |
Ozone resistance | EN60811-403 |
Ageing properties | EN60811-401 |
Smoke density | IEC61034,EN50268-2 |
Content of halogen acid gas | IEC670754-1 EN50267-2-1 |
Test under fire condition | EN60332-1-2 |
Thermal endurance properties | IEC60216-1 |
Resistance against acid and alkaline solution | EN60811-404 |
Cross Section | Conductor construction | Conductor Stranded | Cable OD | DC Resistance | Carrying Capacity | Picking |
mm² | number/mm±0.015 | mm±0.02 | mm±0.02 | Ω/km,20ºC | ≤60ºC | mater/roll |
2x2.5 | 36x0.285 | 2.0 | 5.1x10.5 | 8.21 | 36 | 100/100 |
2x4.0 | 56x0.285 | 2.4 | 5.5x11.5 | 5.09 | 44 | 100/100 |
2x6.0 | 84x0.285 | 3.0 | 6.5x13.6 | 3.39 | 60 | 100/100 |
2x10 | 80x0.39 | 4.0 | 7.5x15.4 | 1.95 | 82 | 100/100 |
Meanwhile, the Company has been honored the “star of entrepreneurship” and the enterprise in the cultivation list of
“professional, fine, special, and innovative” of Zhejiang Province, and has been successfully listed in Ningbo Equity Exchange Center (code: 780906). Products of the Company are sold in tens of countries and regions including America, Europe, Southeast Asia, Middle East, Australia and so on.
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
Q2：How to choose the type and specification of photovoltaic cable ?
A2：Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2（orpv1-f）.
Q3：What is the difference between h1z2z2-k and pv1-f ?
A3：H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4：Which size of cables should I choose ?
A4：4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5：How long is the service life of photovoltaic cable ?
A5：Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6：What other features do photovoltaic cables have ?
A6：Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
