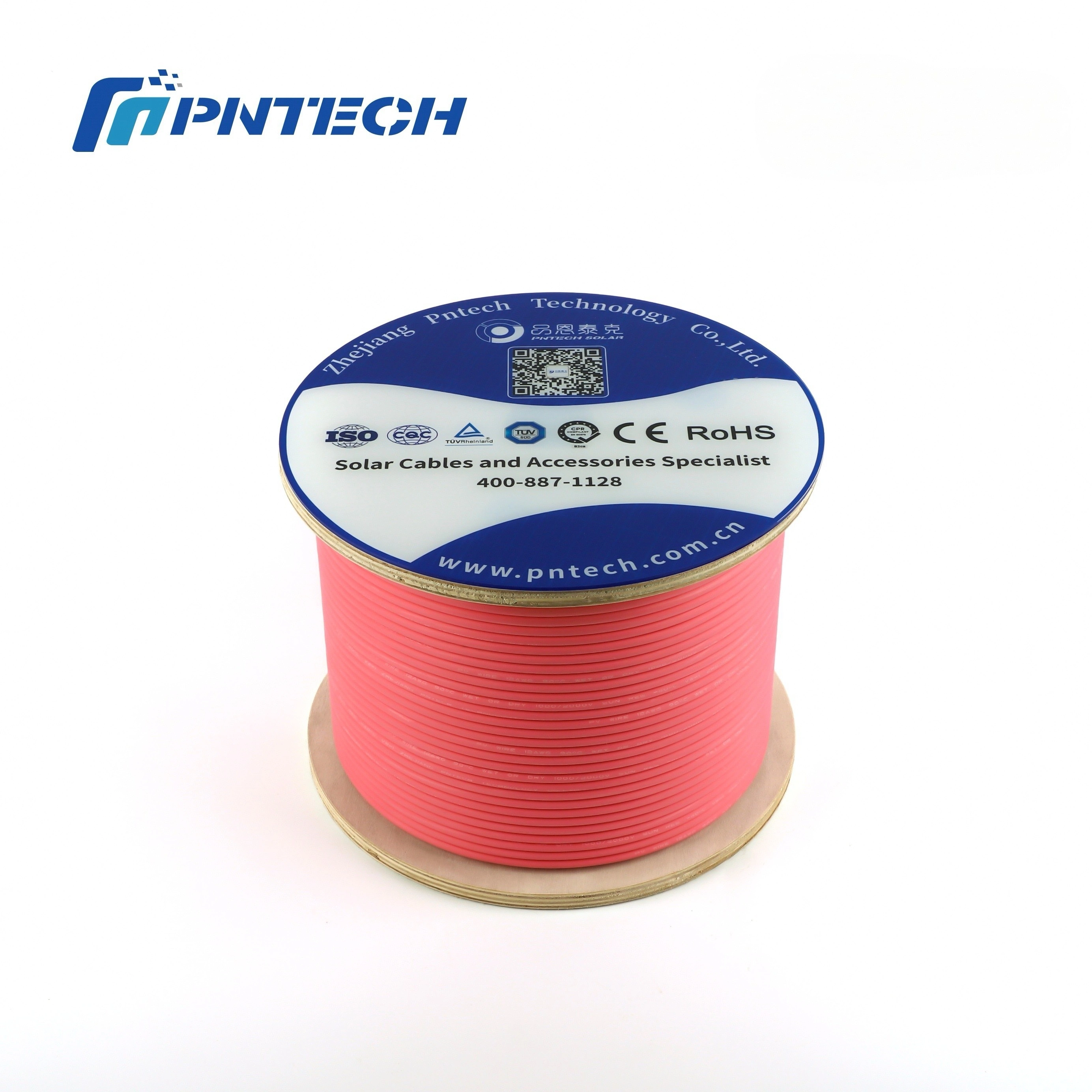

Hot Sales Power Station Application Cable Tinned Copper Stranded Pv Wire 14 Awg Ul Approved For Solar Panels
5.0
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Model Number:
PV Wire 14 awg
Brand Name:
PNTECH
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000(meters):8(days),1001-5000(meters):10(days),5001-10000(meters):12(days),>10000(meters):To be negotiated(days)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Sunlight resistance
UL2556
Working Temperature
90°C
Max Temperature at conductor
+120℃
Cold bending test
UL854
Voltage test on completed cable
AC:6.5KV DC:15KV,5min
Rated voltage
AC:Uo/U=1.0/1.0KV DC:1.5KV
Jacket
XLPO
Conductor Material
Oxygen-free Tinned Copper Wire
Application
Power Station
Type
solar pv cable
Insulation Material
XLPO
Place of Origin
Zhejiang, China
Certificate
UL
Service Life
25 years(-40℃~+90℃)
Ambient Temperature
-40℃~+90℃
Product Description
Product name | DC Solar PV Cable |
Origin | China |
Color | Black , Pink , Or Customized |
Specification | 2.0mm2, 4.0mm2, 6.0mm2, 8.0mm2, 10.0mm2, 12.0mm2, 14.0mm2, 16.0mm2 |
Number of Cores | Single Core |
Transport Package | Drum or Roll |
Rated voltage | U=1.0KV / 2.0KVAC |
Voltage test on completed cable | U=1.0KV , 2.0KV 18~10AWG , Uo=6.0KV , 50HZ , 1min 8~2AWG , Uo=7.5KV , 50HZ , 1min |
Ambient Temperature | -40℃~+90℃ |
Max Temperature at conductor | +120℃ |
Conductor | Oxygen-free Tinned copper |
Sheath | XLPO |
Insulation | XLPO |
Certificate | UL |
Flame test | UL1581 VW-1 |
Relative permittivity | UL854 |
Stability factor | UL854 |
Sunlight resistance | UL2556 |
Cold bending test | UL854 |
Specification
AWG | Conductor Construction | Nominal Area | 1000V and 2000V Cable OD | Conductor MAX. Resistance AT 20℃（Ω/km） |
Φn/mm±0.02 | Φmm±0.02 | |||
16 | 18x0.29 | 1.31 | 5 | 14.6 |
14 | 32x0.29 | 2.08 | 5.7 | 8.96 |
12 | 48x0.29 | 3.31 | 6.3 | 5.64 |
10 | 78x0.29 | 5.261 | 6.8 | 3.546 |
8 | 68x0.38 | 8.367 | 7.8 | 2.23 |
6 | 116x0.38 | 13.3 | 8.8 | 1.403 |
4 | 180x0.38 | 21.15 | 10.1 | 0.882 |
2 | 260x0.39 | 33.62 | 12.5 | 0.5548 |
Other Products
Packaging & Product Case
Our Advantages
1.PNTECH have 10 years of development
2.Complete certificates
3.Customer Satisfaction
4.Complete equipment,5 professional solar photovoltaic production lines and related supporting equipment
5.Attended various exhibitions at home and abroad for many times
6.The laboratory is fully equipped to ensure production
7.Diversified distribution, sufficient inventory and timely delivery
FAQ
Q1：Where are the photovoltaic cables used ?
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
Q2：How to choose the type and specification of photovoltaic cable ?
A2：Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2（orpv1-f）.
Q3：What is the difference between h1z2z2-k and pv1-f ?
A3：H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4：Which size of cables should I choose ?
A4：4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5：How long is the service life of photovoltaic cable ?
A5：Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6：What other features do photovoltaic cables have ?
A6：Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
