single core solar cable

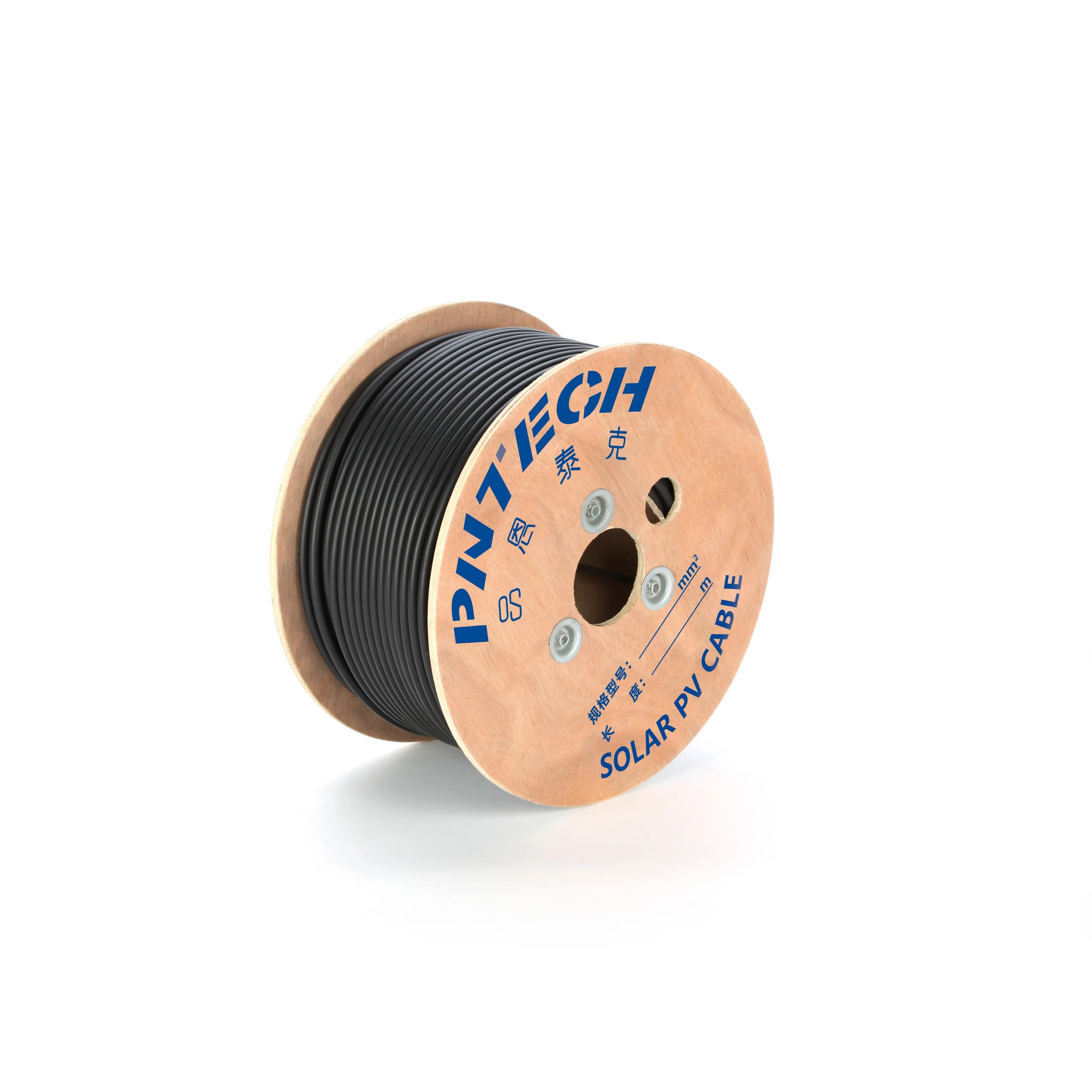

H1Z2Z2-K XLPO single core 1500V DC Solar PV Cable
The H1Z2Z2-K solar cable is a novel device that provides exceptional durability and dependability, making it an excellent choice for solar power systems. With a focus on durability and dependability, this cable is built to survive the worst climatic conditions, providing long-term performance and peace of mind for solar energy systems.
Application scenarios: Self built houses in rural areas; Array power station; BIPV building integration;Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Specification
| PRODUCT NAME | H1Z2Z2-K | DOCUMEN NO | PNTK-H1-003 | ||||
| SIZE | 1 ×4mm² | ||||||
| SECTIONAL DRAWING | |||||||
| STANDARD BASIS | EN50618:2014 | ||||||
| MARKING | PNTECH TUV EN50618:2014 H1Z2Z2-K 1 ×4mm² AC1.0/1.0KV DC1.5KV ZHEJIANG PNTECH TECHNOLOGY CO.,LTD. |
||||||
| CONDUCTOR | MATERIAL | (Tinned plated copper) | |||||
| CONSTRUCTION(N/mm) | TS 56/0.285±0.015 | ||||||
| DIA(mm) | 2.4 | ||||||
| INSULATION | MATERIAL | (XLPO) | |||||
| OVER DIAMEREDR(mm) | 3.8±0.1 | ||||||
| AVG. THICK(mm) | ≥0.7 | ||||||
| MIN. THICK(mm) | ≥0.53 | ||||||
| COLOR | Upon customer's request | ||||||
| SHEATH | MATERIAL | (XLPO) | |||||
| OVER DIAMEREDR(mm) | 5.6±0.2 | ||||||
| AVG. THICK(mm) | ≥0.8 | ||||||
| MIN. THICK(mm) | ≥0.58 | ||||||
| COLOR | Upon customer's request | ||||||
| ELECTRICAL PERFORMANCE |
RATED VOLTAGE(V) | AC1.0/1.0KV DC1.5KV | |||||
| RATED TEMP(℃) | -40℃-90℃ | ||||||
| COND. RESISTANCE(Ω/km,20℃) | ≤5.09 | ||||||
| INSU. RESISTANCE (M Ω.km，20℃) | ≥580 | ||||||
| VOITAGE WITH STAND TEST | AC6.5KV&DC15KV,5min | ||||||
| SPARK ELECTROMECHANICAL VOLTAGE (KV) | 7 | ||||||
| SHORT-CIRCUIT TEMPERATURE | ≤200℃/5s | ||||||
| PHYSICAL PROPERTY OF INSULATION |
MIN TENSILE STRENGTH(N/mm²) | ≥8.0 | |||||
| MIN BREAK ELONGATION RATE(％) | ≥125 | ||||||
| FLAME TEST | EN60332-1-2 | ||||||
| THEORETICAL SERVICE LIFE年) | 25 | ||||||
| ENVIRON MENT PROECTION | ROHS2.0 | ||||||
| Packing specification | Packing quantity: 100m, 250m, 500m, 1000m, 2500m, 5000m | ||||||
Product Details
Quality Tinned copper
Tin plating process,oxidation resistant, not easy to rust, good conductivity, 99.98% pure copper, low resistance, can reduce the power loss in the current conduction process.
Sheathing Material
The insulation adopts low smoke halogen free irradiated cross-linked polyolefin (XLPO), which is fire retardant,high and low temperature resistant,UVresistance, corrosion resistance, long service life.
Brand Printing
PNTECH logo is printed on the line, with clear printing,Buying a brand is more guaranteed.
Products Features
SUFFICIENT CORE SUFFICIENT METERS
PURE OXYGEN FREE COPPER CORE
HIGH AND LOW TEMPERATURE RESISTANCE
ANTIOXIDANTS
ECCENTRICITY IS LOW
ENVIRONMENTAL PROTECTION
FAQ
1
Which size of cables should I choose ?
4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
2
Where are the photovoltaic cables used ?
Photovoltaic cables are used to connect solar cell modules and inverters.
3
How long is the service life of photovoltaic cable?
Without additional protection, it can be used for more than 25 years in outdoor ventilation and dry conditions.
