Solar Extension Cable

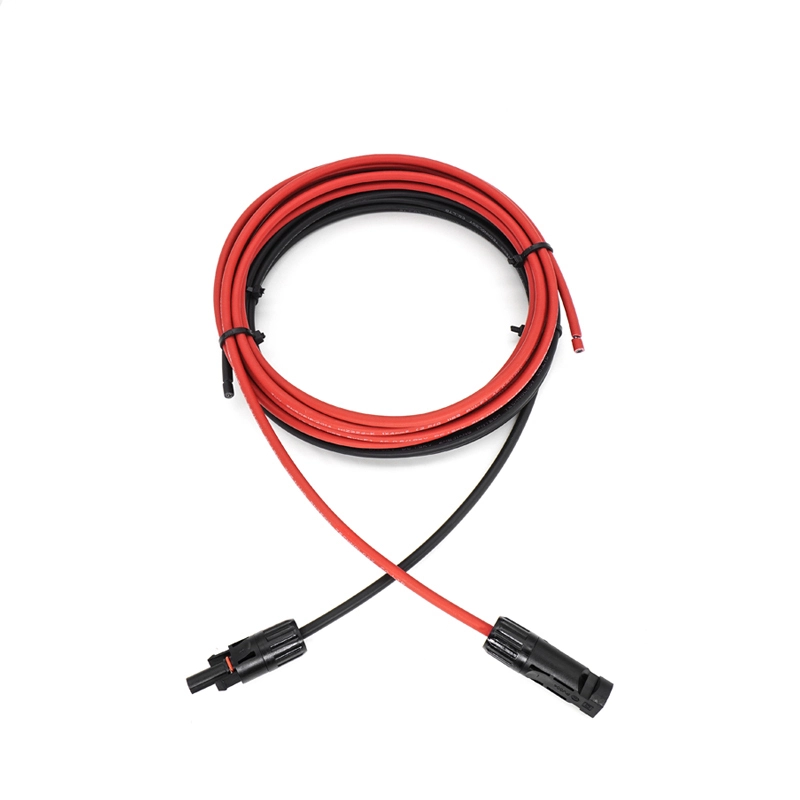

DC-00 Single end 1000V/1500V DC Solar PV Extension Cable
5.0
Cable Length:
Customized
Cable specifications:
2.5/4/6/10mm2
Flame Class:
UL94 V-0
Insulation Material:
PC EXL9330/XLPO
Ambient temperature:
-40℃-+85℃
Contact Resistance:
Tinned copper
Contact material:
≤0.5mΩ
Rated Current:
30A
Rated Voltage:
DC-00 1000V/1500V
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| STYLE | Photovoltaic extension cable |
DOCUMEN NO | PNTK-D0-001 | |||
| SIZE | DC-00 | |||||
| CONSTRUCTION FIGURE |
||||||
| STANDARD BASIS UL6703＆UL4703 | ||||||
| Match wire specifications | 14AWG，12AWG，10AWG，8AWG | |||||
| Rated voltage | DC 1000V/1500V | |||||
| Rated current | 30A | |||||
| Connector type | PV004/PV005 | |||||
| Photovoltaic cable type | PV WIRE | |||||
| Photovoltaic cable color | Positive red, negative black | |||||
| Degree of protection | IP65/IP68 | |||||
| Ambient temperature range | -40℃~+85℃ | |||||
| Upper temperature limit | 100℃ | |||||
| Connector contact resistance | ≤0.5m Ω | |||||
| Withstand voltage test | 6.0/8.0KV，1min | |||||
| Flame class | UL94-V0 | |||||
| compatibility | Compatible with MC4 connectors | |||||
| Salt spray test | Degree of severity 6 | |||||
| Damp heat test | No damage occurred which could impair normal use | |||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | |||||
| Connector pulling force | ≥200N | |||||
| Warranty period | Twenty-five years | |||||
| Length | Customized according to customer requirements | |||||
| Packing quantity | According to customer requirements | |||||
Product Details
Quality tinned copper
Tin plating process, oxidation resistance, good conductivity, 99.98% pure copper, low resis-tance.
High quality connector
PC EXL9330C material, tinned copper inner core, flame retardant, high and low temperature resistant, UV resistant.
High quality insulation
The cable is XLPO, flame retardant,high and low temperature resistant,UV resistance and corrosion resistance
Brand printing
PNTECH logo is printed on the line,with clear printing,Buying a brandis more guaranteed.
Products Features
RESISTANCE
Low Resistance Value
FLAME RETARDANT
Flame Retardant material
ENVIRONMENT
High and low temperature resistant
OXIDATIVE
Antioxidants
INSTALL
Easy Installation
MATERIAL
Environmental Protection
FAQ
1
Which size of cables should I choose ?
4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
2
Where are the photovoltaic cables used?
Photovoltaic cables are used to connect solar cell modules and inverters.
3
How long is the service life of photovoltaic cable?
Without additional protection, it can be used for more than 25 years in outdoor ventilation and dry conditions.
