Grounding Cable

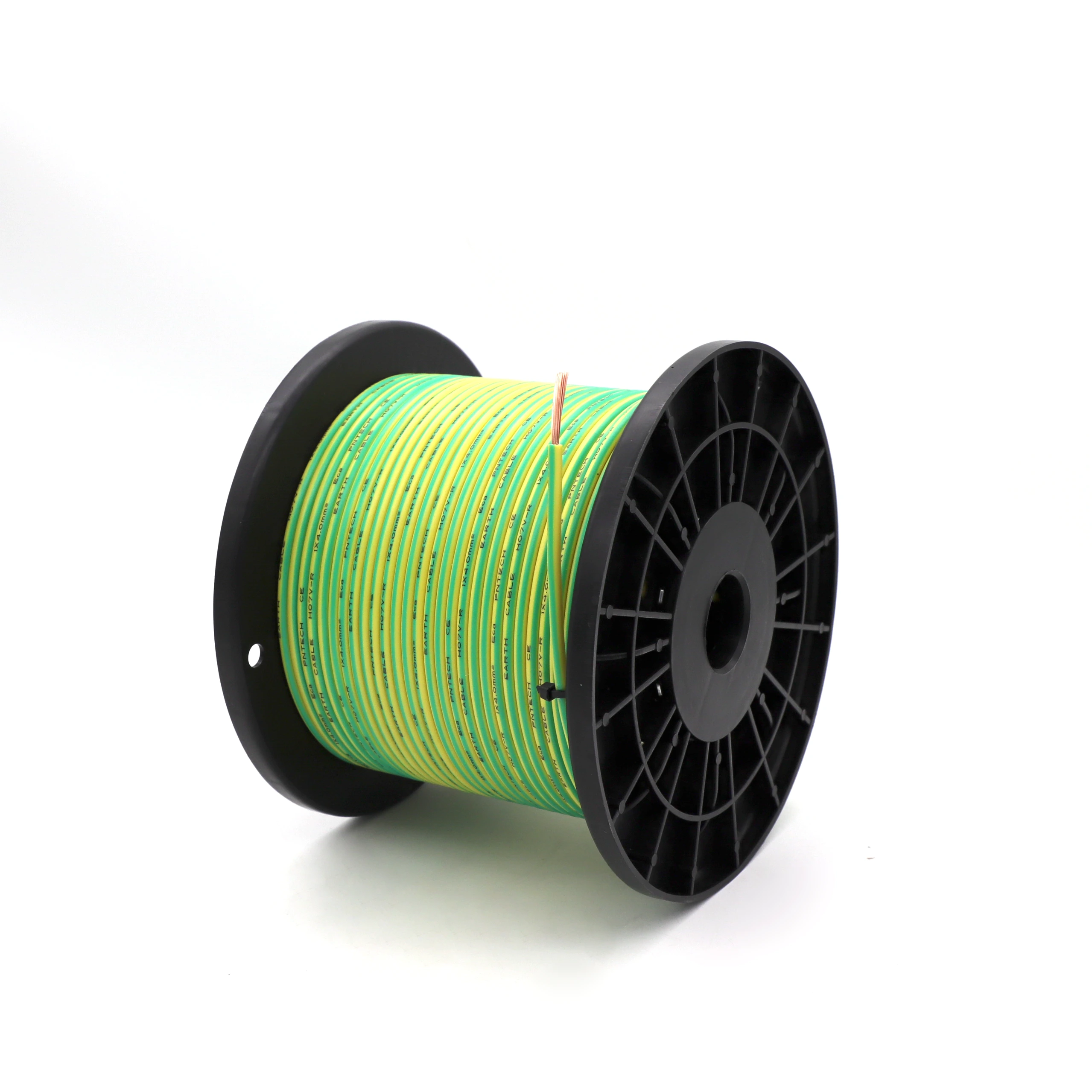

BVR PVC Oxygen-Free Copper Grounding Wire Earth Cable
The Yellow-Green Ground Wire is a premium solar wiring solution that offers superior safety and reliability. Its distinctive color makes it easy to identify and ensures proper grounding in various solar installations.
Grounding yellow and green wire
Conductor:Oxygen-free copper
Sheath:PVC
Rated Voltage:450/750V
Contact Resistance:≤0.5mΩ
Ambient Temperature:-15℃-+70℃
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| PRODUCT NAME | BVR | DOCUMEN NO | PNTK-BVR-001 | |||
| SIZE | 1 ×4mm² | |||||
| SECTIONAL DRAWING | ||||||
| STANDARD BASISJB/T 8734.2-2016 | ||||||
| CONDUCTOR | MATERIAL | (Copper) | ||||
| CONSTRUCTION (N/mm) | 48/0.3±0.02AS | |||||
| DIA (mm) | 2.5 | |||||
| INSULATION | MATERIAL | （PVC） | ||||
| OVER DIAMEREDR (mm) | 4.2±0.2 | |||||
| AVG. THICK (mm) | ≥0.8 | |||||
| MIN. THICK (mm) | ≥0.62 | |||||
| COLOR | Upon customer's request | |||||
| SHEATH | MATERIAL | / | ||||
| OVER DIAMEREDR (mm) | / | |||||
| AVG. THICK (mm) | / | |||||
| MIN. THICK (mm) | / | |||||
| COLOR | Upon customer's request | |||||
| ELECTRICAL PERFORMANCE |
RATED VOLTAGE (V) | 450/750V | ||||
| RATED TEMP (℃) | 70℃ | |||||
| COND. RESISTANCE (Ω/km,20℃) | ≤4.61 | |||||
| INSU. RESISTANCE (M Ω.km，70℃) | ≥0.0079 | |||||
| VOITAGE WITH STAND TEST | 2.0KV,5min | |||||
| SPARK ELECTROMECHANICAL VOLTAGE (KV) | 7 | |||||
| PHYSICAL PROPERTY OF INSULATION |
MIN TENSILE STRENGTH (N/mm²) | ≥12.5 | ||||
| MIN BREAK ELONGATION RATE (％) | ≥125 | |||||
| FLAME TEST | ||||||
| THEORETICAL SERVICE LIFE | 25 | |||||
| ENVIRON MENT PROECTION | ROHS | |||||
| Packing specification |
Packing quantity: 100米，500米 | |||||
Product Details
Quality copper
High quality copper is selected, which is resistant to oxidation, has stable conductivity, good heat dissipation and is safer.
Specifications
2.5mm²,4mm²,6mm² Any terminal aperture and line length can be customized.
Flexible PVC
The insulation has good flame retardancy,high strength bendingTensile force, shock resistance and other characteristics.
BVR Two-color line
Excellent BVR yellow green double color line, uniform and smooth,Color saturation without color difference.
Products Features
RESISTANCE
Low Resistance Value
FLAME RETARDANT
Flame Retardant material
ENVIRONMENT
High and low temperature resistant
OXIDATIVE
Antioxidants
INSTALL
Easy Installation
MATERIAL
Environmental Protection
FAQ
1
Which size of cables should I choose ?
4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
2
Where are the photovoltaic cables used?
Photovoltaic cables are used to connect solar cell modules and inverters.
3
How long is the service life of photovoltaic cable?
Without additional protection, it can be used for more than 25 years in outdoor ventilation and dry conditions.
