single core solar cable

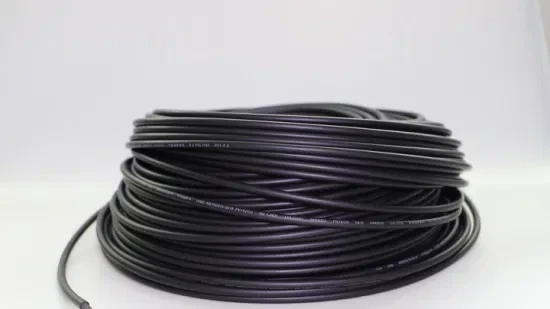

Single core solar pv cable H1Z2Z2-K 1*4mm2
ENH1Z2Z2-K 1*4mm2
5.0
Insulation Material:
XLPO
Ambient temperature:
-40°C~+90°C
Brand Name:
PNTECH
Certification:
TUV
Rated Current:
44A
Rated Voltage:
AC:1.0/1.0KV:1.5KV
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Brand:
Pntech
Insulating Material:
XLPO
Sheath Material:
XLPO
Material Shape:
Round Wire
Application:
Power Station
Model NO.:
H1Z2Z2-K 1x4mm2
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Sheath Material
Xlpo
Conductor Type
Oxygen-Free Tinned Copper
Insulating Material
Xlpo
HS Code
8544492100
Origin
China
Trademark
PNTECH
Transport Package
Drum or Roll
Wire Core Material
Oxygen-Free Tinned Copper
Certification
TUV
Product Description
Product Description
| Product Name | DC Solar PV Cable |
| Origin | China |
| Certification | TUV |
| Color | Black /Red |
| Specification | 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2, 16.0mm2, 25.0mm2, 35.0mm2 |
| Number of Cores | Single Core |
| Rated voltage | AC Uo/U 1.0/1.0KV,DC:1.5KV |
| Voltage test on completed cable | AC:6.5KV/5min,DC:15KV/5min |
| Ambient Temperature | -40ºC~+90ºC |
| Contact Materials | Oxygen-Free Tinned copper |
| Insulation Material | XLPO |
| Sheath | XLPO |
| Pressure Test At High Temperature | EN50395 |
| Damp Heat Test | EN60068-2-78 |
| ACID and Alkali resistance | EN60811-404 |
| Ozone resistance | EN60811-403 |
| Ageing properties | EN60811-401 |
| Cold bending test | EN60811-504 |
| Weathering /UV-resistance | EN50618 |
| Test under fire condition | EN60332-1-2 |
Specification
| Cross Section (mm²) | Conductor construction (Φn/mm±0.015) | Conductor Stranded (Φmm±0.02) | Cable OD (Φmm±0.2) | Conductor DC Resistance (Ω/km) | Current carring Capacity (AT 60ºC(A)) | Picking (mater/roll) |
| 1x1.5 | 22x0.29 | 1.5 | 4.6 | 13.7 | 25 | 250 |
| 1x2.5 | 36x0.29 | 2.0 | 5.1 | 8.21 | 36 | 100/250/500 |
| 1x4 | 56x0.29 | 2.4 | 5.7 | 5.09 | 44 | 100/250/500/5000 |
| 1x6 | 84x0.29 | 3.0 | 6.5 | 3.39 | 60 | 100/200 |
| 1x10 | 80x0.395 | 4.0 | 7.5 | 1.95 | 82 | 100 |
| 1x16 | 120x0.395 | 5.0 | 8.9 | 1.24 | 122 | 100 |
| 1x25 | 196x0.395 | 6.3 | 11 | 0.795 | 160 | 100 |
| 1x35 | 276x0.395 | 7.4 | 12.2 | 0.565 | 200 | 100 |
Company Profile
FAQ
Q1:Where are the photovoltaic cables used ?
A1:Photovoltaic cables are used to connect solar cell modules and inverters.
A1:Photovoltaic cables are used to connect solar cell modules and inverters.
Q2:How to choose the type and specification of photovoltaic cable ?
A2:Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2(orpv1-f).
Q3:What is the difference between h1z2z2-k and pv1-f ?
A3:H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4:Which size of cables should I choose ?
A4:4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5:How long is the service life of photovoltaic cable ?
A5:Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6:What other features do photovoltaic cables have ?
A6:Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
