Aluminum Alloy Cable

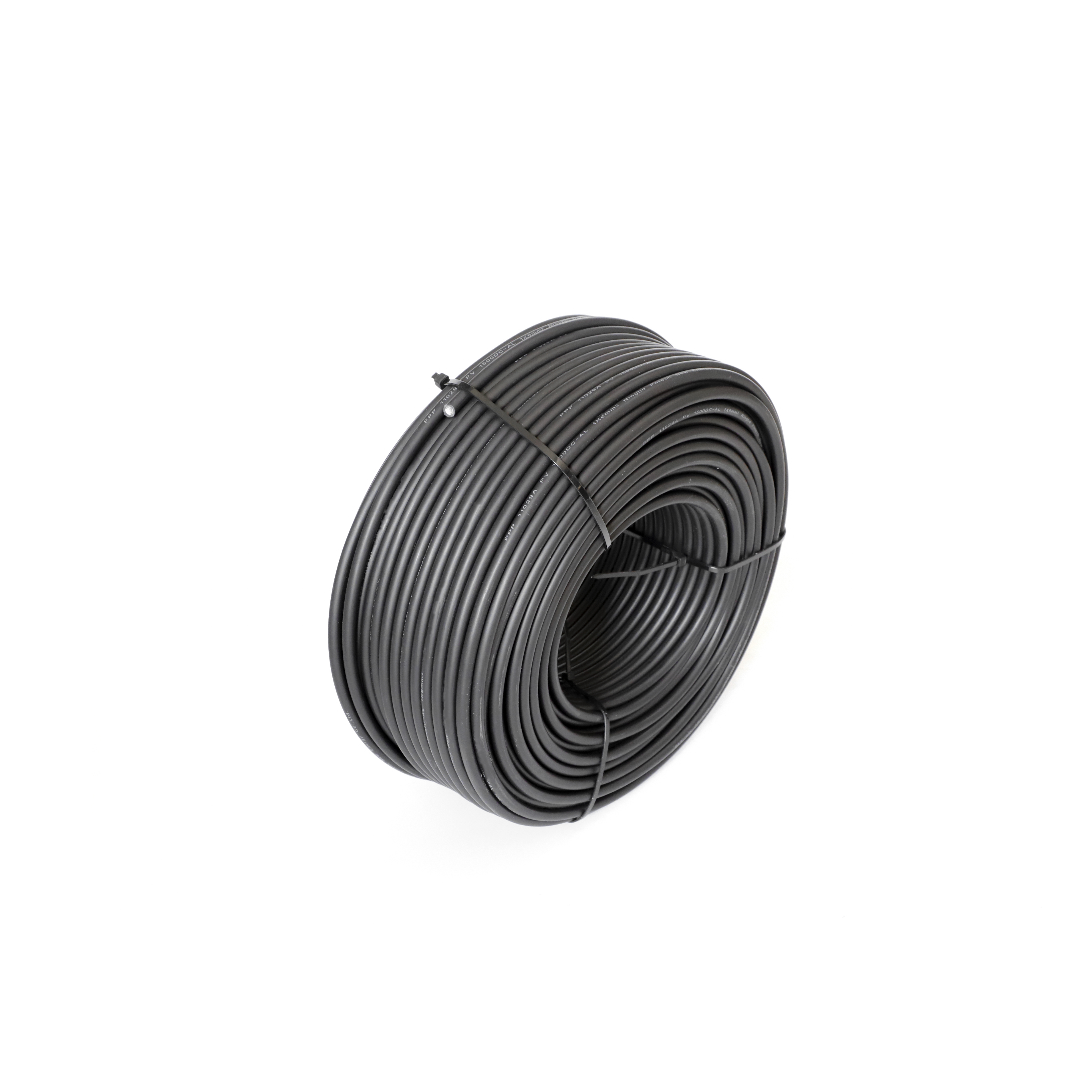

TUV PPP Photovoltaic Aluminum Alloy Solar PV Cable
As the demand for sustainable energy solutions continues to grow, the importance of reliable and durable components for solar projects cannot be overstated. One such crucial component is the solar photovoltaic aluminum alloy cable, which plays a vital role in ensuring the efficient and safe operation of solar installations.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| PRODUCT NAME | PPP11029A | DOCUMEN NO | PNTK-PP-001 | |||
| SIZE | 1 ×4mm² | |||||
| SECTIONAL DRAWING | ||||||
| STANDARD BASIS EN50618:2014 | ||||||
| MARKING | PPP 11029A PV 1.5KVDC-AL 1 ×4mm² ZHEJIANG PNTECH TECHNOLOGY CO.,LTD. |
|||||
| CONDUCTOR | MATERIAL | (Aluminium alloy) | ||||
| CONSTRUCTION (N/mm) | TS 56/0.3±0.015 | |||||
| DIA (mm) | 2.6 | |||||
| INSULATION | MATERIAL | (XLPO) | ||||
| OVER DIAMEREDR (mm) | 4.5±0.1 | |||||
| AVG. THICK (mm) | ≥0.7 | |||||
| MIN. THICK (mm) | ≥0.53 | |||||
| COLOR | Upon customer's request | |||||
| SHEATH | MATERIAL | (XLPO) | ||||
| OVER DIAMEREDR (mm) | 6.6±0.2 | |||||
| AVG. THICK (mm) | ≥0.8 | |||||
| MIN. THICK (mm) | ≥0.58 | |||||
| COLOR | Upon customer's request | |||||
| ELECTRICAL PERFORMANCE |
RATED VOLTAGE (V) | DC1.5KV | ||||
| RATED TEMP (℃) | -40℃-90℃ | |||||
| COND. RESISTANCE (Ω/km,20℃) | ≤7.85 | |||||
| INSU. RESISTANCE (M Ω.km，20℃) | ≥709 | |||||
| VOITAGE WITH STAND TEST | AC6.5KV or DC15KV,5min | |||||
| SPARK ELECTROMECHANICAL VOLTAGE KV) | 7 | |||||
| SHORT-CIRCUIT TEMPERATURE | ≤200℃/5s | |||||
| PHYSICAL PROPERTY OF INSULATION |
MIN TENSILE STRENGTH (N/mm²) | ≥8.0 | ||||
| MIN BREAK ELONGATION RATE (％) | ≥125 | |||||
| FLAME TEST | EN60332-1-2 | |||||
| THEORETICAL SERVICE LIFE | 25 | |||||
| ENVIRON MENT PROECTION | ROHS2.0 | |||||
| Packing specification |
Packing quantity: 100m,500m | |||||
Product Details
Sheathing Material
The insulation adopts low smoke halogen free irradiated cross-linked polyolefin (XLPO), which is fire retardant,high and low temperature resistant,UVresistance, corrosion resistance, long service life.
Brand Printing
PNTECH logo is printed on the line, with clear printing,Buying a brand is more guaranteed.
Products Features
RESISTANCE
Low Resistance Value
FLAME RETARDANT
Flame Retardant material
ENVIRONMENT
High and low temperature resistant
OXIDATIVE
Antioxidants
INSTALL
Easy Installation
MATERIAL
Environmental Protection
FAQ
1
Which size of cables should I choose ?
4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
2
Where are the photovoltaic cables used?
Photovoltaic cables are used to connect solar cell modules and inverters.
3
How long is the service life of photovoltaic cable?
Without additional protection, it can be used for more than 25 years in outdoor ventilation and dry conditions.
