Solar T connector

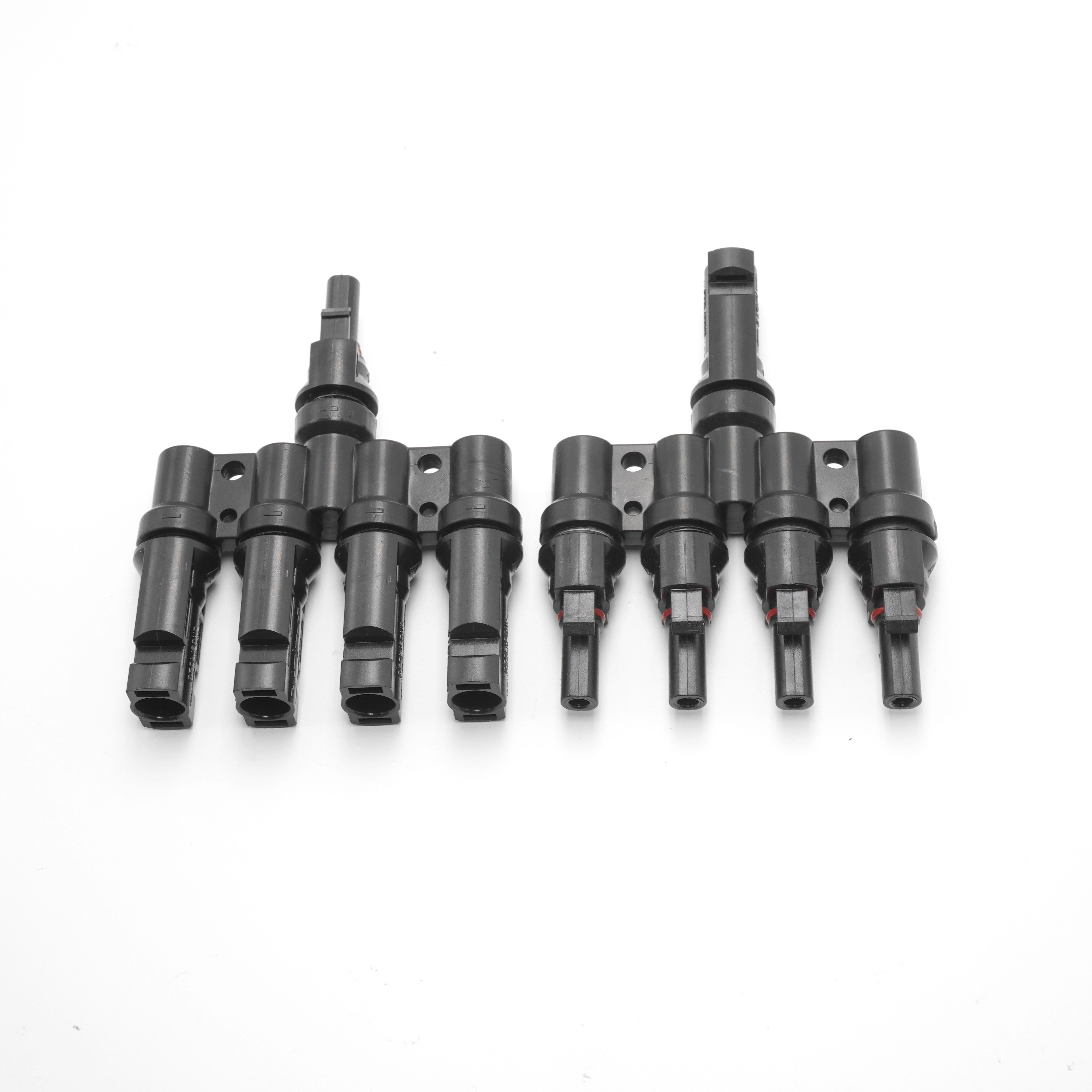

PV004-T4 1000V DC SOLAR PV 4 to 1 T Branch CONNECTORS
PV004-T4 1000V DC 30A
Protection Degree:IP65
Contact resistance:≤0.5mΩ
Ambient temperature:-40℃-+90℃
Contact Materials:Tinned copper
Insulation Material:PPO
Flame class:UL94 V-0
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
Protection Degree:IP65
Contact resistance:≤0.5mΩ
Ambient temperature:-40℃-+90℃
Contact Materials:Tinned copper
Insulation Material:PPO
Flame class:UL94 V-0
Application Scenario: Self built houses in rural areas; Array power station; BIPV building integration; Industrial and commercial roof; Agriculture, Fishing and lighting; Optical storage charging.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
STYLE
|
Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P4-007
|
| SIZE |
PV004-T4
|
||
|
CONSTRUCTION
FIGURE
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Rated voltage |
DC 1000V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PC
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
6.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Packing quantity |
100 sets/box
|
||
Product Details
PPO MATERIAL
High heat resistance, flame resistance, high strength, excellent electrical performance,abrasion resistance and environmental protection
O-RINGS
The connector socket adopts high quality sealing ring to effectively prevent dust and rain from invading
LOCK CATCH
Snap lock, stable self-locking Easy to open and close.
COMPATIBILITY
The product has strong compatibility and can be compatible with standard connectors in the market.
Products Features
Flame Retardant
Environmental protection
High Heat resistance
Electrical Insulation
Wear Resisting
Water Resistant
