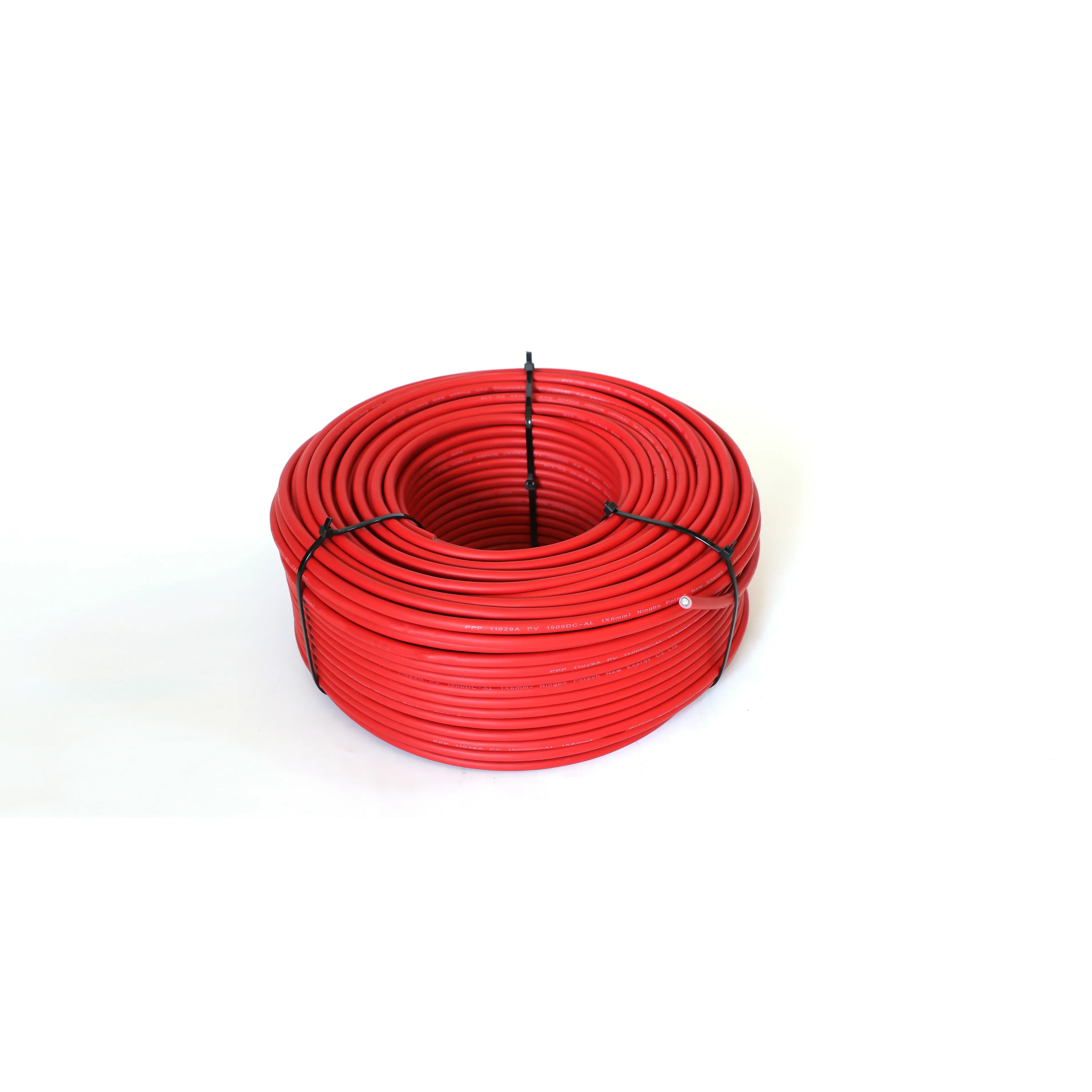

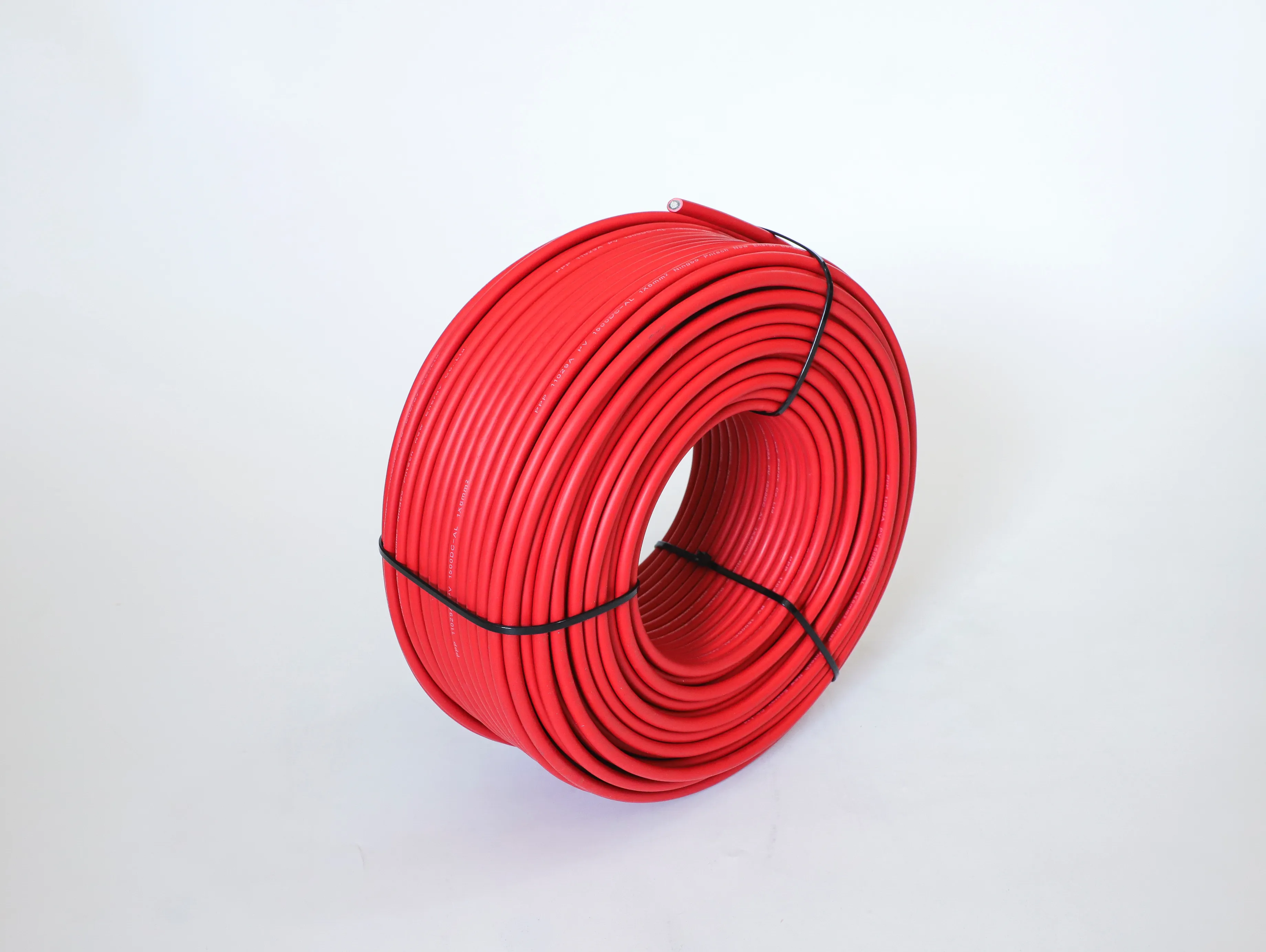

PNTECH Aluminium Alloy Wire Factory Price
Product details of the aluminium alloy wire
Product Overview
The production of PNTECH aluminium alloy wire is in compliance with the accepted international standards. Strict and complete quality control system makes sure the product is manufactured with its best quality and performance. Zhejiang Pntech Technology Co., Ltd. has established long-term relationships with many customers.
Product Description
PNTECH's aluminium alloy wire has the following advantages over products in the same category.
| PRODUCT NAME | PPP11029A | DOCUMEN NO | PNTK-PP-001 | |||
| SIZE | 1 ×4mm² | |||||
| SECTIONAL DRAWING | ||||||
| STANDARD BASIS EN50618:2014 | ||||||
| MARKING | PPP 11029A PV 1.5KVDC-AL 1 ×4mm² ZHEJIANGPNTECH TECHNOLOGY CO.,LTD. | |||||
| CONDUCTOR | MATERIAL | (Aluminium alloy) | ||||
| CONSTRUCTION (N/mm) | TS 56/0.3±0.015 | |||||
| DIA (mm) | 2.6 | |||||
| INSULATION | MATERIAL | (XLPO) | ||||
| OVER DIAMEREDR (mm) | 4.5±0.1 | |||||
| AVG. THICK (mm) | ≥0.7 | |||||
| MIN. THICK (mm) | ≥0.53 | |||||
| COLOR | Upon customer's request | |||||
| SHEATH | MATERIAL | (XLPO) | ||||
| OVER DIAMEREDR (mm) | 6.6±0.2 | |||||
| AVG. THICK (mm) | ≥0.8 | |||||
| MIN. THICK (mm) | ≥0.58 | |||||
| COLOR | Upon customer's request | |||||
| ELECTRICALPERFORMANCE | RATED VOLTAGE (V) | DC1.5KV | ||||
| RATED TEMP (℃) | -40℃-90℃ | |||||
| COND. RESISTANCE (Ω/km,20℃) | ≤7.85 | |||||
| INSU. RESISTANCE (M Ω.km，20℃) | ≥709 | |||||
| VOITAGE WITH STAND TEST | AC6.5KV or DC15KV,5min | |||||
| SPARK ELECTROMECHANICAL VOLTAGE KV) | 7 | |||||
| SHORT-CIRCUIT TEMPERATURE | ≤200℃/5s | |||||
| PHYSICAL PROPERTYOF INSULATION | MIN TENSILE STRENGTH (N/mm²) | ≥8.0 | ||||
| MIN BREAK ELONGATION RATE (％) | ≥125 | |||||
| FLAME TEST | EN60332-1-2 | |||||
| THEORETICAL SERVICE LIFE | 25 | |||||
| ENVIRON MENT PROECTION | ROHS2.0 | |||||
| Packingspecification | Packing quantity: 100m,500m | |||||
Product Details
Sheathing Material
The insulation adopts low smoke halogen free irradiated cross-linked polyolefin (XLPO), which is fire retardant,high and low temperature resistant,UVresistance, corrosion resistance, long service life.
Brand Printing
PNTECH logo is printed on the line, with clear printing,Buying a brand is more guaranteed.
