Oem & Odm Solar Panels for Workplace
Product details of the Solar panels
Product Description
With the support of the latest technology, advanced equipment, and highly qualified & experienced workforce, PNTECH Solar panels is finely produced with an aesthetically-appealing appearance. The product is of the finest quality in the industry as it surpassed the international quality standards. With so many advantages, the product has a very good prospect in future market applications.
|
STYLE
|

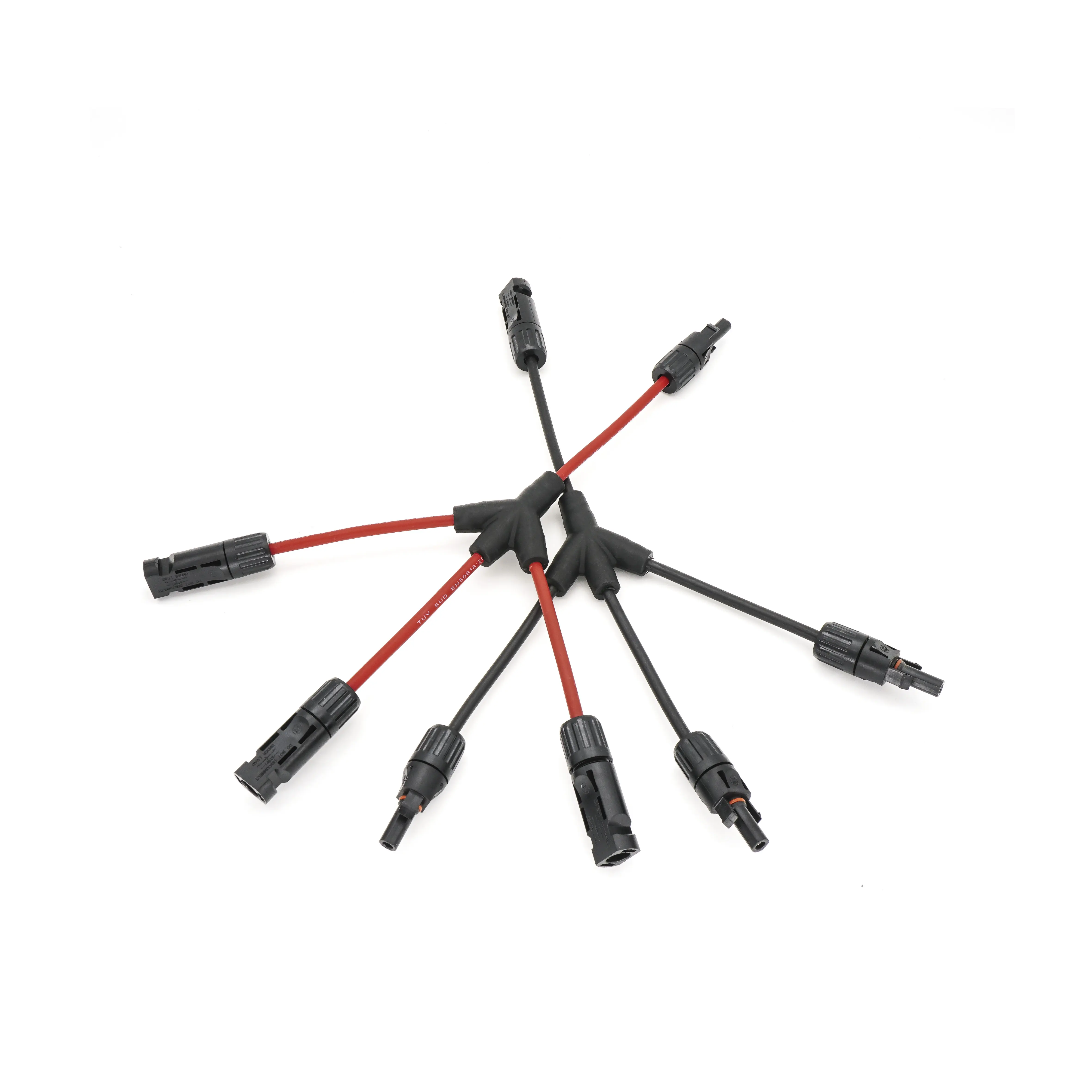

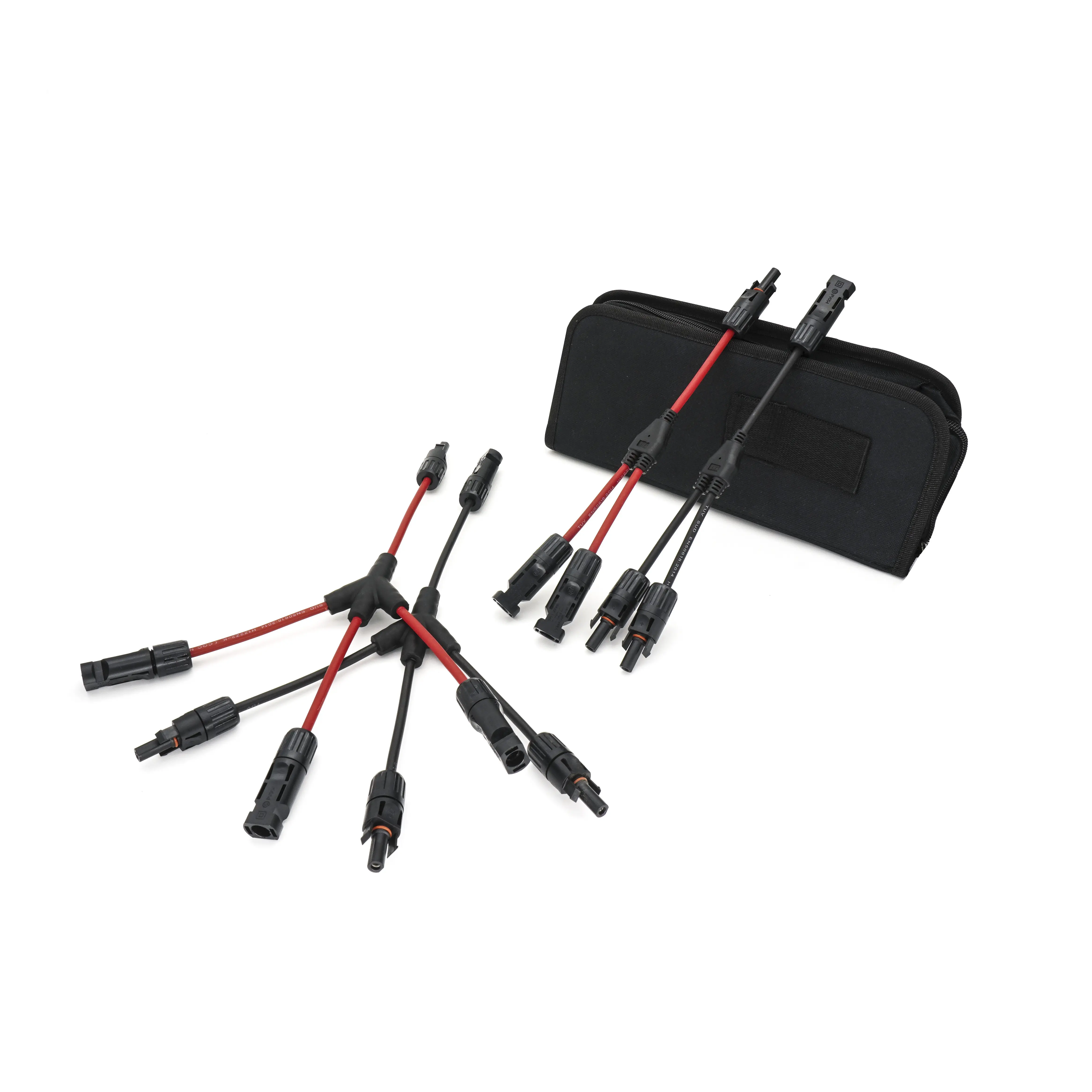

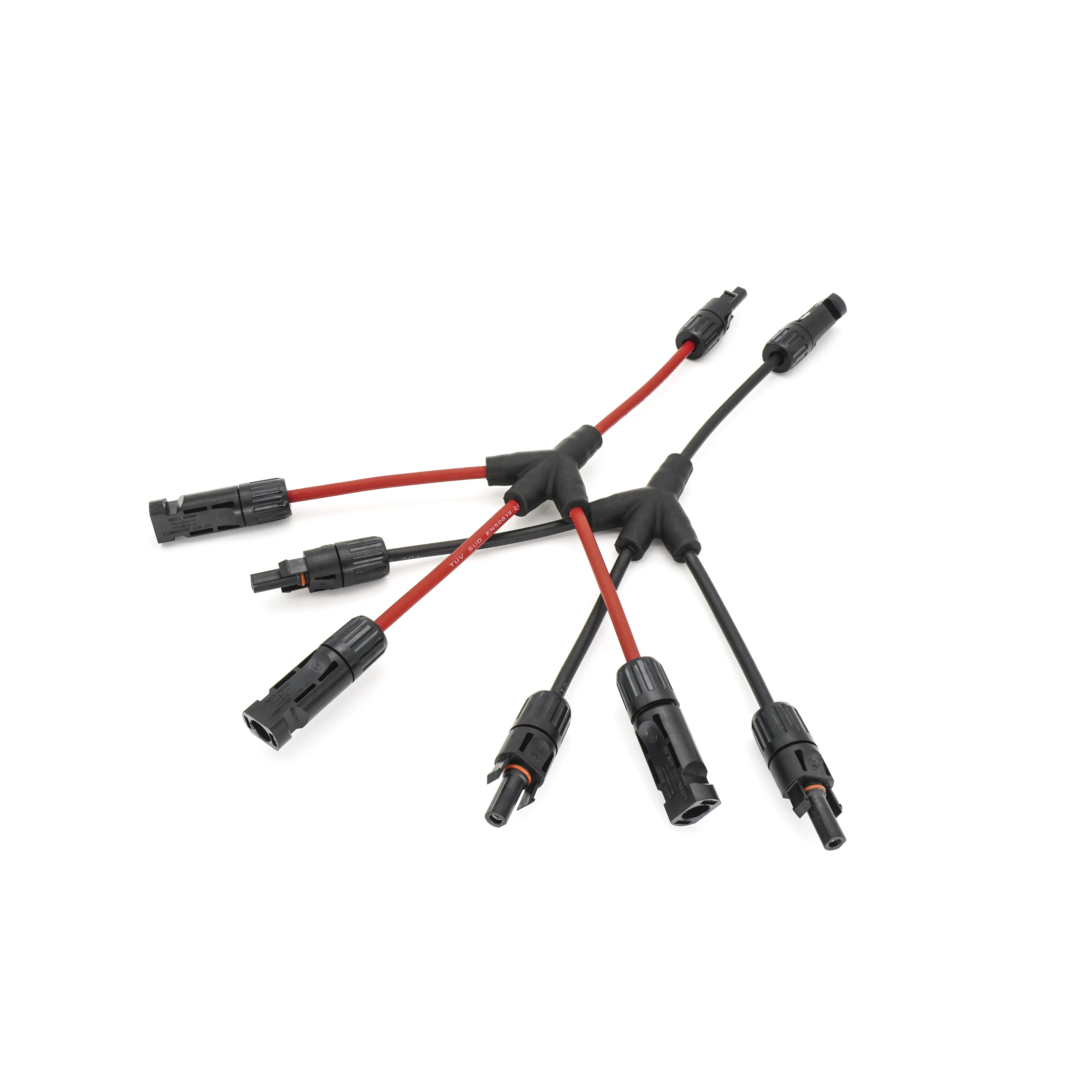

Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P4-011
|
| SIZE |
PV004-3T1
|
||
|
CONSTRUCTION
FIGURE
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Rated voltage |
DC 1000V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PC/XLPO
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
6.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Input/output cable specifications |
1×4mm²/1×4mm²
|
||
| Packing quantity |
60 sets/box
|
||
Product Details
Connector
PC EXL9330 Material,tinned copper inner core,flame retardant,high and low temperature resistant,UV resistant
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Sheathing Material
The cable is XLPO,flame retardant,high and low temperature,UV resistance and corrosion resistance
Insulation Parts
The contact head of the product is provided with a guide insulation to guide and prevent electric shock.
Products Features
FAQ
Company Advantage
• PNTECH has a professional technical team and a strong business team to guarantee high technical value and sufficient market supply of products.
• Our company's professional service team provides all-round professional and suitable services for customers according to the different needs of each customer.
• After years of development and growth, our company has formed a business model with high-tech industrial chain. Now, we are a modern high-tech enterprise with full-scale managemental capabilities.
• Through continuous development and improvement, our own unique brand has been created with a wide range of products. Moreover, a sales network spreading to the whole country has been established. Our products are exported to North America, Eastern Europe and Southeast Asia.
If you need to buy our products, welcome to contact us!
