Cheapest Mc4 Connector for Hospital
Company Advantages
· PNTECH mc4 connector is attractive in the industry for its appealing designs.
· The competitive edges of the product are as follows: long service life, good performance, and exceptional quality.
· Zhejiang Pntech Technology Co., Ltd. has strong product innovation capabilities.

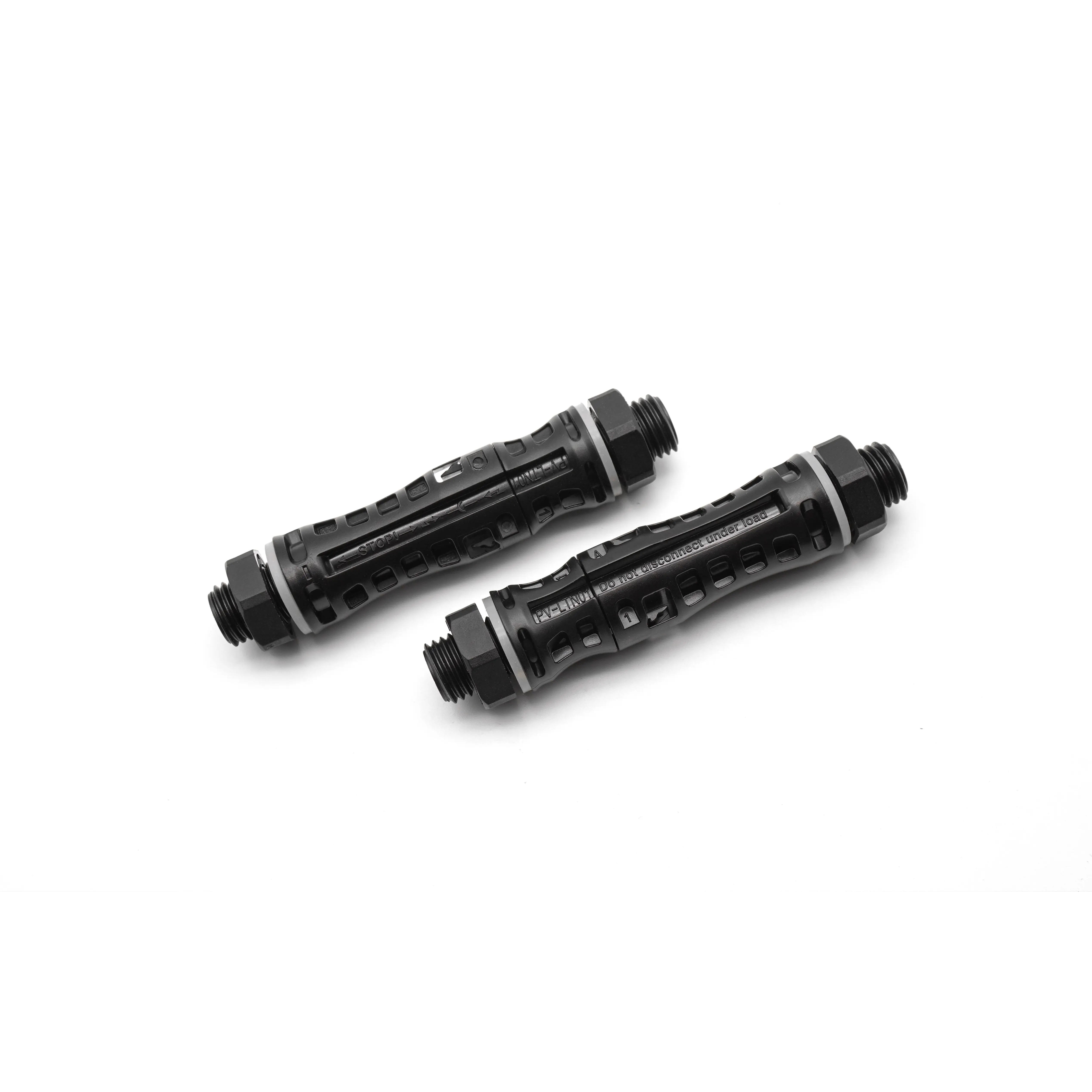

| STYLE | Photovoltaic connector | DOCUMEN NO | PNTK-P5-003 | ||||
| SIZE | PV005-P | ||||||
| CONSTRUCTIONFIGURE | |||||||
| STANDARD BASIS | IEC 62852：2014 | ||||||
| Rated voltage | DC 1500V | ||||||
| Rated current | 30A | ||||||
| Contact material | Tinned copper | ||||||
| Insulation material | PPO | ||||||
| Locking system | Locking type | ||||||
| Degree of protection | IP65 | ||||||
| Ambient temperature range | -40℃~+85℃ | ||||||
| Upper temperature limit | 100℃ | ||||||
| Contact resistance of plug connectors | ≤0.5m Ω | ||||||
| Withstand voltage test | 8.0KV，1min | ||||||
| Flame class | UL94-V0 | ||||||
| compatibility | Compatible with MC4 connectors | ||||||
| Salt spray test | Degree of severity 6 | ||||||
| Damp heat test | No damage occurred which could impair normal use | ||||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | ||||||
| Connector pulling force | ≥200N | ||||||
| Warranty period | Twenty-five years | ||||||
| Thread size | 12mm | ||||||
| Packing quantity | 500 sets/box | ||||||
Product Details
IP65 Waterproof Level
Protection from dust inhalation, protection from short immersion, prevent erosion in wet weather IP65 protection improves the service life of the product
High Strength PPO Insulation
It has the advantages of large rigidity and high heat resistance. In addition, PPO still has the advantages of wear-resisting and pollution resistance.

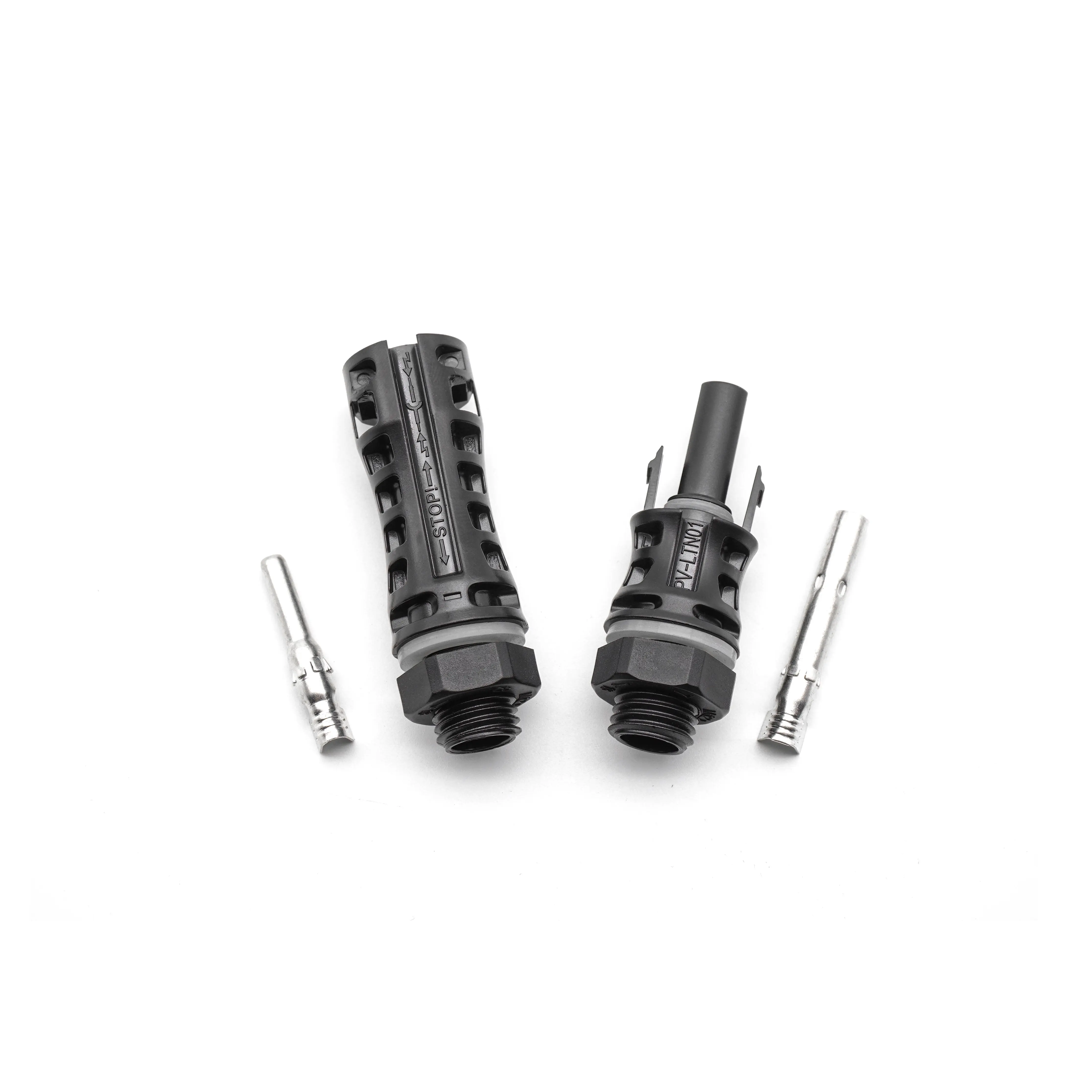

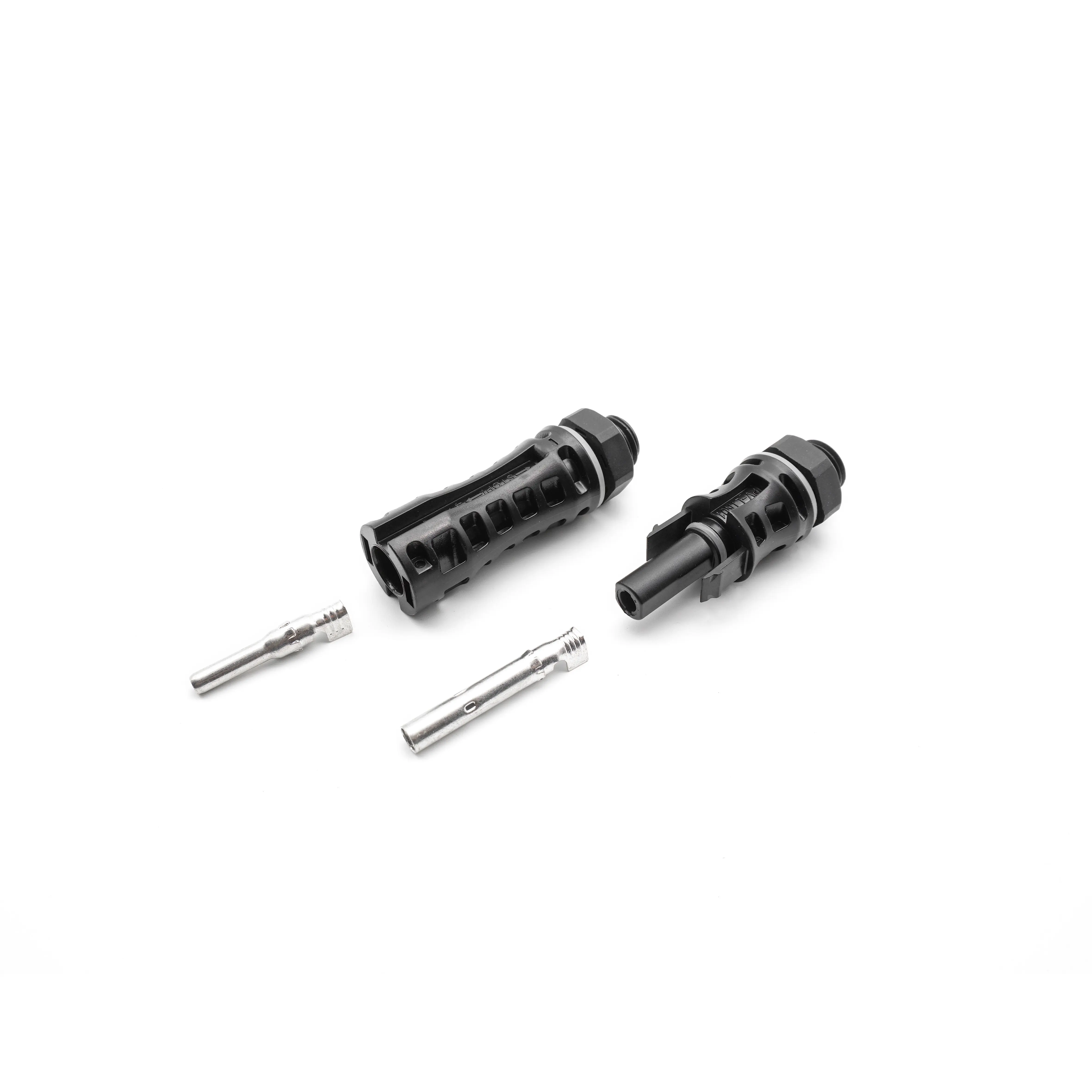

Thickened Copper Core
Copper tin-plated material, open type copper core, real material is more durable

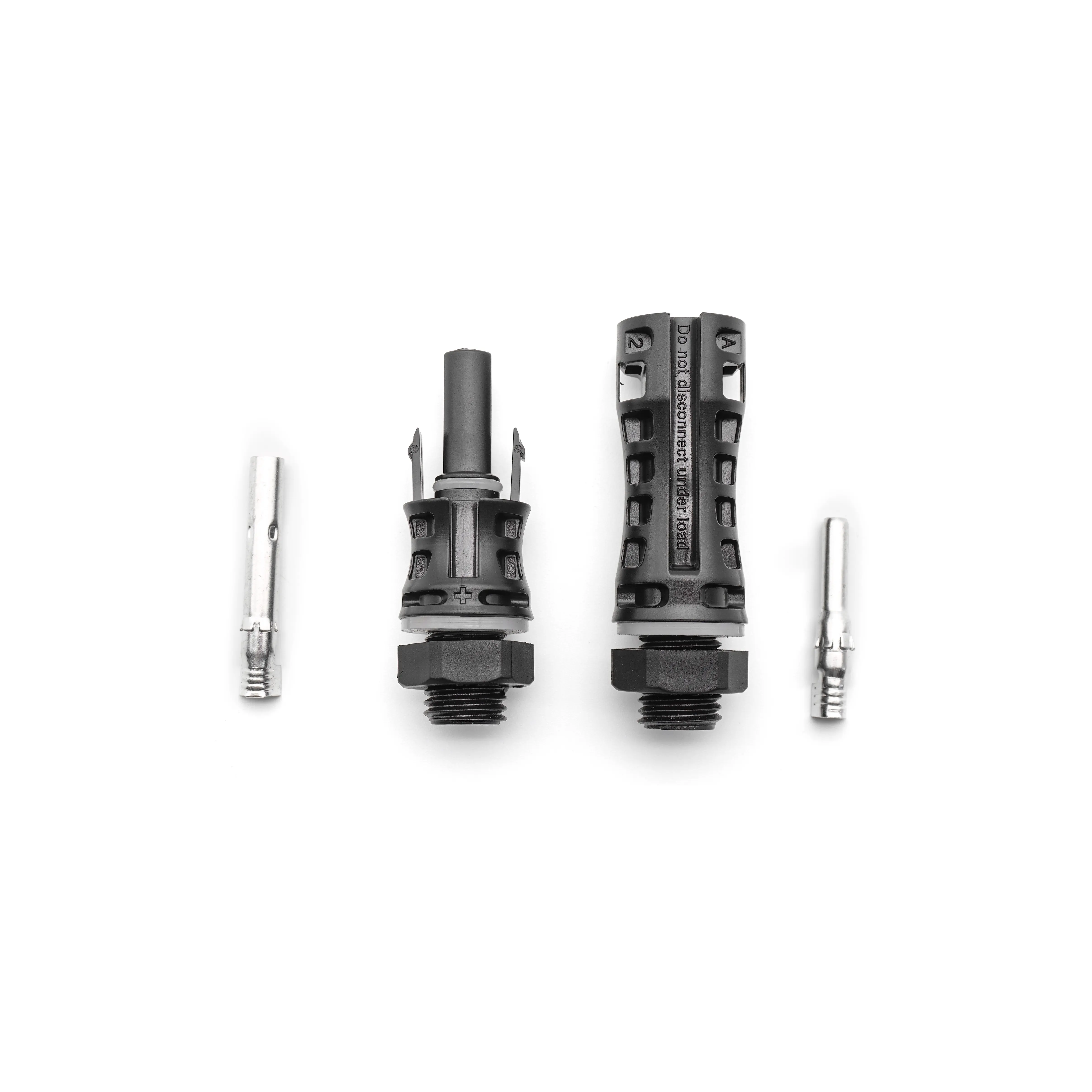

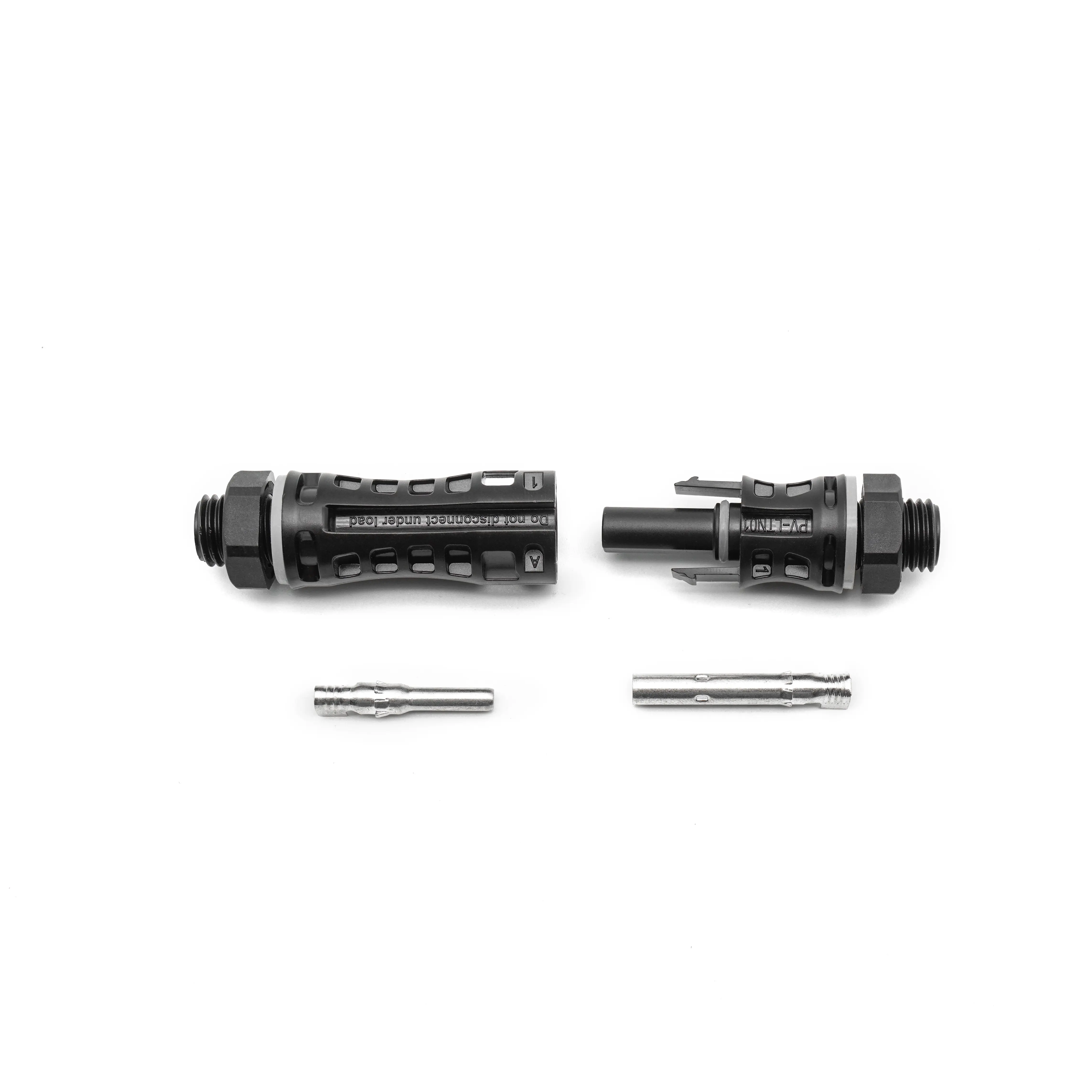

Stable Self-locking
The connector is connected by pressing, and the male and female connectors open and close freely.
Products Features
FAQ
Company Features
· Zhejiang Pntech Technology Co., Ltd. is an award-winning mc4 connector supplier in the field.
· Zhejiang Pntech Technology Co., Ltd. has fully developed its own strength in developing new mc4 connector. Zhejiang Pntech Technology Co., Ltd. has always been committed to take the road of independent innovation in mc4 connector field. Zhejiang Pntech Technology Co., Ltd. has strong R&D capability and superior process technologies for mc4 connector.
· Zhejiang Pntech Technology Co., Ltd. helps customers to reflect their unique value and win long-term development. Get quote!
Application of the Product
mc4 connector of PNTECH can be widely used in various fields.
We strive to provide customers with efficient, complete, and flexible solutions based on their needs.
Product Comparison
Our mc4 connector is more competitive than similar products, as shown in the following aspects.
