Bepoke Mc4 Pv Connector Mc4 Pv Connector Company

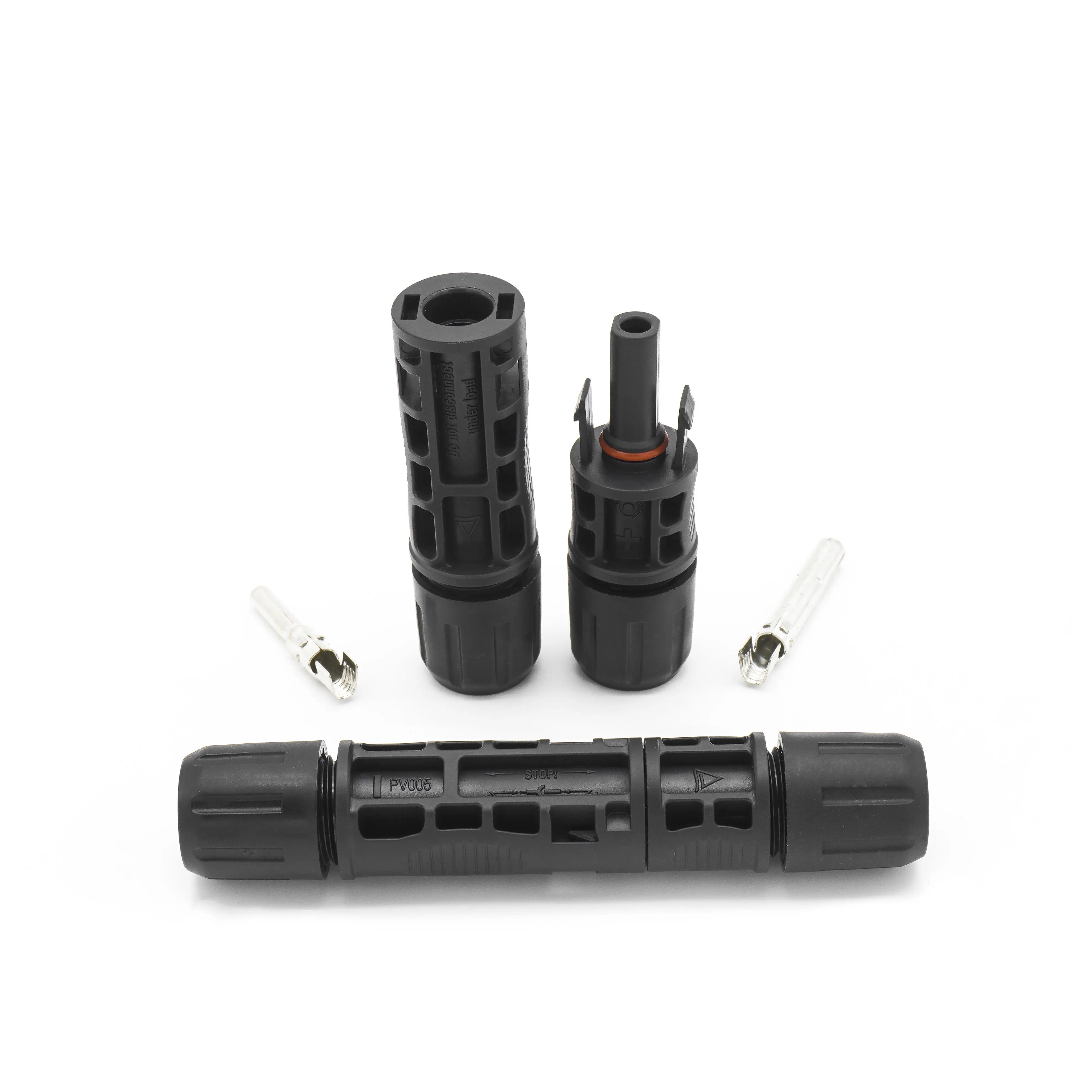

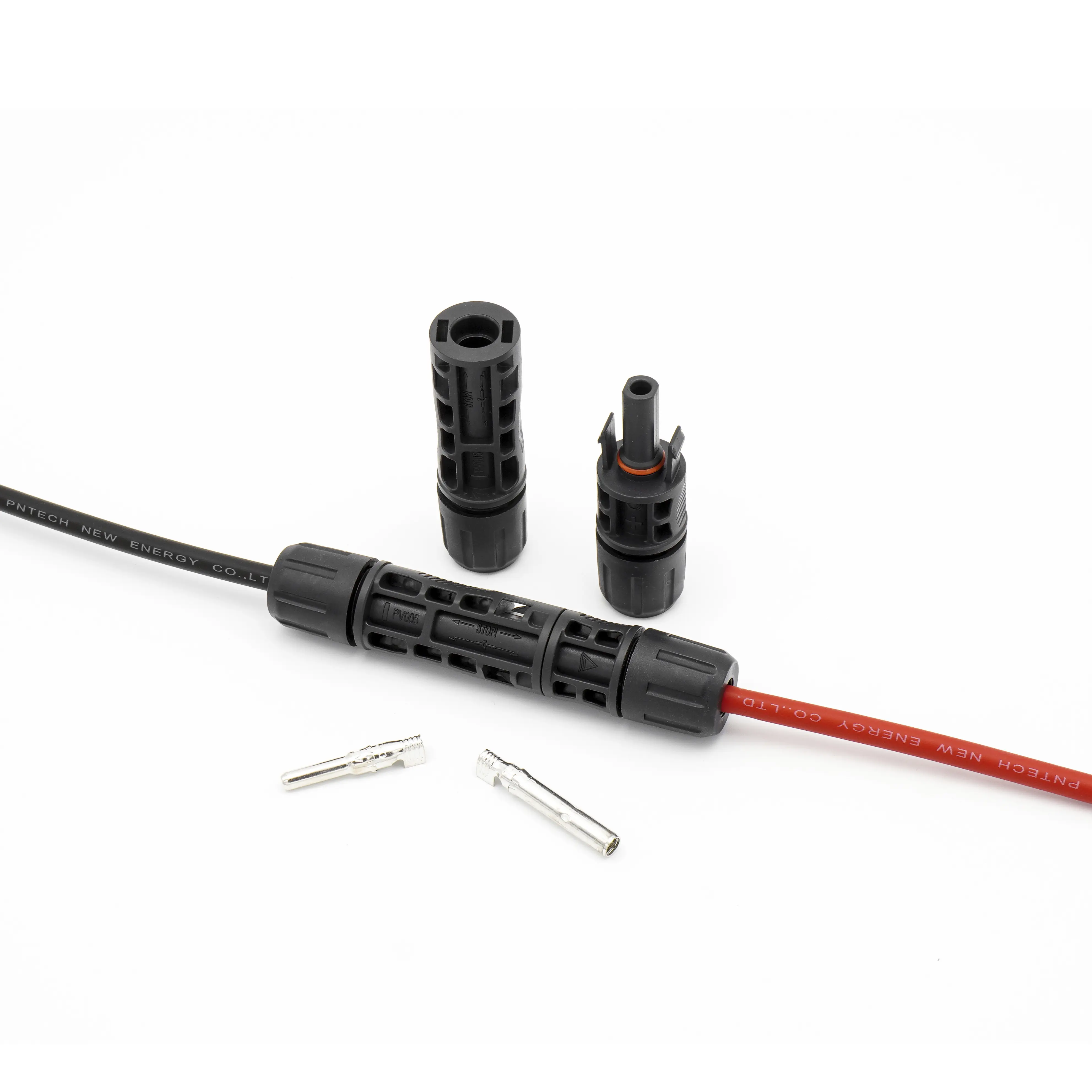

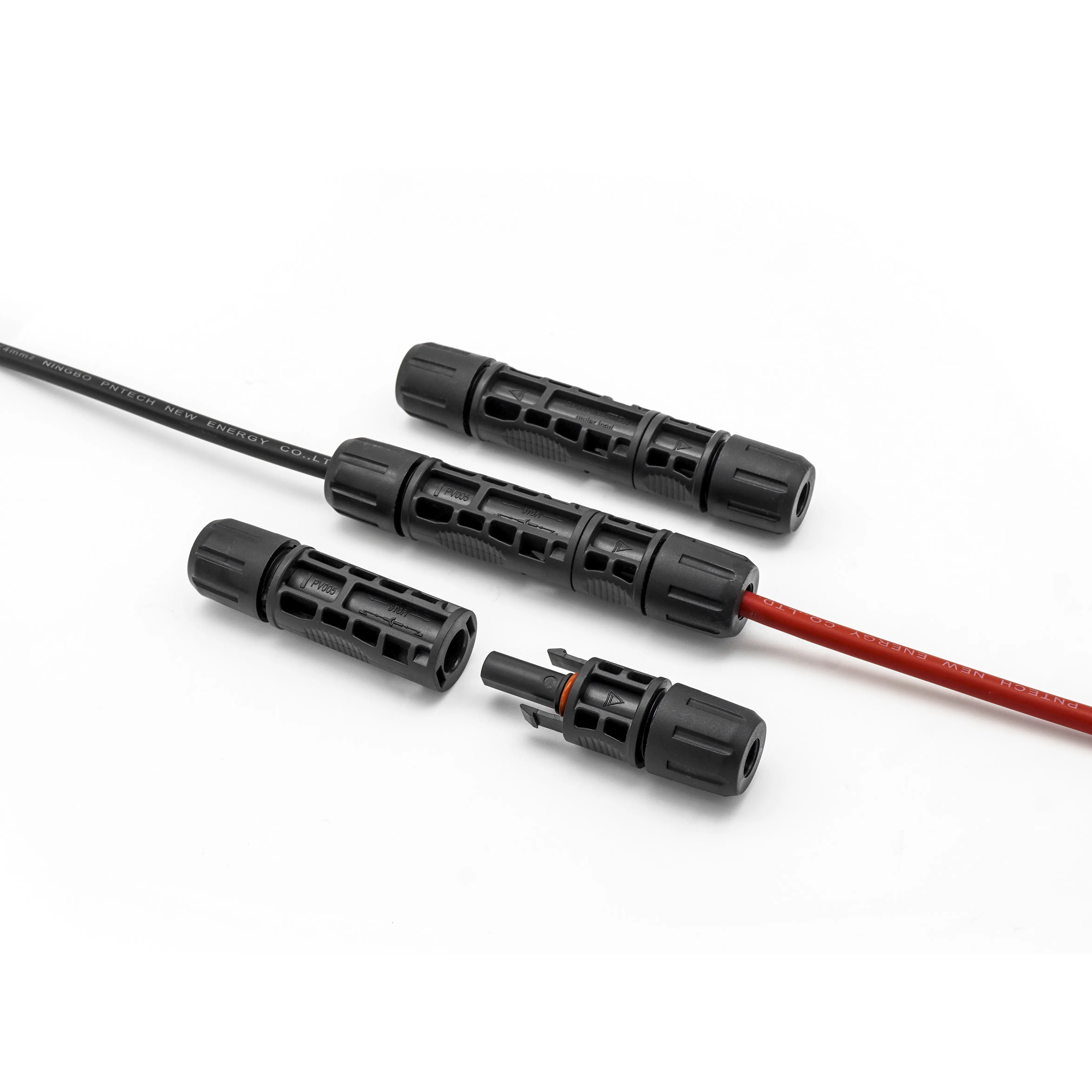

Product details of the mc4 pv connector
Product Information
The offered PNTECH mc4 pv connector is designed by a dedicated team of experts. The performance of this product is assured by your QC team. The increasing demand for this product in the market is bound to occur.
|
STYLE
|
Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P5-001
|
| SIZE |
PV005
|
||
|
Rated Current
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Match wire specifications |
2mm² , 4mm² , 6mm²
|
||
| Rated voltage |
DC 1500V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PV40Z
|
||
| Type of connection |
Crimping
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65/IP68
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
8.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Packing quantity |
500 sets/box
|
||
Product Details

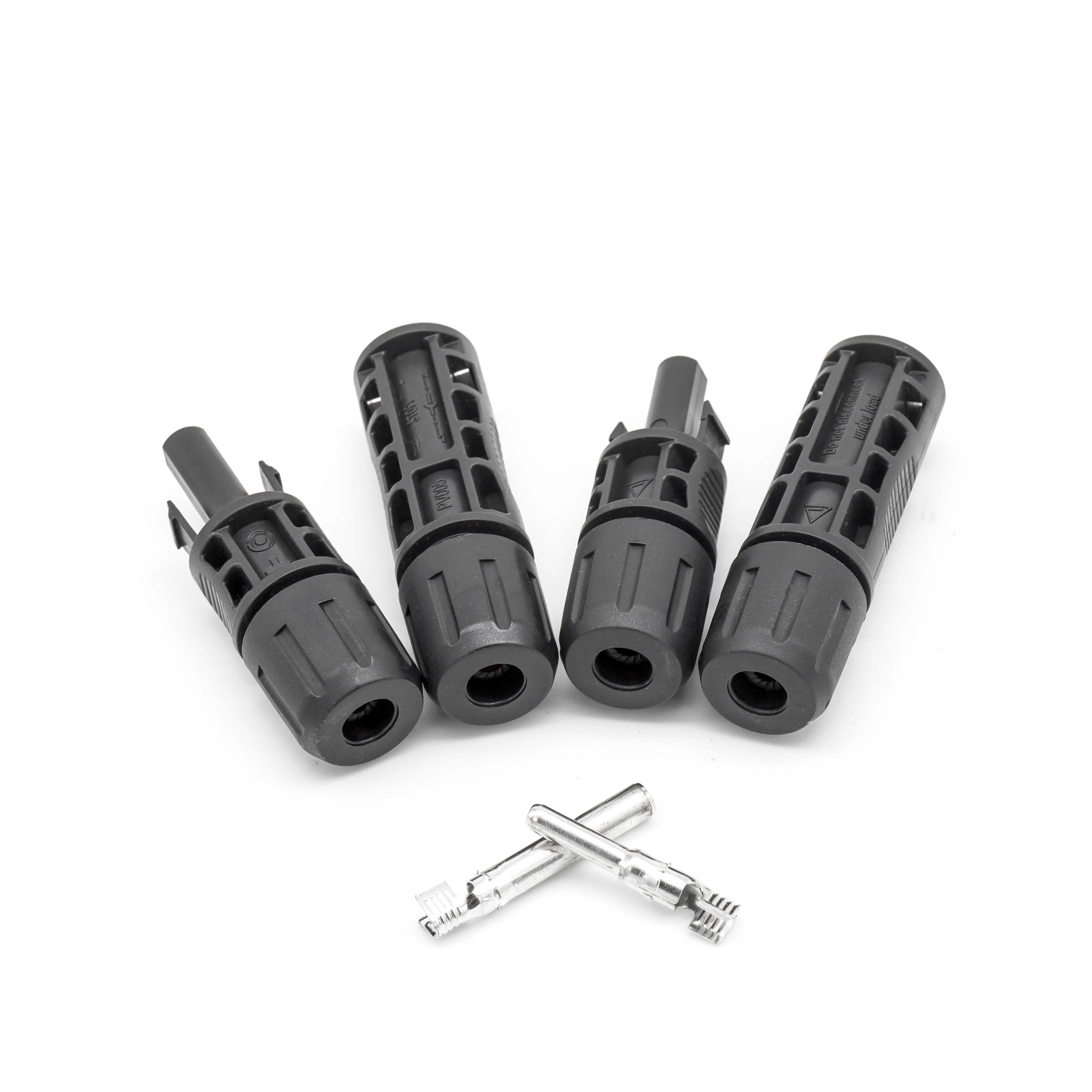

Preferred Material
The shell is made of high-quality PV40Z ,flame retardant,high and low temperature resistant,UV resistant and corrosion resistant.

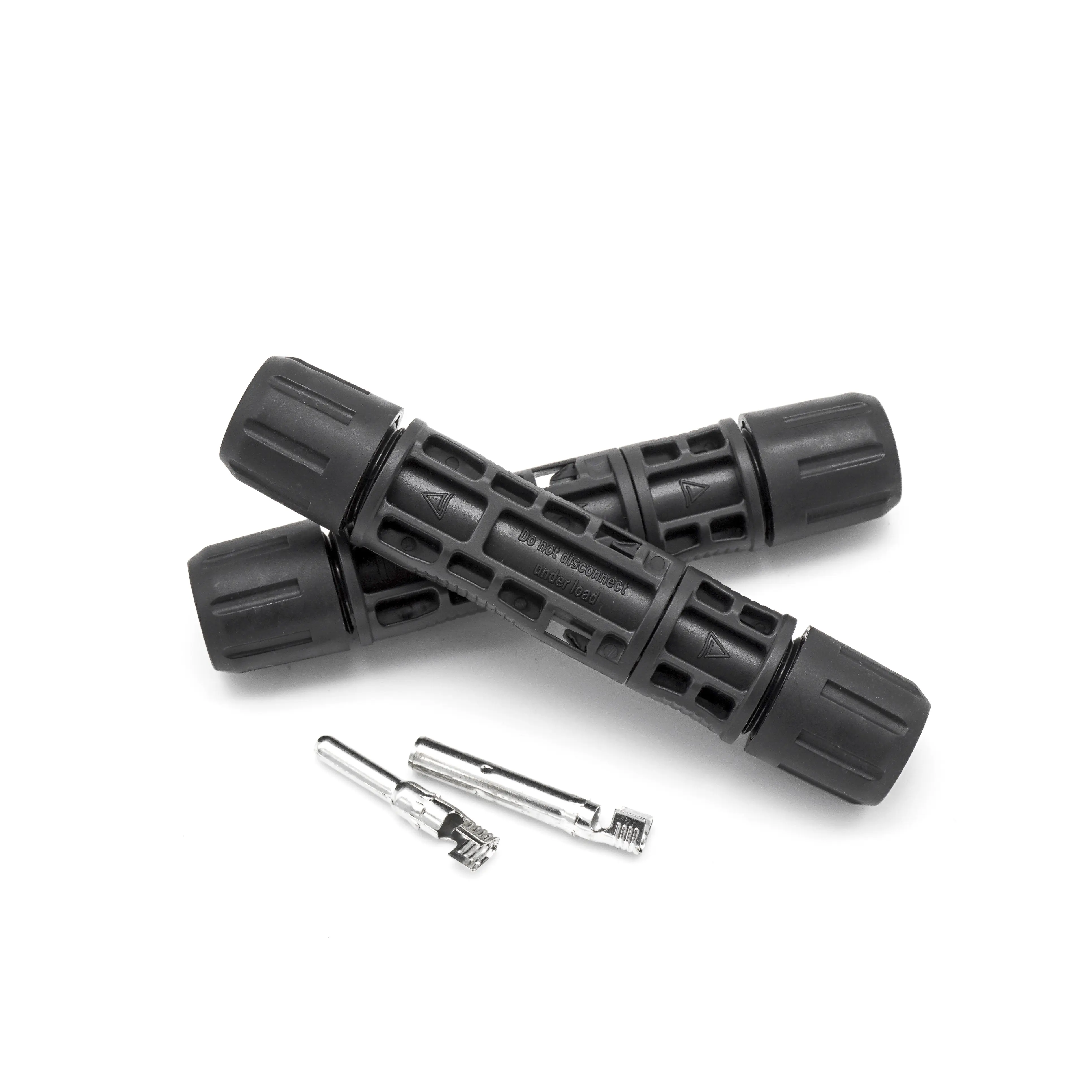

Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Stable Clip
Snap lock,stable self-locking function,easy to open and close.
Insulation Parts
The contact head of the product is provided with a guide insulation to guide and prevent electric shock insulation parts.
