Inverter extension cord

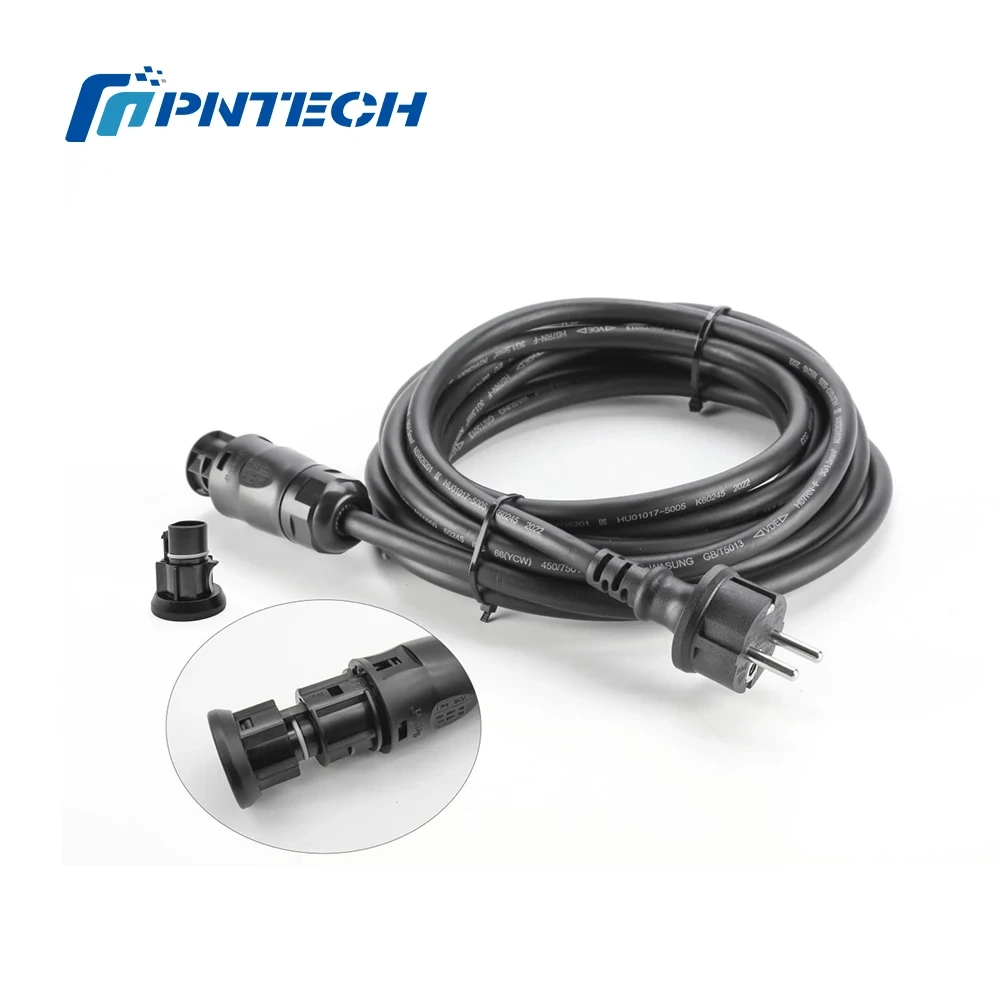

Bare Copper Micro Inverter Extension Cord AC/DC Bc01 Male 3*1.0mm2 10m
5.0
Customization:
Customized logo (Min. Order: 5000 sets),Customized packaging (Min. Order: 5000 sets),Graphic customization (Min. Order: 5000 sets)
Model Number:
BC01 3x1.0mm2 10m
Brand Name:
PNTECH
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-500(pieces):8(days),501-2000(pieces):10(days),2001-5000(pieces):12(days),>5000(pieces):To be negotiated(days)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Contact Materials
Bare Copper
Rated Current
16A
Size
3x1.0mm2 10m
Cable Length
2/3/5/10m
Cable Specifications
3x1.0/1.5/2.5mm2
Contact Resistance
≤0.5mΩ
Product Name
Micro inverter extension cord
Jacket
Rubber
Conductor Material
Bare Copper
Application
Power Station
Type
Micro inverter extension cord, AC-cable
Insulation Material
Rubber, Rubber
Place of Origin
Zhejiang, China
Ambient Temperature
-10℃~+70℃
Rated Voltage
450V/750V
Product Description
Product name | Micro inverter extension cord |
Type | AC-cable |
Rated voltage | 450V/750V |
Rated Current | 16A |
Contact Resistance | ≤0.5mΩ |
Ambient Temperature | -10℃~+70℃ |
Contact Materials | Bare Copper |
Sheath | Rubber |
Insulation Material | Rubber |
Cable specifications | 3x1.0/1.5/2.5mm2 |
Cable Length | 2/3/5/10m |
Specification
Cross Section （mm²） | Conductor Stranded （Φn/mm±0.02） | Sheath medium thickness (mm) | Cable OD （Φmm±0.2） |
3x1.0 | 32x0.198 | 0.8 | 7.3 |
3x1.5 | 30x0.25 | 0.8 | 10.3 |
3x2.5 | 50x0.25 | 0.9 | 11.2 |
Other Products
Packaging & Product Case
Our Advantages
1.PNTECH have 10 years of development
2.Complete certificates
3.Customer Satisfaction
4.Complete equipment,5 professional solar photovoltaic production lines and related supporting equipment
5.Attended various exhibitions at home and abroad for many times
6.The laboratory is fully equipped to ensure production
7.Diversified distribution, sufficient inventory and timely delivery
FAQ
Q1：Where are the photovoltaic cables used ?
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
Q2：How to choose the type and specification of photovoltaic cable ?
A2：Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2（orpv1-f）.
Q3：What is the difference between h1z2z2-k and pv1-f ?
A3：H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4：Which size of cables should I choose ?
A4：4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5：How long is the service life of photovoltaic cable ?
A5：Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6：What other features do photovoltaic cables have ?
A6：Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
