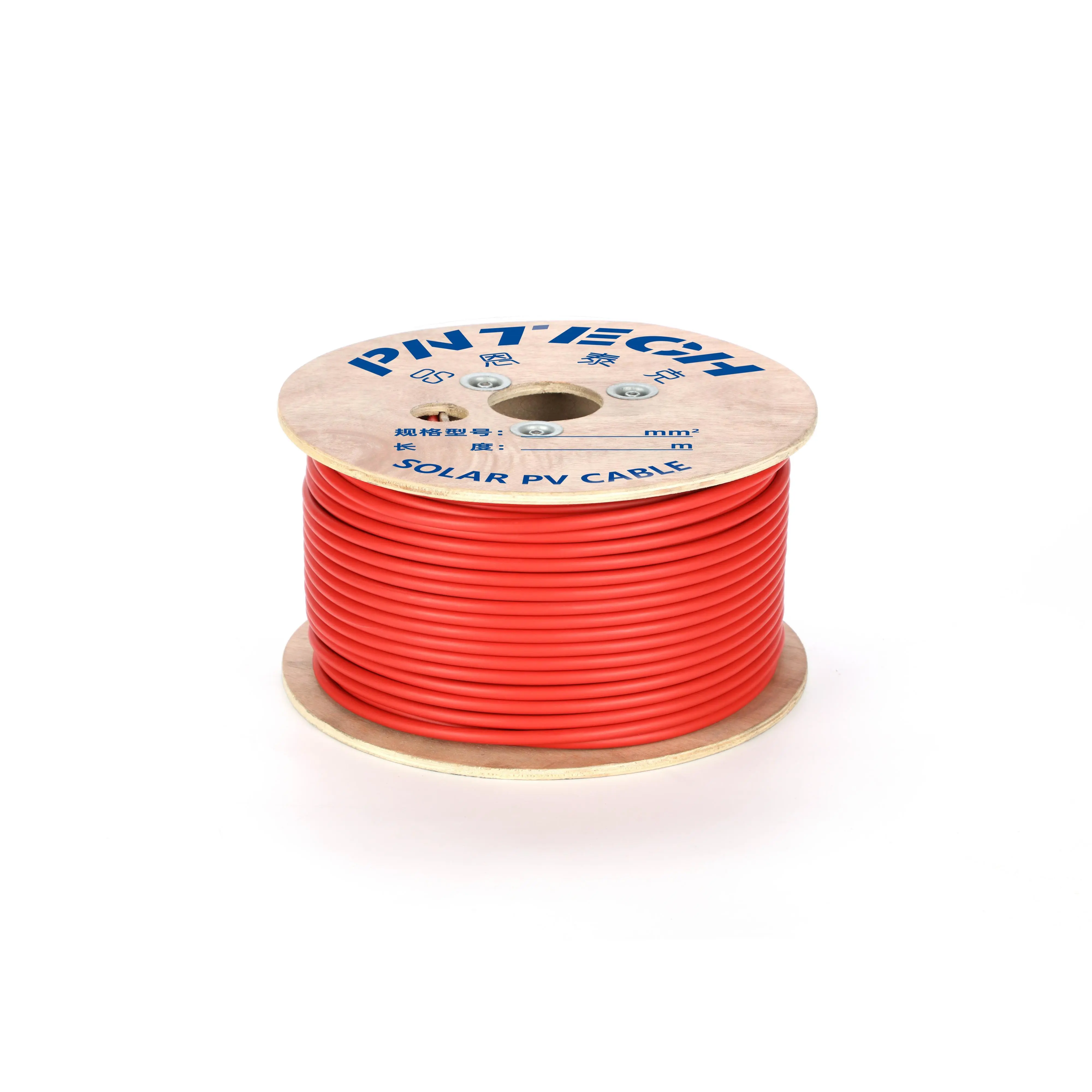

single core solar cable
62930IEC131 1500Vsingle core
The selection of solar photovoltaic cables plays a vital role when ensuring efficient and reliable operation of photovoltaic systems. 62930 IEC131 solar cable is designed to provide exceptional durability and reliability, making it an excellent choice for connecting various components within a photovoltaic system. Let's take a closer look at the key features and benefits of this high-quality solar photovoltaic cable.
62930 IEC131 solar single core cables, 1*1.5mm2-35mm2, Insulation and Sheath is XLPO/XLPE, Damp heat test: EN60068-2-78, Ozone resistance: EN60811-403, Ageing properties: EN60811-401, Have TUV CQC CCC official certification
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Product name
|
DC Solar PV Cable
|
|
Origin
|
China
|
|
Color
|
Black ,Red ,Brown,Grey Or Customized
|
|
Specification
|
1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2, 16.0mm2, 25.0mm2, 35.0mm2
|
|
Number of Cores
|
Single Core
|
|
Transport Package
|
Drum or Roll
|
|
Rated voltage
|
AC:Uo/U=1.0/1.0KV DC:1.5KV
|
|
Voltage test on completed cable
|
AC:6.5KV DC:15KV,5min
|
|
Ambient Temperature
|
-40℃~+90℃
|
|
Max Temperature at conductor
|
+120℃
|
|
Conductor
|
Oxygen-free Tinned copper
|
|
Sheath
|
XLPO
|
|
Insulation
|
XLPO
|
|
ACID and Alkali resistance
|
EN60811-404
|
|
Cold bending test
|
EN60811-504
|
|
Damp Heat Test
|
EN60068-2-78
|
|
Weathering /UV-resistance
|
IEC 62930
|
|
Ozone resistance
|
EN60811-403
|
|
Test under fire condition
|
EN60332-1-2
|
|
Certificate
|
TUV
|
|
Thermal endurance properties
|
IEC60216-1
|
|
Ageing properties
|
EN60811-401
|
|
Service Life
|
25 years(-40℃~+90℃)
|
|
Warranty
|
Five years
|
Specification
|
Cross Section
|
Conductor Construction
|
Conductor Stranded
|
Cable OD
|
Conductor Dc Resistance
|
Current carring Capacity
|
Picking
|
|
mm²
|
Φn/mm±0.015
|
Φmm±0.02
|
Φmm±0.2
|
Ω/km
|
AT 60ºC(A)
|
mater/roll
|
|
1x1.5
|
22x0.29
|
1.5
|
4.6
|
13.7
|
25
|
250
|
|
1x2.5
|
36x0.29
|
2.0
|
5.1
|
8.21
|
36
|
100/250/500
|
|
1x4.0
|
56x0.29
|
2.4
|
5.7
|
5.09
|
44
|
100/250/500/5000
|
|
1x6.0
|
84x0.29
|
3.0
|
6.5
|
3.39
|
60
|
100/200
|
|
1x10
|
80x0.395
|
4.0
|
7.5
|
1.95
|
82
|
100
|
|
1x16
|
120x0.395
|
5.0
|
8.9
|
1.24
|
122
|
100
|
|
1x25
|
196x0.395
|
6.3
|
11
|
0.795
|
160
|
100
|
|
1x35
|
276x0.395
|
7.4
|
12.2
|
0.565
|
200
|
100
|
Product Details
Quality tinned copper
Tin plating process,oxidation resistant, not easy to rust, good conductivity, 99.98% pure copper, low resistance, can reduce the power loss in the current conduction process.
Sheathing Material
The insulation adopts low smoke halogen free irradiated cross-linked polyolefin (XLPO), which is fire retardant,high and low temperature resistant,UVresistance, corrosion resistance, long service life.
Brand Printing
PNTECH logo is printed on the line, with clear printing,Buying a brand is more guaranteed.
Products Features
SUFFICIENT CORE SUFFICIENT METERS
PURE OXYGEN FREE COPPER CORE
HIGH AND LOW TEMPERATURE RESISTANCE
ANTIOXIDANTS
ECCENTRICITY IS LOW
ENVIRONMENTAL PROTECTION
FAQ
1
Which size of cables should I choose ?
4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
2
Where are the photovoltaic cables used?
Photovoltaic cables are used to connect solar cell modules and inverters.
3
How long is the service life of photovoltaic cable?
Without additional protection, it can be used for more than 25 years in outdoor ventilation and dry conditions.
