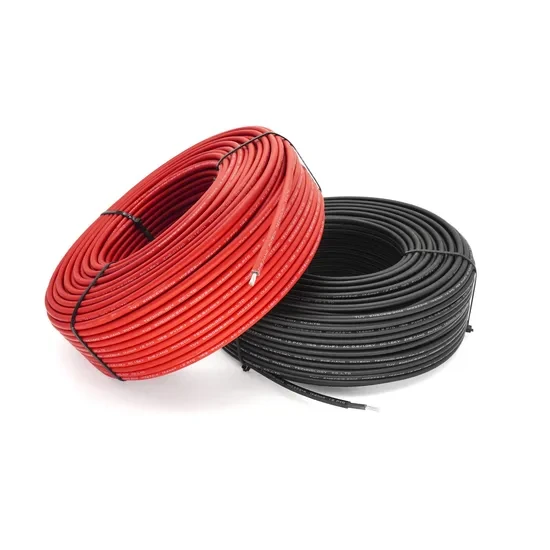

single core solar cable
single core cable PV1-F 1X4mm2
PV1-F 1*4mm2
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Brand:
Pntech
Material Shape:
Round Wire
Application:
Power Station
Model NO.:
PV1-F 1x4mm2
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Sheath Material
Xlpo
Conductor Type
Oxygen-Free Tinned Copper Wire
Insulating Material
Xlpo
Production Capacity
300000metre/Day
HS Code
8544492100
Origin
China
Trademark
pntech
Specification
4mm2
Transport Package
Drum, Roll or Customized
Wire Core Material
Oxygen-Free Tinned Copper Wire
Certification
TUV
Product Description
Why Choose Us
| Use | for Solar Plants Distribution System |
| Ambient Temperature | -40ºC~+90ºC |
| Test Voltage | 6500V, 50Hz, 5min |
| Origin | China |
| Production Capacity | 300000metre/Day |
| Certification | TUV |
| Product Name | DC Solar PV Cable |
| Color | Black ,Red ,Brown,Grey Or Customized |
| Specification | 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2, 16.0mm2, 25.0mm2, 35.0mm2 |
| Number of Cores | Single Core |
| Transport Package | Drum or Roll |
| Rated voltage | AC:Uo/U=0.6/1.0KV DC:1.0KV |
| Voltage test on completed cable | AC:6.5KV DC:15KV,5min |
| Weathering /UV-resistance | HD605/A1 |
| ACID and Alkali resistance | EN60811-2-1 |
| Cold bending test | EN60811-1-4 |
| O-zone resistance at complete cable | EN50396 |
| Flame test | IEC60332-1 |
| Max Temperature at conductor | +120ºC |
| Service Life | 25 years(-40ºC~+90ºC) |
Specification
| Cross Section | Conductor Construction | Conductor Stranded | Cable OD | Conductor DC Resistance | Carrying Capacity | Picking |
| mm² | Φn/mm±0.015 | Φmm±0.02 | Φmm±0.02 | Ω/km | AT 60ºC(A) | mater/roll |
| 1x1.5 | 22x0.29 | 1.58 | 4.6 | 13.5 | 25 | 250 |
| 1x2.5 | 36x0.29 | 1.98 | 5.3 | 8.21 | 36 | 100/250/500 |
| 1x4.0 | 56x0.29 | 2.35 | 5.6 | 5.09 | 44 | 100/250/500/5000 |
| 1x6.0 | 84x0.29 | 3.06 | 6.3 | 3.39 | 60 | 100/200 |
| 1x10 | 80x0.4 | 4.60 | 7.6 | 1.95 | 82 | 100 |
| 1x16 | 120x0.4 | 5.60 | 9.5 | 1.24 | 122 | 100 |
| 1x25 | 196x0.4 | 6.95 | 11 | 0.795 | 160 | 100 |
| 1x35 | 276x0.4 | 8.30 | 12 | 0.565 | 200 | 100 |
Other Products
Packaging & Product Case
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
Our Advantages
1.PNTECH have 10 years of development
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
Q2:How to choose the type and specification of photovoltaic cable ?
A2:Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2(orpv1-f).
Q3:What is the difference between h1z2z2-k and pv1-f ?
A3:H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4:Which size of cables should I choose ?
A4:4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5:How long is the service life of photovoltaic cable ?
A5:Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6:What other features do photovoltaic cables have ?
A6:Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
Our Advantages
1.PNTECH have 10 years of development
PNTECH is a production enterprise on solar PV system components founded in 2011. The Company implements quality management comprehensively as required by GB/T19001-2016/ISO9001:2015 Quality Management System. Its PV cables are produced according to standards 2PfG 1169/08.07, EN50618:2014, IEC 62930:2017, PPP 11029A:2019 and NB/T42073-2016 and PV connectors are produced according to standard EN62852:2015/IEC62852(ed.1) and have acquired certificate of TÜV IEC and CQC.
Meanwhile, the Company has been honored the "star of entrepreneurship" and the enterprise in the cultivation list of "professional, fine, special, and innovative" of Zhejiang Province, and has been successfully listed in Ningbo Equity Exchange Center (code: 780906). Products of the Companyare sold in tens of countries and regions including America, Europe, Southeast Asia, Middle East, Australia and so on.
2.Complete certificates
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
3.Customer Satisfaction
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
4.Complete equipment,5 professional solar photovoltaic production lines and related supporting equipment
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
5.Attended various exhibitions at home and abroad for many times
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
6.The laboratory is fully equipped to ensure production
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
7.Diversified distribution, sufficient inventory and timely delivery
![Xlpo Solar PV Cable Red Black PV1-F 1X4mm2 DC Solar Panel PV Electrical Wire Copper Cable]()
FAQ
Meanwhile, the Company has been honored the "star of entrepreneurship" and the enterprise in the cultivation list of "professional, fine, special, and innovative" of Zhejiang Province, and has been successfully listed in Ningbo Equity Exchange Center (code: 780906). Products of the Companyare sold in tens of countries and regions including America, Europe, Southeast Asia, Middle East, Australia and so on.
2.Complete certificates
Q1:Where are the photovoltaic cables used ?
A1:Photovoltaic cables are used to connect solar cell modules and inverters.
A1:Photovoltaic cables are used to connect solar cell modules and inverters.
Q2:How to choose the type and specification of photovoltaic cable ?
A2:Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2(orpv1-f).
Q3:What is the difference between h1z2z2-k and pv1-f ?
A3:H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4:Which size of cables should I choose ?
A4:4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5:How long is the service life of photovoltaic cable ?
A5:Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6:What other features do photovoltaic cables have ?
A6:Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
