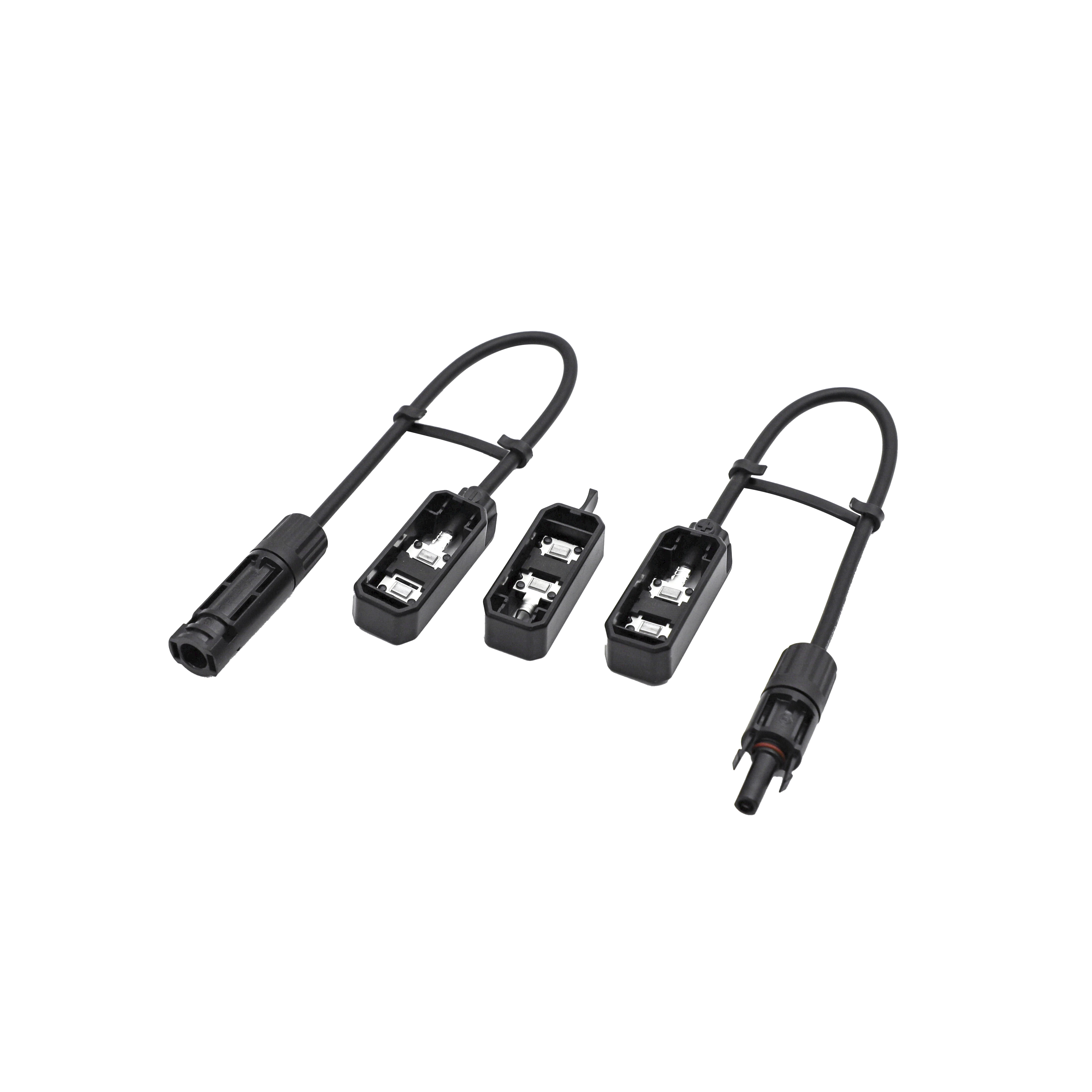

Solar Junction Box
UV resistance 1500V DC 20/25/30A Solar PV Junction Box
Junction Box 1500V IP65/68
Contact material:Tinned copper
Rated Current:20A/25A/30A
Pollution degree:class A
Flame class:UL94-V0 5VA
Connecting Method:soldering
Insulation Material:PPE+PS
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| STYLE | Junction Box | DOCUMEN NO | PNTK-GGS-001 | |||
| SIZE | PN08xy | Signature and seal of |
If you do not sign back, this specification is used by default. |
|||
| Product Images | ||||||
| REFERENCE TUV SUD | ||||||
| MARKING | PNTECH PN08XY 1500V | |||||
| Corresponding current | 20A/25A/30A | |||||
| Rated voltage | 1500V | |||||
| Max working voltage | 100V | |||||
| Ambient temperature | -40~+85℃ | |||||
| Degree of protection | IP65/IP68 ( 1m, 1h) | |||||
| Pollution degree | class A | |||||
| Flame class | UL94-V0 5VA | |||||
| Connecting capacity | 1x4mm2、 12AWG | |||||
| Waterproof Structure | Potting sealant | |||||
| Connection Method | Soldering | |||||
| Insulation Material | PPE+PS | |||||
| Contact Materia | Copper tin plating | |||||
| Volume Of Silicon Gel Up to |
9mm-7.0g | |||||
| Entry cable | 180 ° | |||||
| Diod mode | Rated current | Rated voltage | Rated current | Number | Connection mode | |
| MK4045 | 40A | 45V | 20A | 3 | ||
| MK5045 | 50A | 45V | 25A | 3 | ||
| MK6045 | 60A | 45V | 30A | 3 | ||
Product Details
Diode integrated modules with high current carrying capacity.
Physical isolation between the converging bars to prevent short circuits.
Strong anti-aging and UV resistance of the shell.
Meet the requirements for use in harsh outdoor environmental conditions.
Products Features
RESISTANCE
Low Resistance Value
FLAME RETARDANT
Flame Retardant material
ENVIRONMENT
High and low temperature resistant
OXIDATIVE
Antioxidants
INSTALL
Easy Installation
MATERIAL
Environmental Protection
FAQ
1
Who are we?
We are based in Zhejiang, China, start from 2021,sell to Domestic Market(70.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3
What can you buy from us?
DC Solar Cable,Solar PV Connector,Solar Extension Cable,Solar Tool Kits.
4
Why should you buy from us not from other suppliers?
Founded in 2011 in Ningbo, China, PNTECH is one the leading suppliers for solar cables, solar connectors of the highest level of quality. At PNTECH, we strive to meet 100% of our customer requirements and deliver quality products on time through contine.
5
What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:English,Chinese
