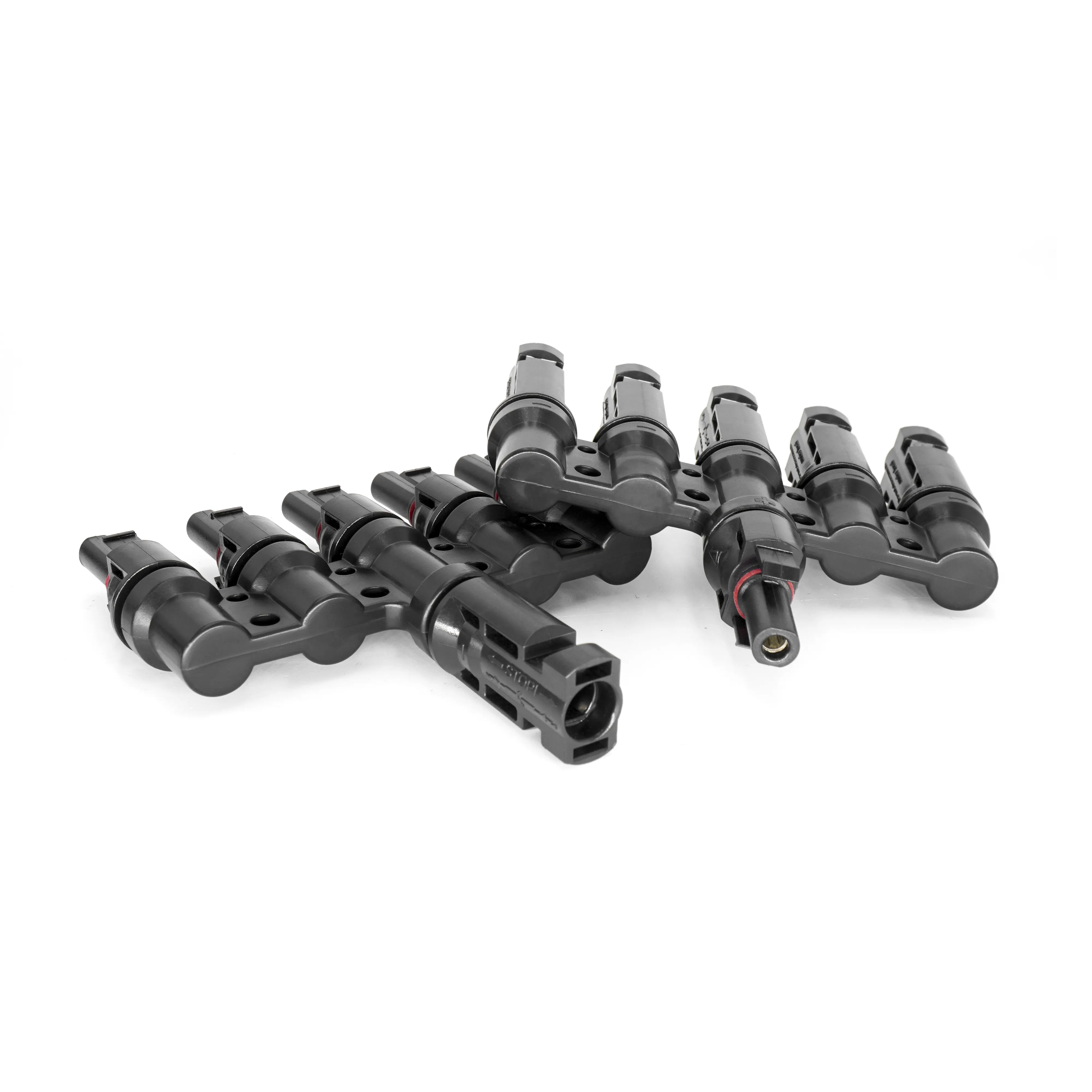

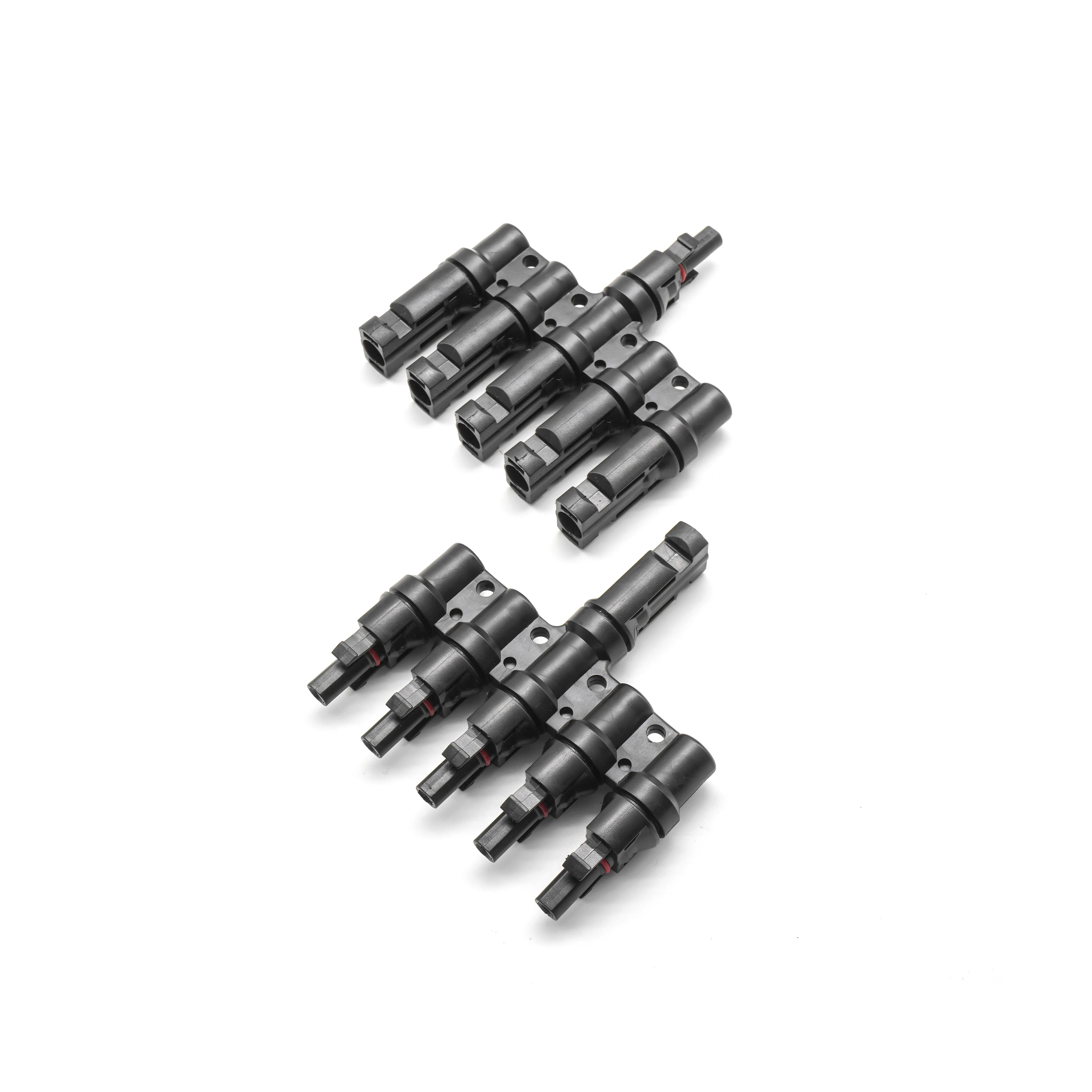

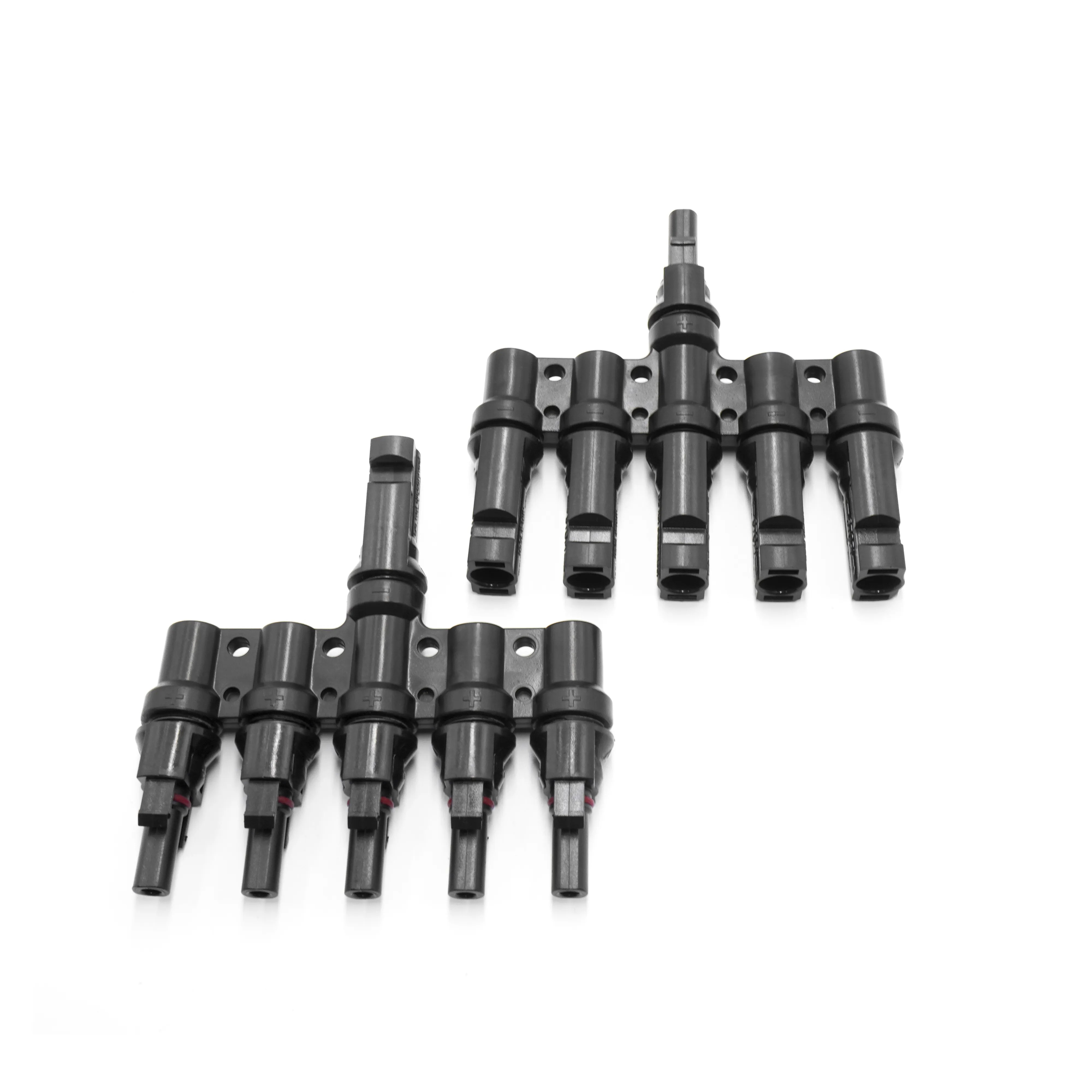

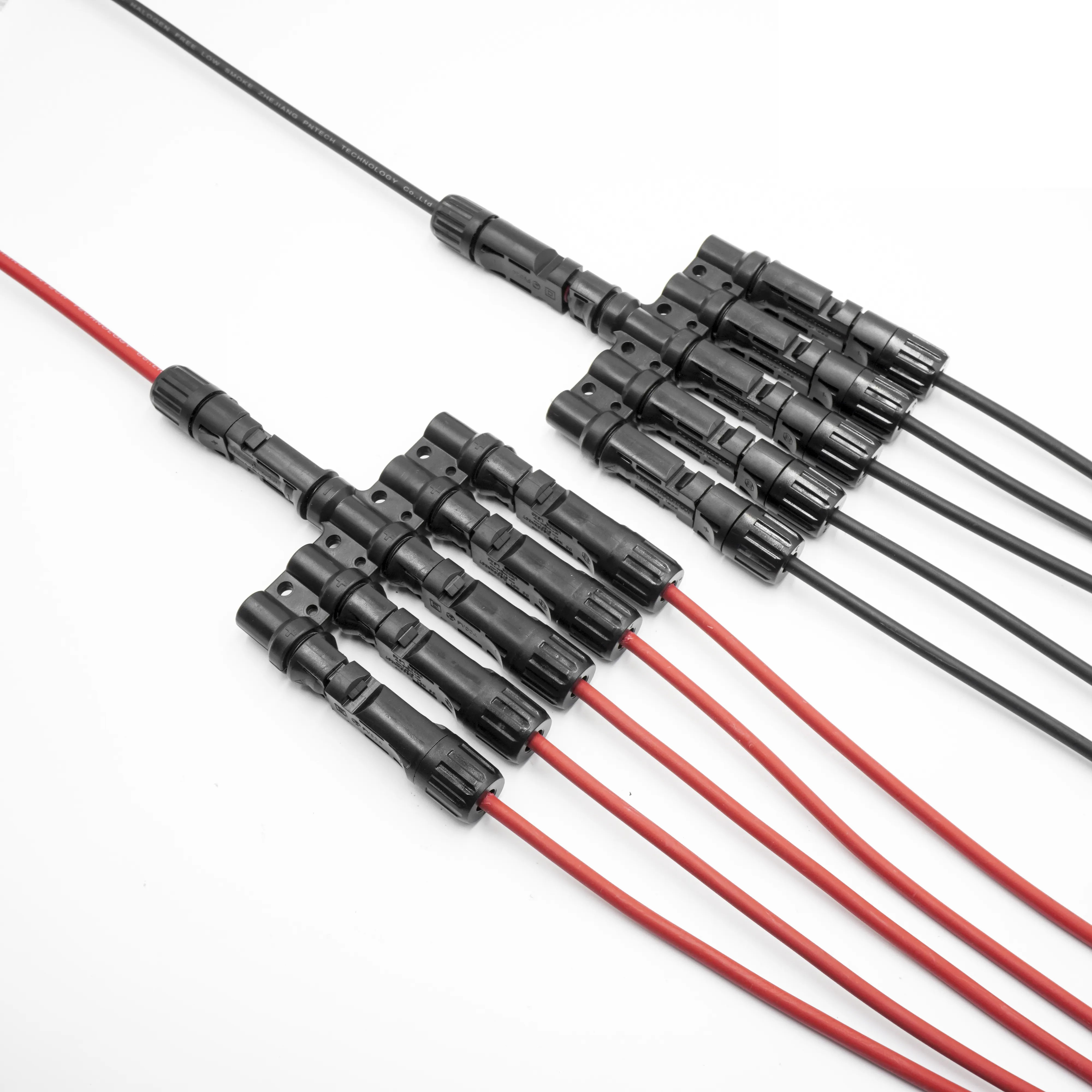

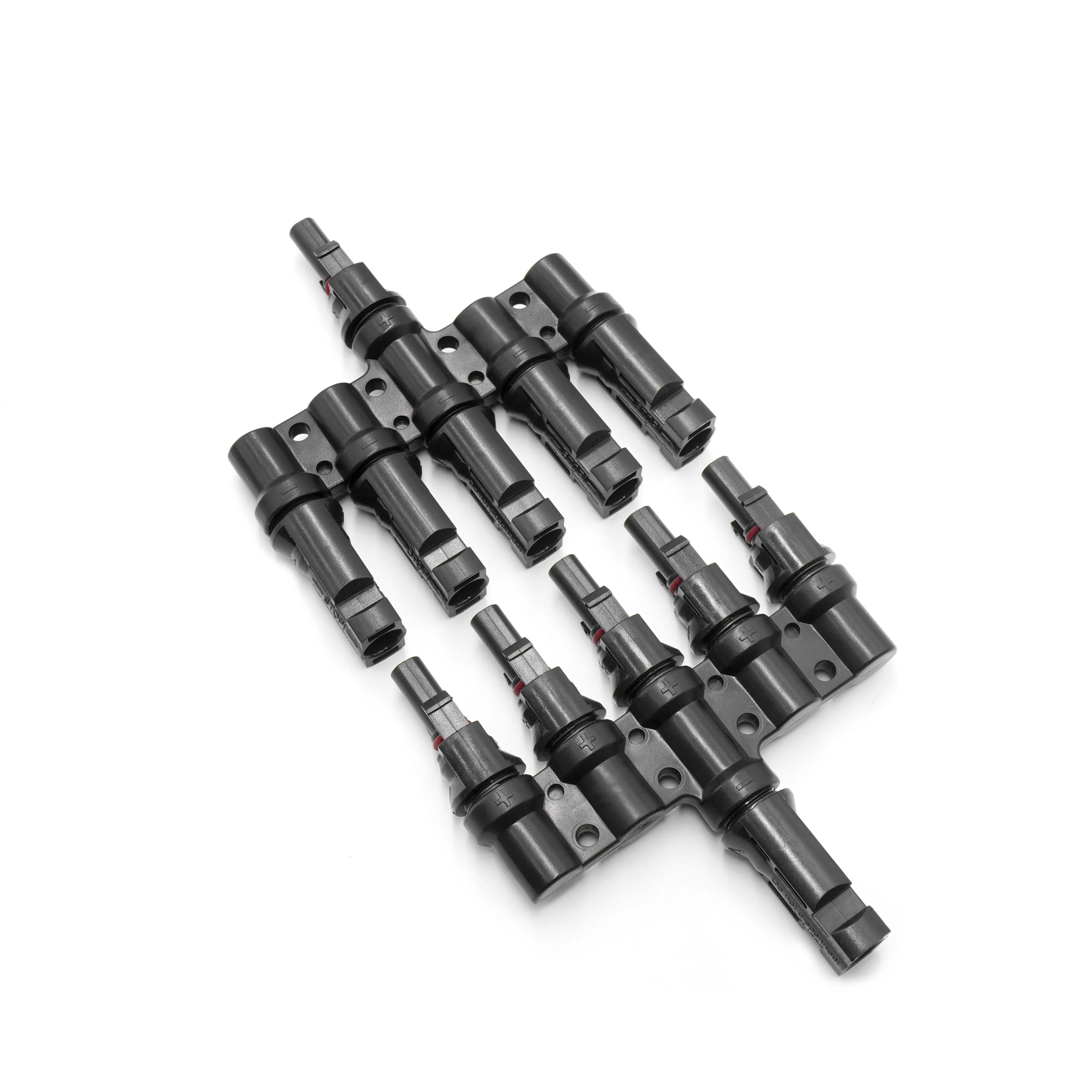

Product details of the solar photovoltaic connector

Quick Overview

Any materials used in the production of PNTECH solar photovoltaic connector is 100% safe. Our solar photovoltaic connector has the best performance/price ratio. The product is deeply trusted by customers from all over the world for its high quality.

Product Description

solar photovoltaic connector's details are presented below. They help better know the product.

STYLE	Photovoltaic connector	DOCUMEN NO	PNTK-P4-008
SIZE	PV004-T5
CONSTRUCTION FIGURE
STANDARD BASIS		IEC 62852：2014
Rated voltage		DC 1000V
Rated current		30A
Contact material		Tinned copper
Insulation material		PC
Locking system		Locking type
Degree of protection		IP65
Ambient temperature range		-40℃~+85℃
Upper temperature limit		100℃
Contact resistance of plug connectors		≤0.5m Ω
Withstand voltage test		6.0KV，1min
Flame class		UL94-V0
compatibility		Compatible with MC4 connectors
Salt spray test		Degree of severity 6
Damp heat test		No damage occurred which could impair normal use
Assemblability		Insertion force ≤50N, withdrawal force ≥50N
Connector pulling force		≥200N
Warranty period		Twenty-five years
Packing quantity		50 sets/box



Product Details

PPO MATERIAL

High heat resistance, flame resistance, high strength, excellent electrical performance,abrasion resistance and environmental protection

O-RINGS

The connector socket adopts high quality sealing ring to effectively prevent dust and rain from invading

LOCK CATCH

Snap lock, stable self-locking Easy to open and close.

COMPATIBILITY

The product has strong compatibility and can be compatible with standard connectors in the market.

Products Features

Good Conductivity

High Heat Resistance

Flame Retardant

Environment protection

Wear Resisting

Water Resistant
