Professionalpv Wire Connectors for Sale
Product details of the pv wire connectors
Quick Overview
PNTECH pv wire connectors meets rigorous standards for quality and consistency. The product has withstood the tests of our professional QC team as well as the authoritative third party. It proves to be one of the most reliable and promising products in the market.
Product Introduction
PNTECH's pv wire connectors is processed based on advanced technology. It has excellent performances in the following details.
|
Product name
|
solar pv connector
|
|
Wire specifications
|
2mm²,4mm²,6mm²
|
|
Rated voltage
|
1500V DC
|
|
Rated Current
|
30A
|
|
Contact material
|
Tinned copper
|
|
Insulation material
|
PA66
|
|
Protection Degree
|
IP65/IP68
|
|
Ambient temperature
|
-40℃~+85℃
|
|
Upper temperature limit
|
100℃
|
|
Contact resistance
|
≤0.5mΩ
|
|
Flame class
|
UL94-V0
|
|
Type of connection
|
Crimping
|
|
Locking system
|
Embedded Locking type
|
|
Withstand voltage test
|
8.0KV，1min
|
|
Salt spray test
|
Degree of severity 6
|
|
Damp heat test
|
No damage occurred which could impair normal use
|
|
Assemblability
|
Insertion force ≤50N, withdrawal force ≥50N
|
|
Connector pulling force
|
≥200N
|
|
Warranty period
|
Twenty-five years
|
|
Packing quantity
|
500 sets/box
|
|
Standard
|
IEC 62852:2014
|

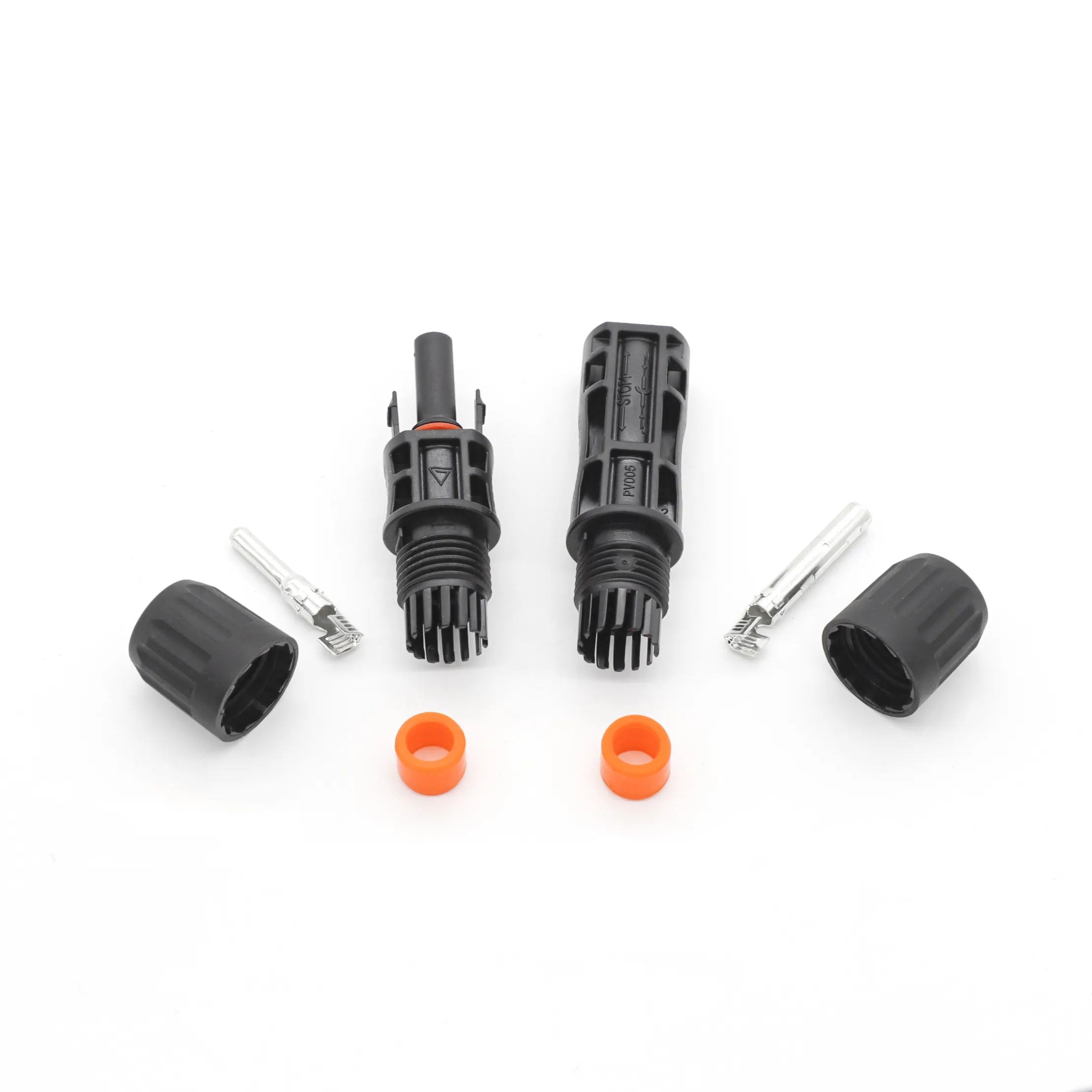

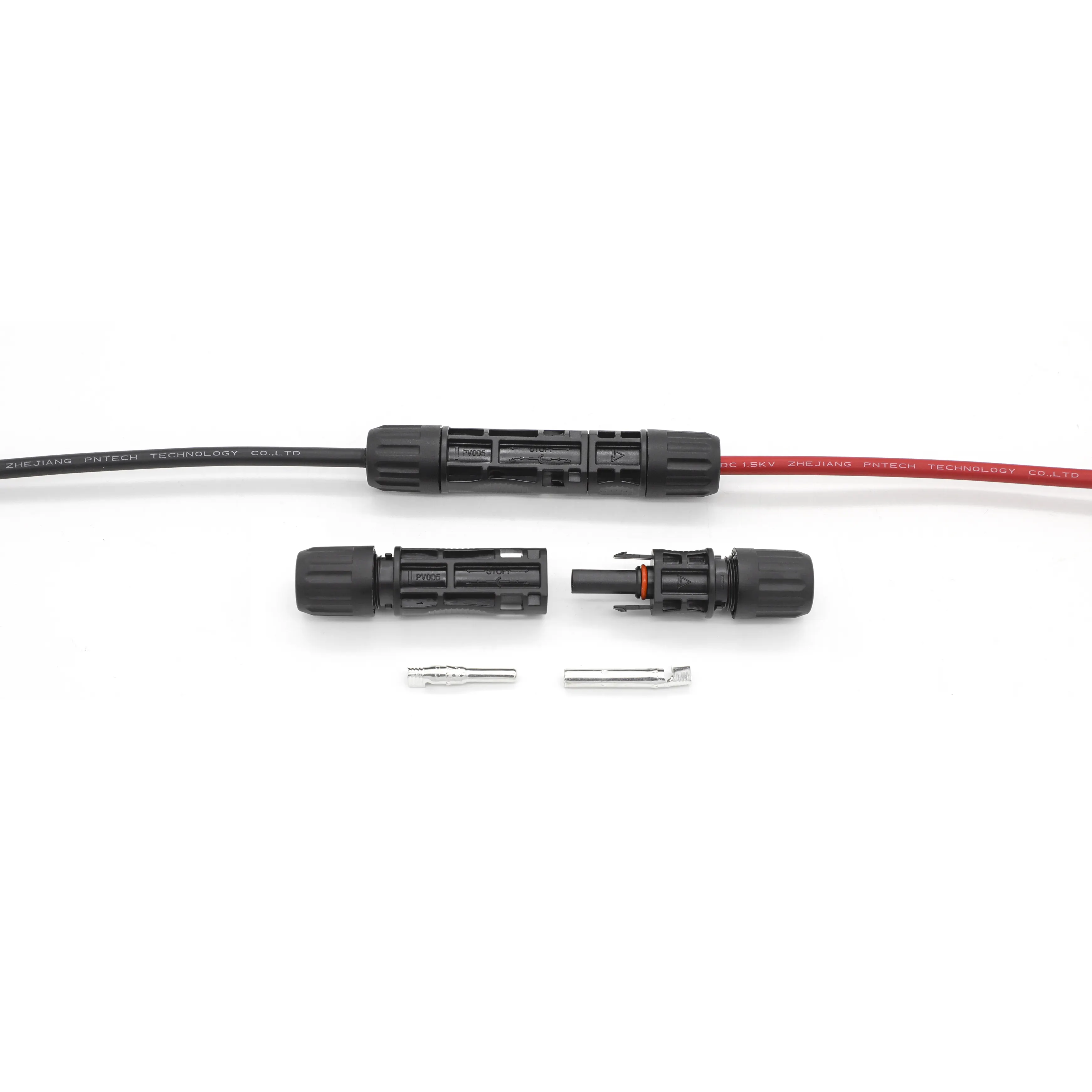

Product Details
Highly Conductive
Thickened copper core, tin-plated surface, not easy tO oxidise
High Quality Housings
PA66 material, fire retardant, high and low temperature resistance, UV resistan
SeIf-Locking
Connectors remain tight even after repeated plugging and unplugging, snap locking, not easy tO come off.
Products Features
FAQ
Company Introduction
Zhejiang Pntech Technology Co., Ltd. is a company situated in Our main business is to provide customers with high-quality Solar PV Cable,PV Cable,Solar PV Connector,Solar Tool Kits (Only Sales). Based on the needs of our customers, PNTECH provides competitive solutions and services in a targeted manner. We determine quality with details, and continue to create maximum value for our customers. We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
No.108, West of Yinxian Avenue. HaishuDistrict, Ningbo, Zhejiang, China, 315012
