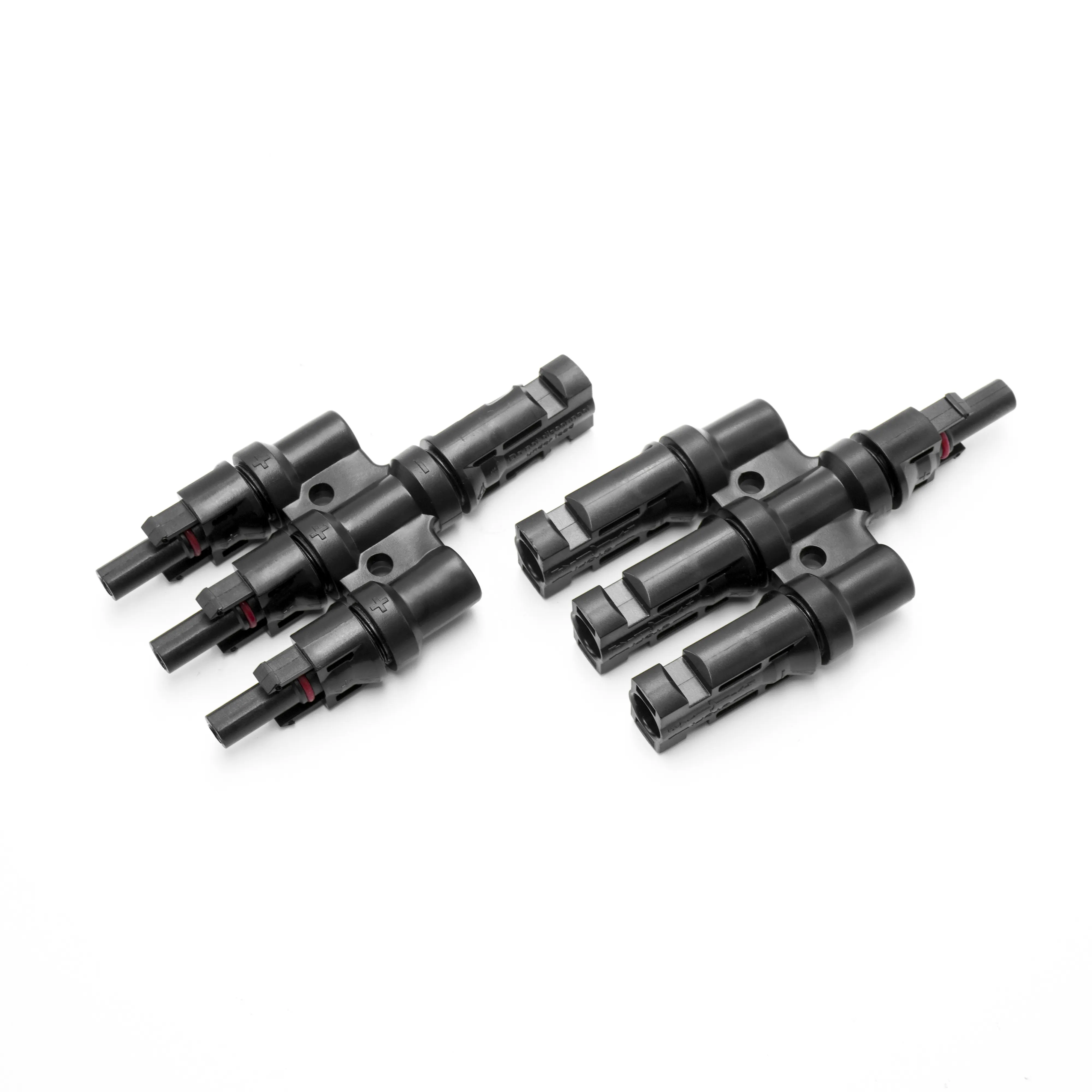

Product details of the t connector solar
Product Introduction
The production processes for PNTECH t connector solar are primarily based on renewable resources. It continuously set and then exceed the standard for what it should be. The product is in high demand in the market for its great economic benefits and is considered to be more applied in the future.
|
STYLE
|
Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P4-006
|
| SIZE |
PV004-T3
|
||
|
CONSTRUCTION
FIGURE
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Rated voltage |
DC 1000V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PC
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
6.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Packing quantity |
100 sets/box
|
||
Product Details
PPO MATERIAL
High heat resistance,flame resistance,high strength,excellent electrical performance,abrasion resistance and environmental protection
O-RINGS
The connector socket adopts high quality sealing ring to effectively prevent dust and rain from invading.
Lock Catch
Snap lock,stable self-locking Easy to open and close
COMPATIBILITY
The product has strong compatibility and can be compatible with standard connectors in the market.
Products Features
