Practical Solar Power Components for Sale Solar Power Components for Sale Company
Product details of the solar power components for sale
Product Overview
The raw materials of PNTECH solar power components for sale is only selected from vendors of the industry. The product is exceptional in terms of durability and requires the least maintenance. The solar power components for sale produced by PNTECH has a wide range of applications. Enhancing service of PNTECH will facilitate the improvement of brand image.
Product Information
Next, PNTECH will present you with the specific details of solar power components for sale.

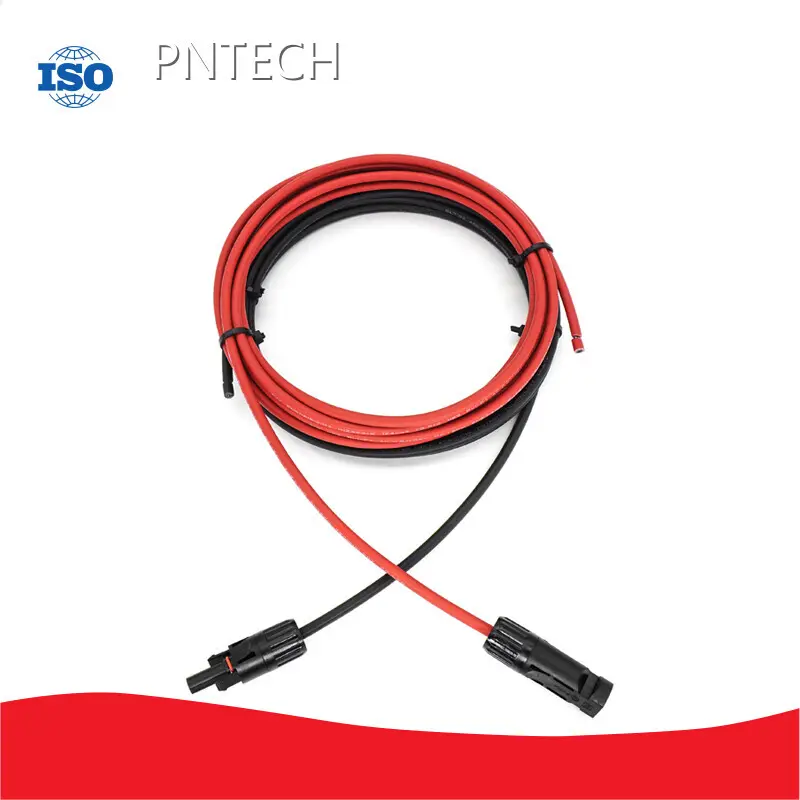

| STYLE | Photovoltaic extension cable | DOCUMEN NO | PNTK-D0-001 | |||
| SIZE | DC-00 | |||||
| CONSTRUCTIONFIGURE | ||||||
| STANDARD BASIS UL6703＆UL4703 | ||||||
| Match wire specifications | 14AWG，12AWG，10AWG，8AWG | |||||
| Rated voltage | DC 1000V/1500V | |||||
| Rated current | 30A | |||||
| Connector type | PV004/PV005 | |||||
| Photovoltaic cable type | PV WIRE | |||||
| Photovoltaic cable color | Positive red, negative black | |||||
| Degree of protection | IP65/IP68 | |||||
| Ambient temperature range | -40℃~+85℃ | |||||
| Upper temperature limit | 100℃ | |||||
| Connector contact resistance | ≤0.5m Ω | |||||
| Withstand voltage test | 6.0/8.0KV，1min | |||||
| Flame class | UL94-V0 | |||||
| compatibility | Compatible with MC4 connectors | |||||
| Salt spray test | Degree of severity 6 | |||||
| Damp heat test | No damage occurred which could impair normal use | |||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | |||||
| Connector pulling force | ≥200N | |||||
| Warranty period | Twenty-five years | |||||
| Length | Customized according to customer requirements | |||||
| Packing quantity | According to customer requirements | |||||
Product Details
Quality tinned copper
Tin plating process, oxidation resistance, good conductivity, 99.98% pure copper, low resis-tance.
High quality connector
PC EXL9330C material, tinned copper inner core, flame retardant, high and low temperature resistant, UV resistant.
High quality insulation
The cable is XLPO, flame retardant,high and low temperature resistant,UV resistance and corrosion resistance
Brand printing
PNTECH logo is printed on the line,with clear printing,Buying a brandis more guaranteed.
Products Features
FAQ
Company Information
With a good reputation in the field of solar power components for sale, Zhejiang Pntech Technology Co., Ltd. is becoming a key player in the overseas markets. To be a better forward solar power components for sale supplier, PNTECH applies the most modern and advanced technology and machines. Zhejiang Pntech Technology Co., Ltd. aims to create an international solar power components for sale brand. Please contact us!
We have been providing high quality solar power components for sale for a long time. We look forward to working with you.
No.108, West of Yinxian Avenue. HaishuDistrict, Ningbo, Zhejiang, China, 315012
