PNTECH Solar Pv Installation Tools Highly Rated
Product details of the solar pv installation tools
Product Introduction
PNTECH solar pv installation tools is manufactured under the guidance of skilled professionals using optimum grade materials. Product quality has been recognized by international authoritative testing organizations. Zhejiang Pntech Technology Co., Ltd. says it will strengthen the sales network in the future.
| STYLE | Photovoltaic connector | DOCUMEN NO | PNTK-P4-003 | |||

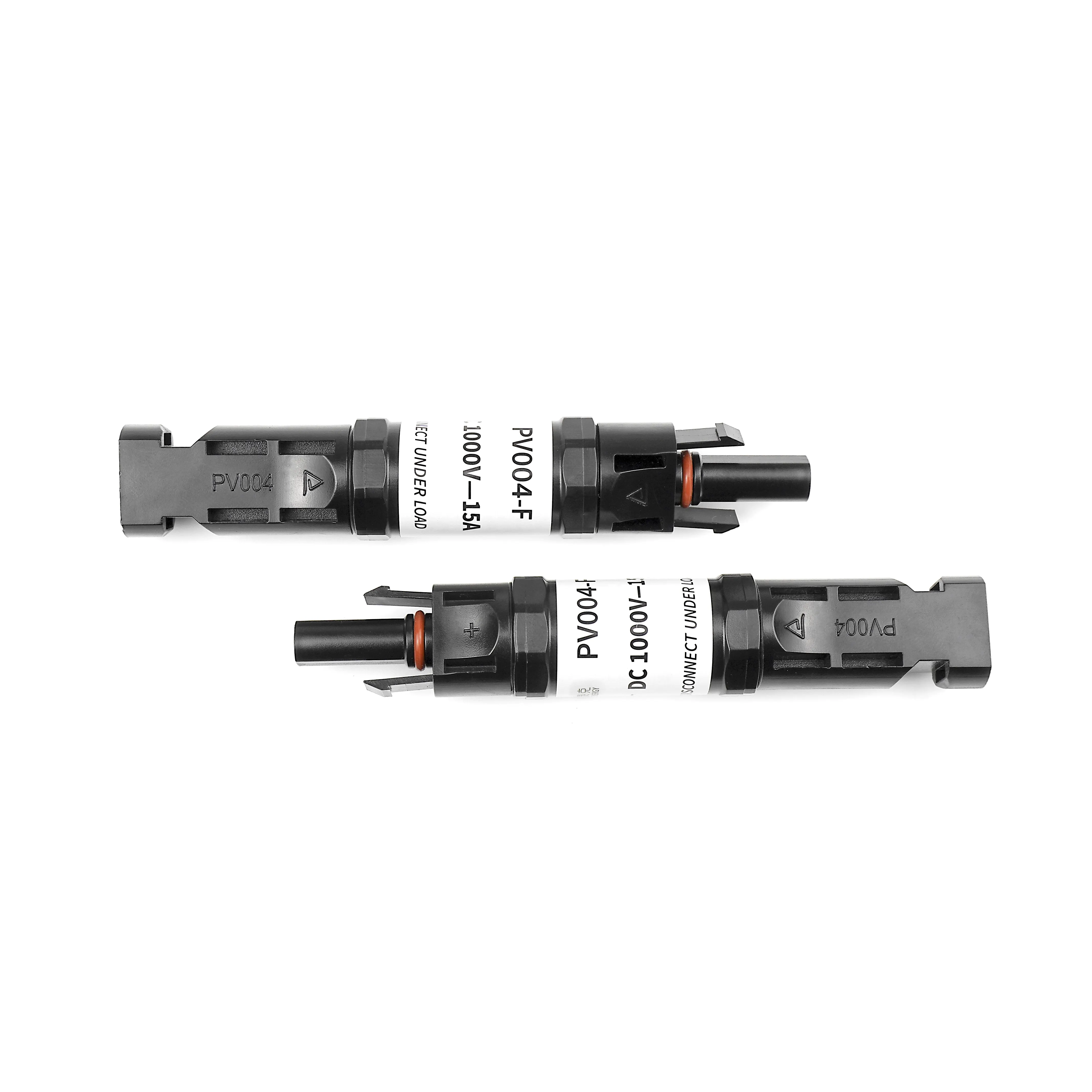

| SIZE | PV004-F | |||||
| CONSTRUCTIONFIGURE | ||||||
| STANDARD BASIS | IEC 62852：2014 | |||||
| Rated voltage | DC 1000V | |||||
| Rated current | 10A、15A、20A、30A | |||||
| Contact material | Tinned copper | |||||
| Insulation material | PC | |||||
| Locking system | Locking type | |||||
| Degree of protection | IP65 | |||||
| Ambient temperature range | -40℃~+85℃ | |||||
| Upper temperature limit | 100℃ | |||||
| Contact resistance of plugconnectors | ≤0.5m Ω | |||||
| Withstand voltage test | 6.0KV，1min | |||||
| Flame class | UL94-V0 | |||||
| compatibility | Compatible with MC4 connectors | |||||
| Salt spray test | Degree of severity 6 | |||||
| Damp heat test | No damage occurred which could impair normal use | |||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | |||||
| Connector pulling force | ≥200N | |||||
| Warranty period | Twenty-five years | |||||
| Packing quantity | 500 sets/box | |||||

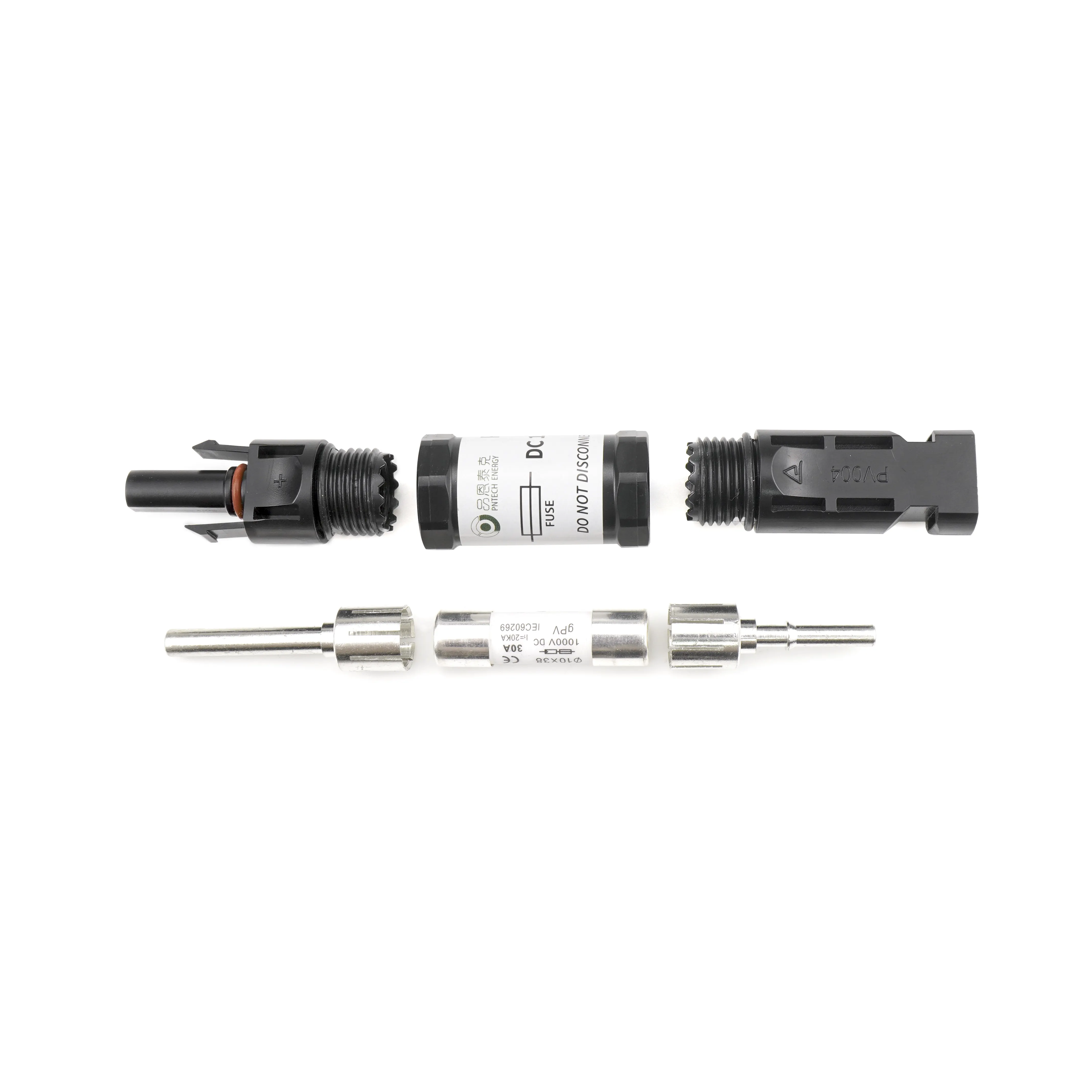

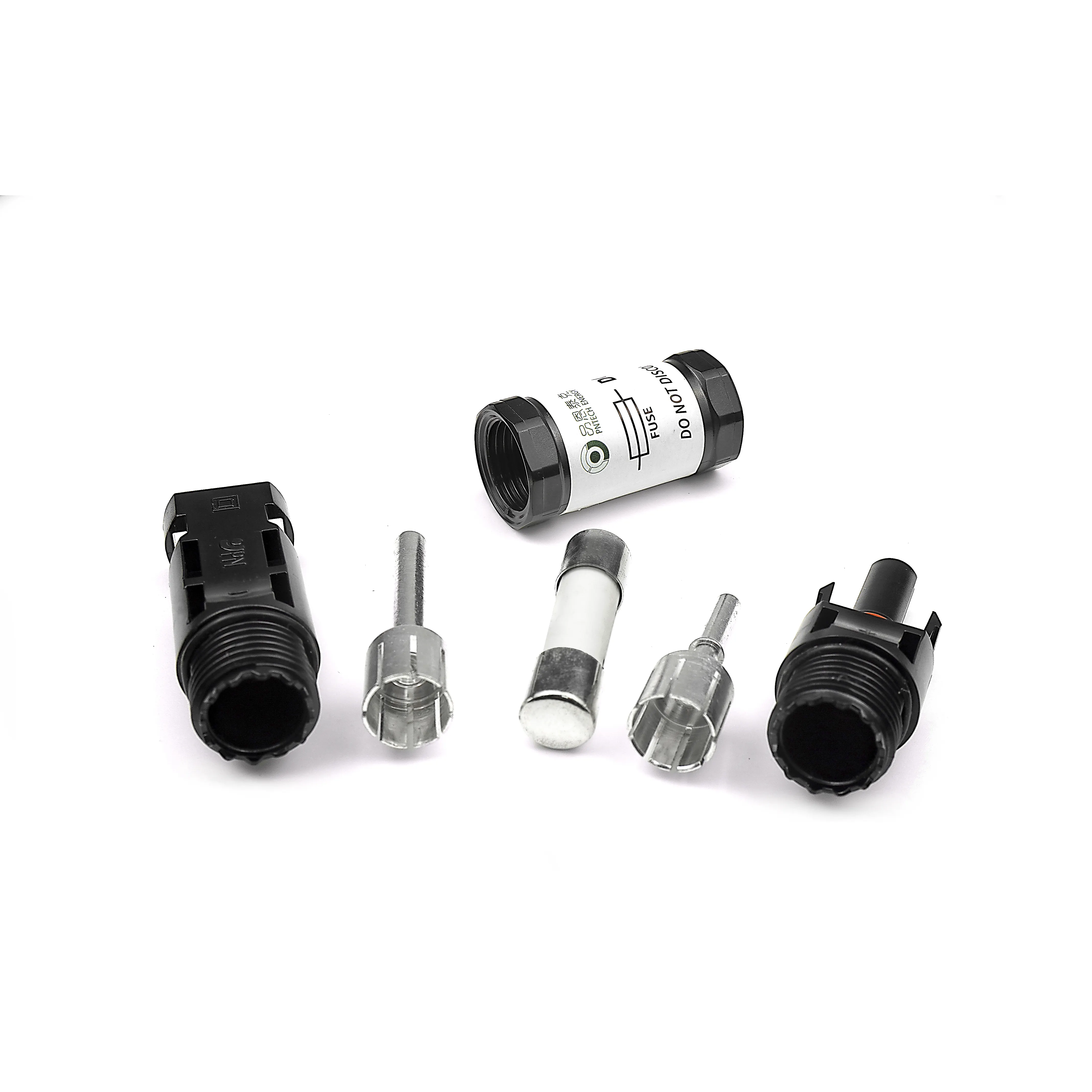

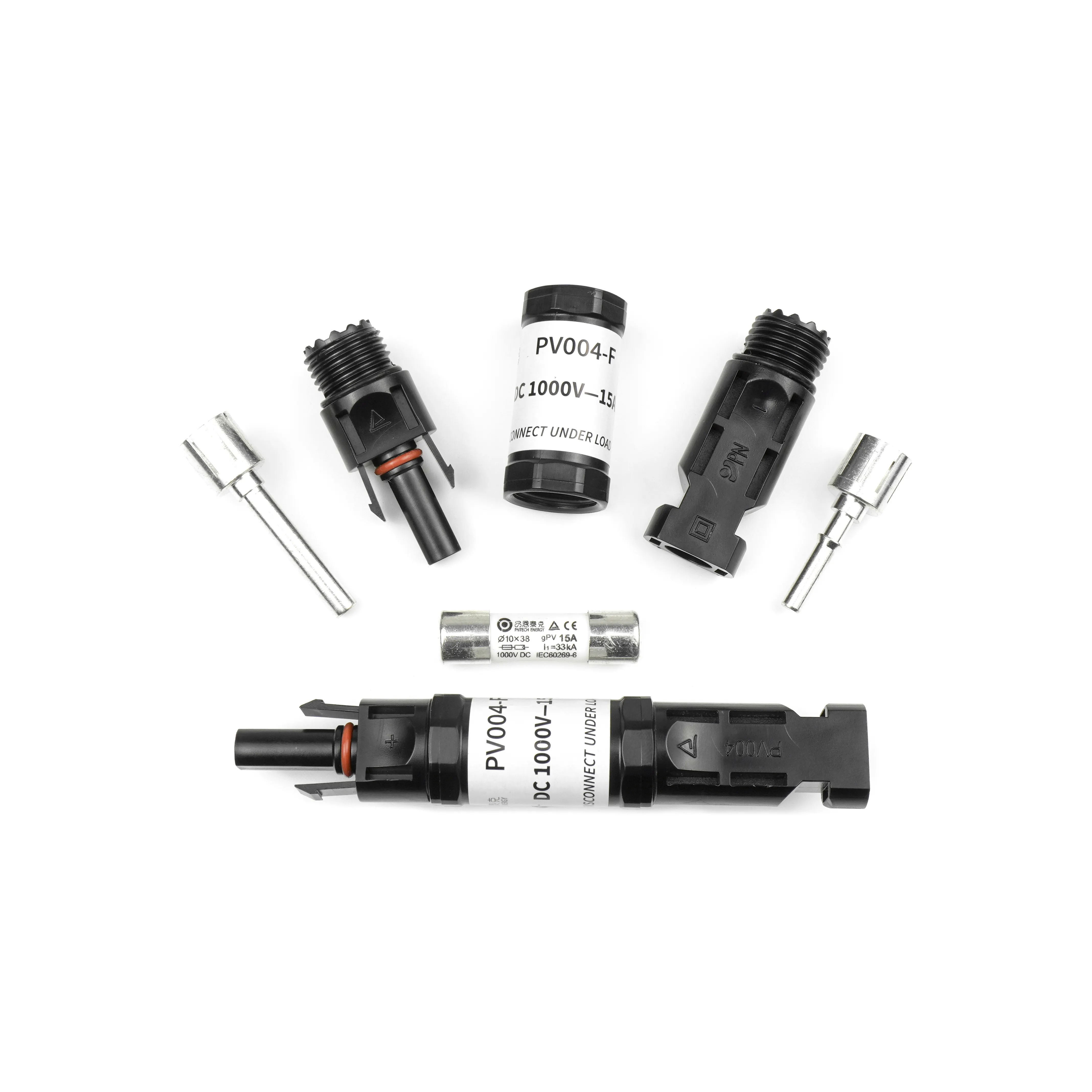

Product Details
PC EXL9330
The shell is made of high-quality PC EXL9330C,flame retardant,high and low temperature resistant,UV resistant and corrosion resistant.
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Thickening the core
Each fuse connector is equipped with a thickened core with a voltage rating of 1000V DC,which prevents the high current from damaging important components in the circuit or causing a fire.
Products Features
FAQ
Company Feature
• PNTECH pays attention to product quality and technological innovation. We introduce advanced quality control equipment and have a group of professional and capable talents teams. All this greatly supports long-term development.
• We select high-quality products for delivery, and manage them in integrity. They are exported to major cities and highly praised by consumers.
• PNTECH owns a superior geographical location. There are traffic convenience, elegant ecological environment, and abundant natural resources.
• Founded in our company has explored a unique development path through the hard work of years.
PNTECH's products are supplied directly by the factory. You can enjoy really a favorable price. If you have any need, please contact us.
