Product details of the solar module connectors
Quick Overview
PNTECH solar module connectors is manufactured by making use of their understanding of market knowledge. The product not only has passed the domestic quality standards but also has been approved by many international certificates. Zhejiang Pntech Technology Co., Ltd. will highly value the importance of package for solar module connectors.
Product Introduction
PNTECH pays great attention to details. And the details of solar module connectors are as follows.
| STYLE | Photovoltaic connector | DOCUMEN NO | PNTK-P4-001 | |||
| SIZE | PV004 | |||||
| CONSTRUCTIONFIGURE | ||||||
| STANDARD BASIS | IEC 62852：2014 | |||||
| Match wire specifications | 2.5mm² , 4mm² , 6mm² | |||||
| Rated voltage | DC 1000V | |||||
| Rated current | 30A | |||||
| Contact material | Tinned copper | |||||
| Insulation material | PC | |||||
| Type of connection | Crimping | |||||
| Locking system | Locking type | |||||
| Degree of protection | IP65/IP67 | |||||
| Ambient temperature range | -40℃~+85℃ | |||||
| Upper temperature limit | 100℃ | |||||
| Contact resistance of plugconnectors | ≤0.5m Ω | |||||
| Withstand voltage test | 6.0KV，1min | |||||
| Flame class | UL94-V0 | |||||
| compatibility | Compatible with MC4 connectors | |||||
| Salt spray test | Degree of severity 6 | |||||
| Damp heat test | No damage occurred which could impair normal use | |||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | |||||
| Connector pulling force | ≥200N | |||||
| Warranty period | Twenty-five years | |||||
| Packing quantity | 500 sets/box | |||||

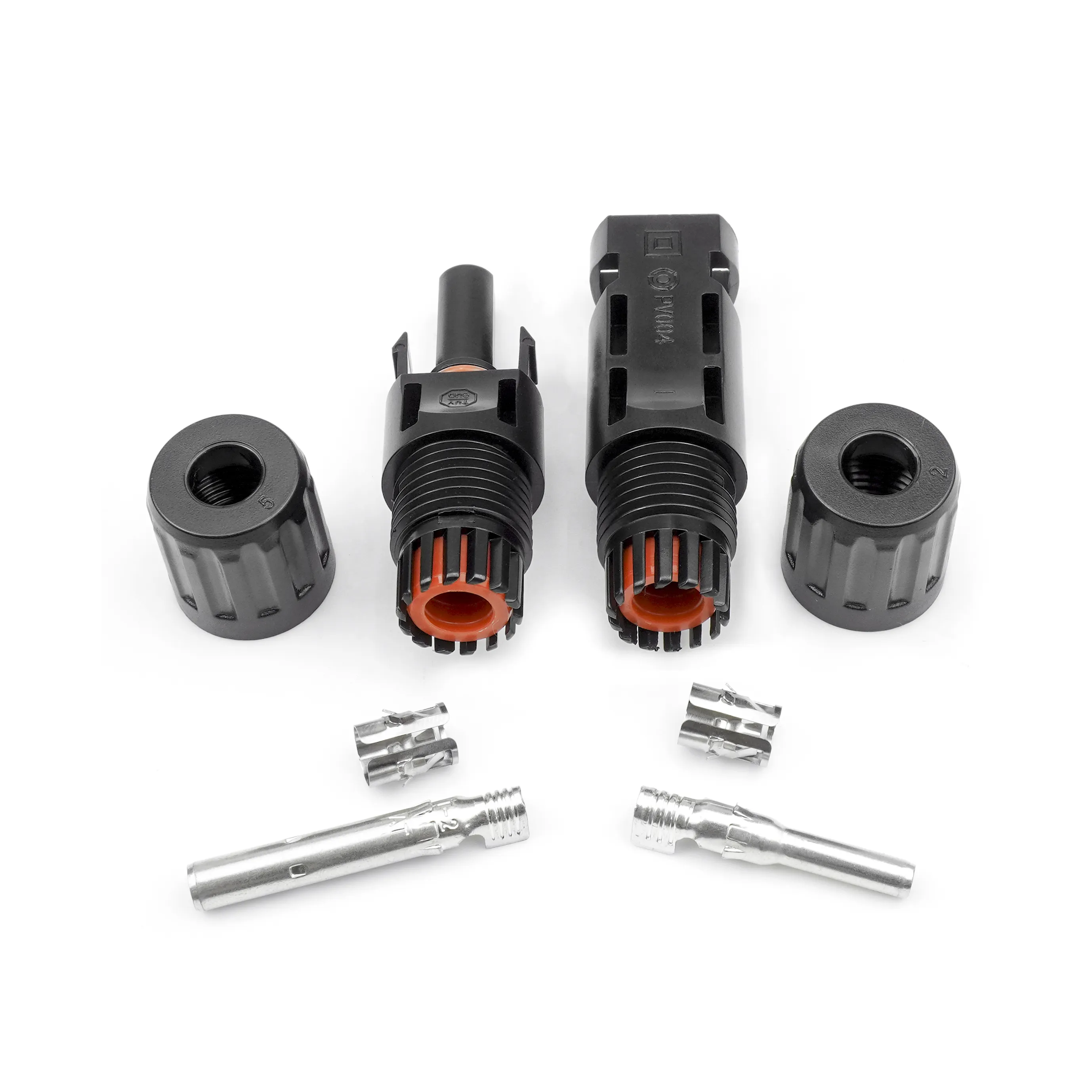

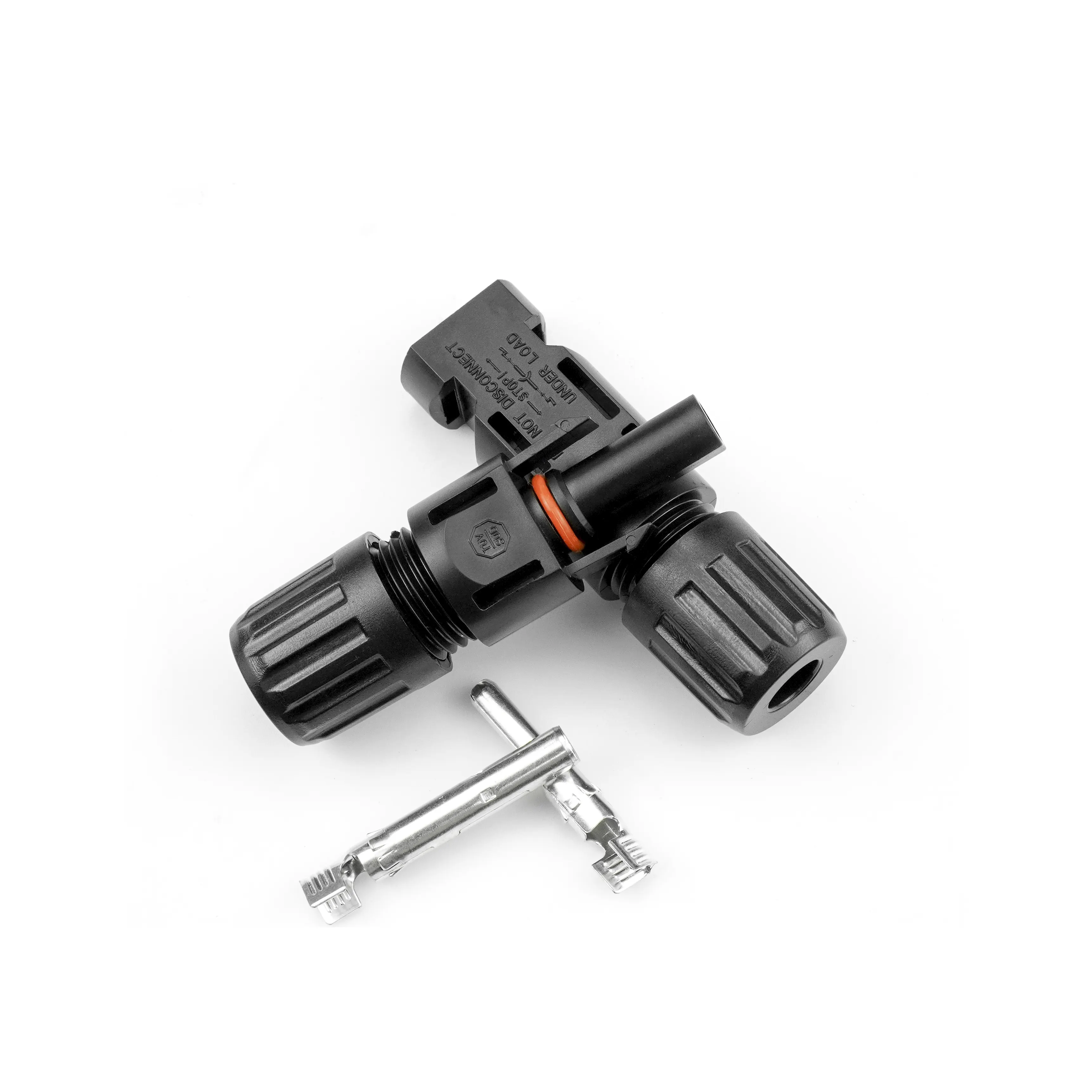

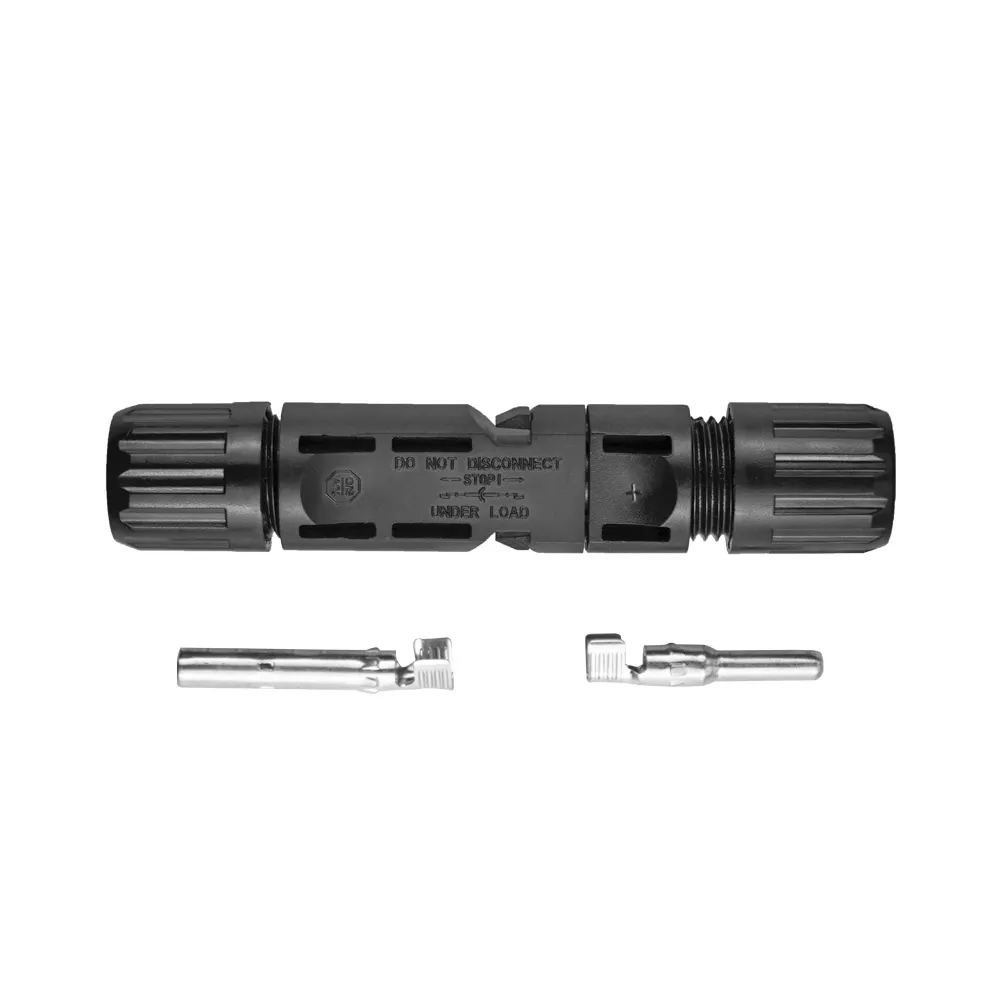

Product Details
PPO MATERIAL
High heat resistance, flame resistance, high strength, excellent electrical performance,abrasion resistance and environmental protection

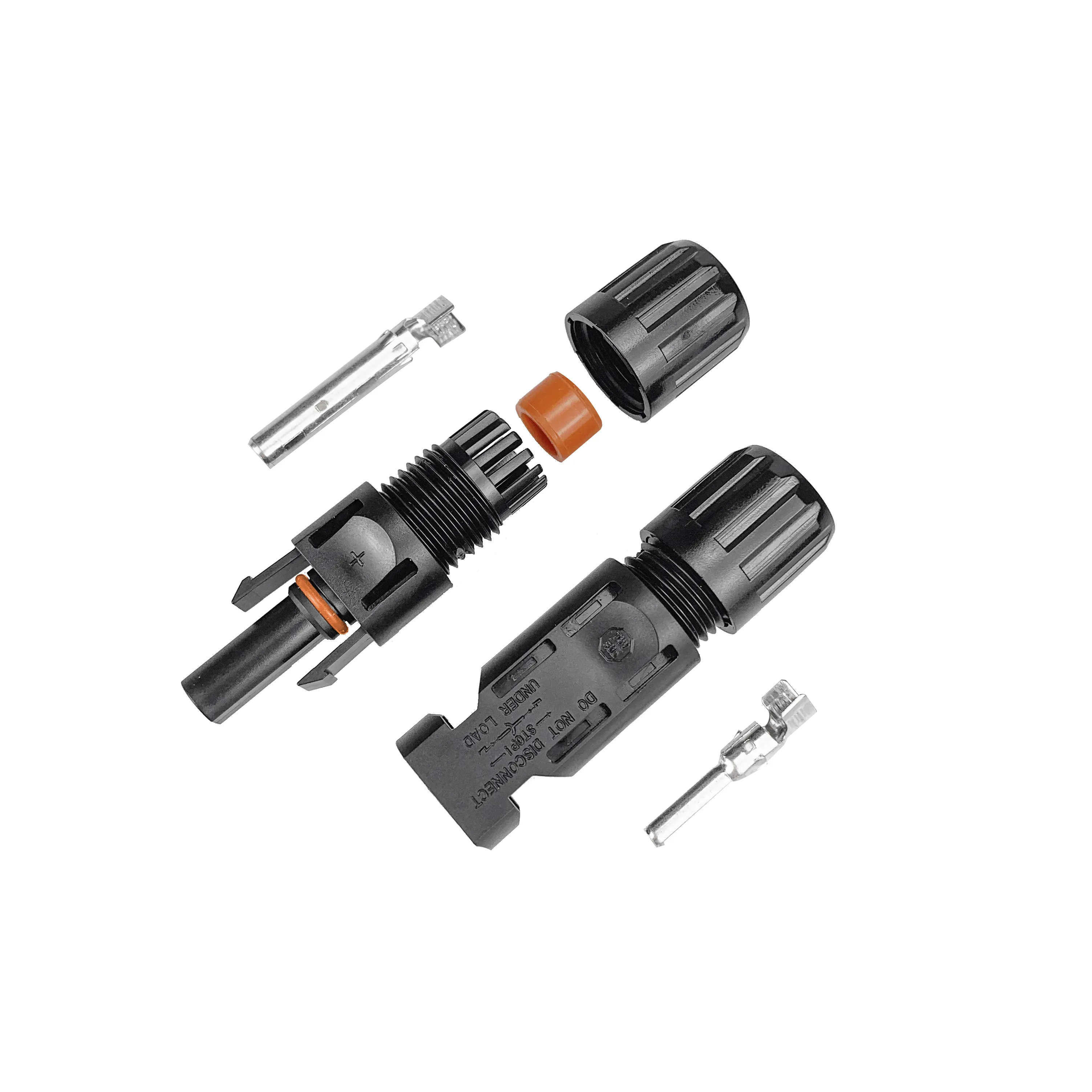

WATERPROOF RING O-RINGS
The connector socket adopts high quality sealing ring to effectively prevent dust and rain from invading
LOCK CATCH
Snap lock, stable self-locking Easy to open and close.
COMPATIBILITY
The product has strong compatibility and can be compatible with standard connectors in the market.
