Product details of the pv connector types
Quick Detail
Zhejiang Pntech Technology Co., Ltd. is willing to purchase high quality raw material rather than poor one in order to guarantee quality for pv connector types. The product abides by international quality standards. The reputation and competitiveness of Zhejiang Pntech Technology Co., Ltd. has raised apparently in recent years.
Product Information
PNTECH's pv connector types has been substantially improved in a scientific way, as shown in the following aspects.
|
STYLE
|

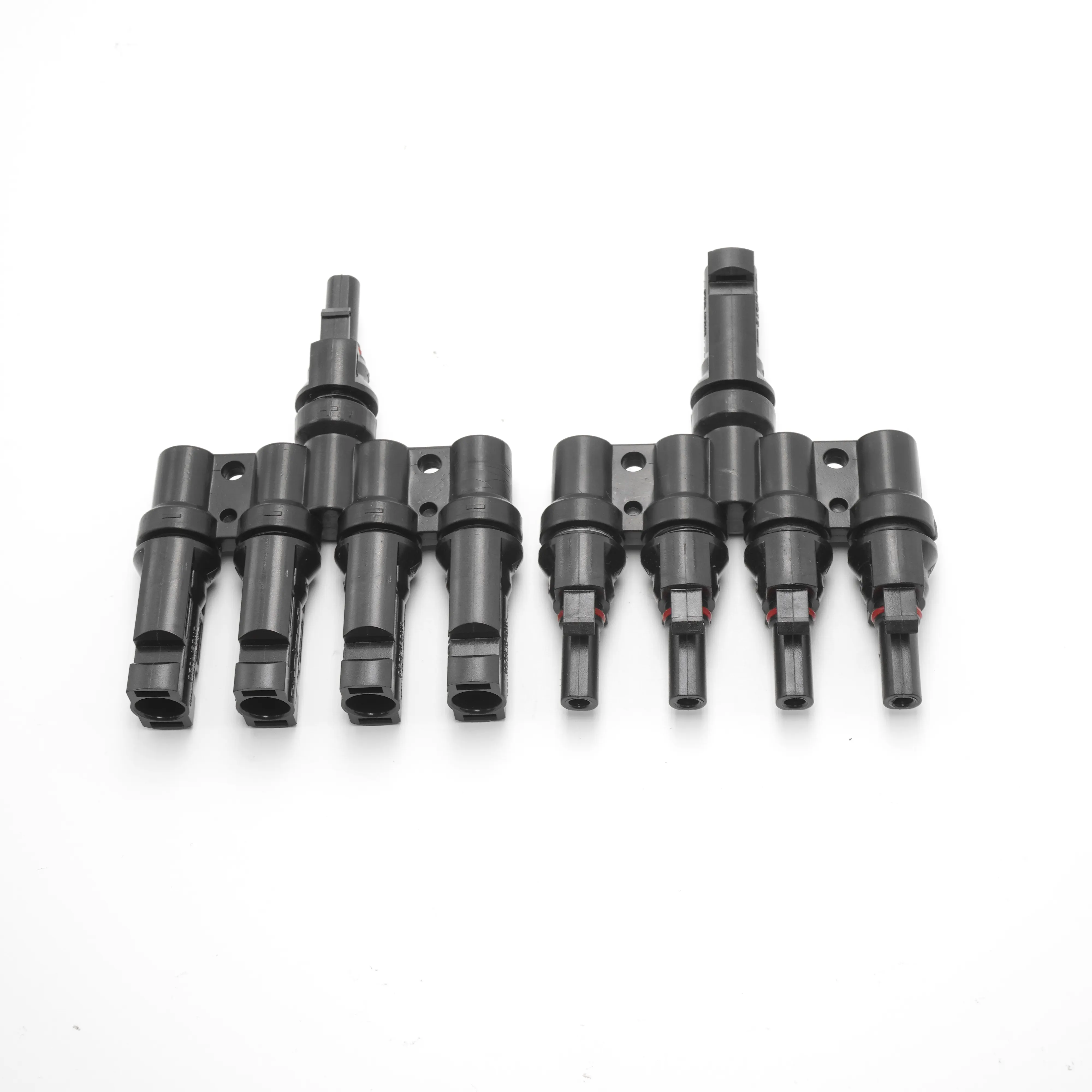

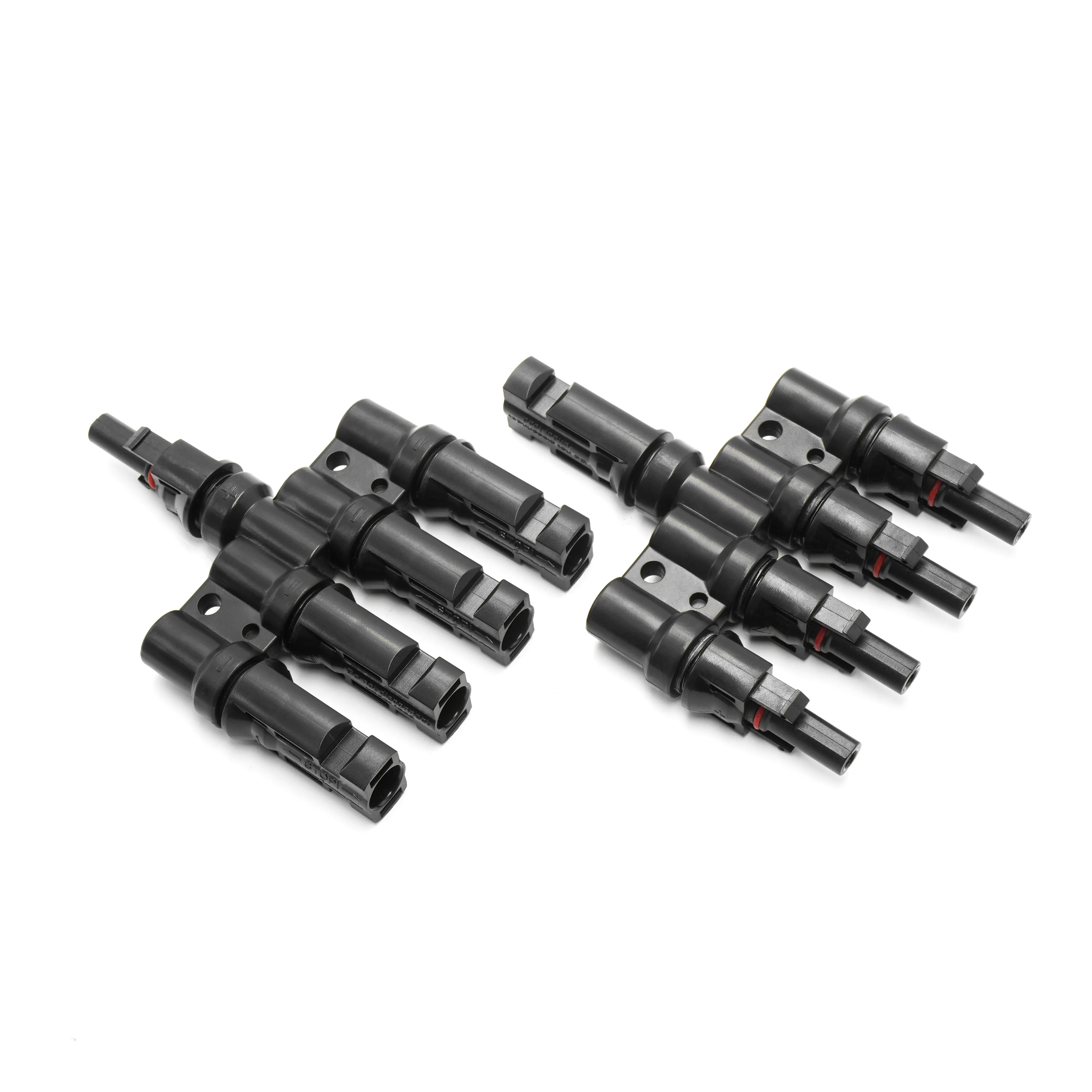

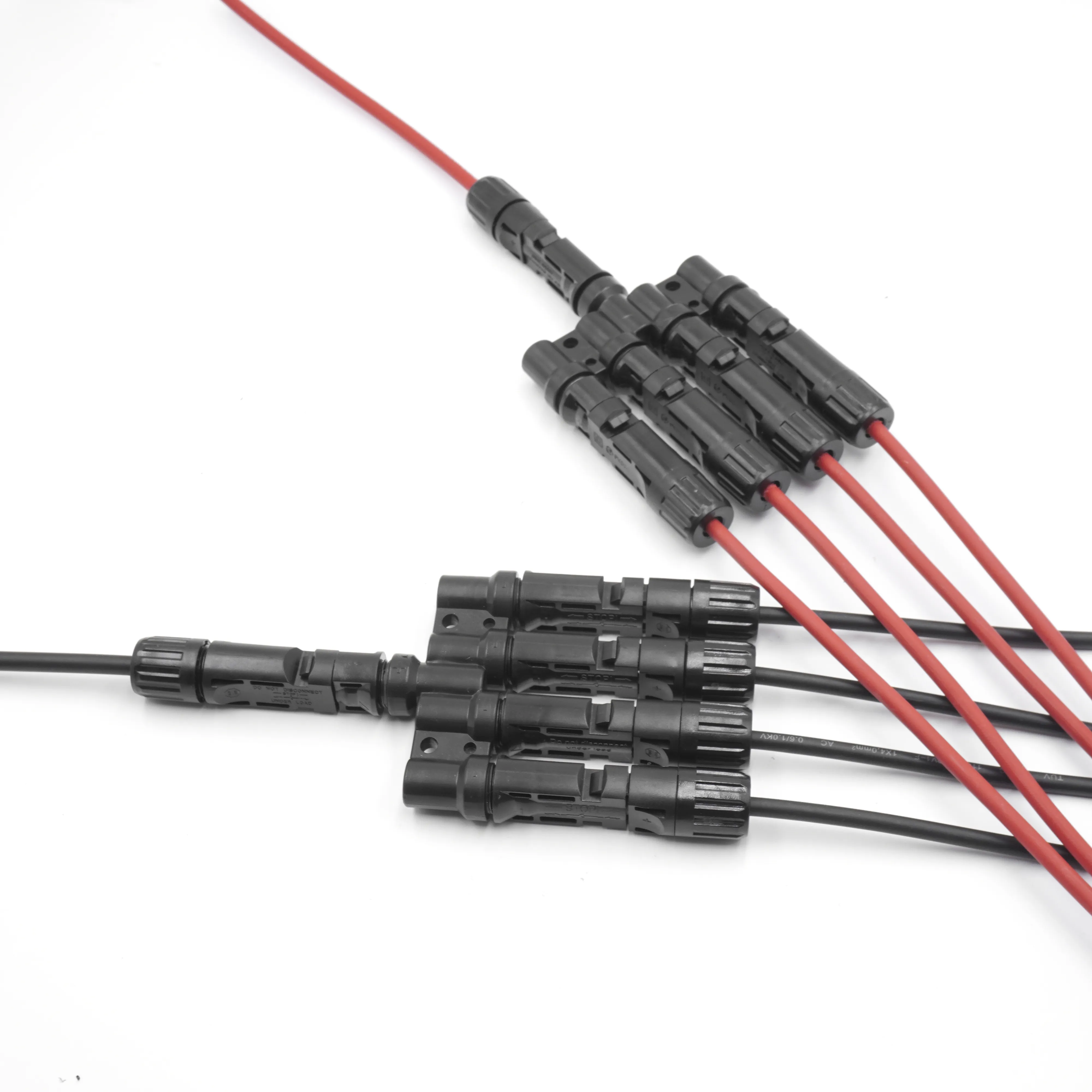

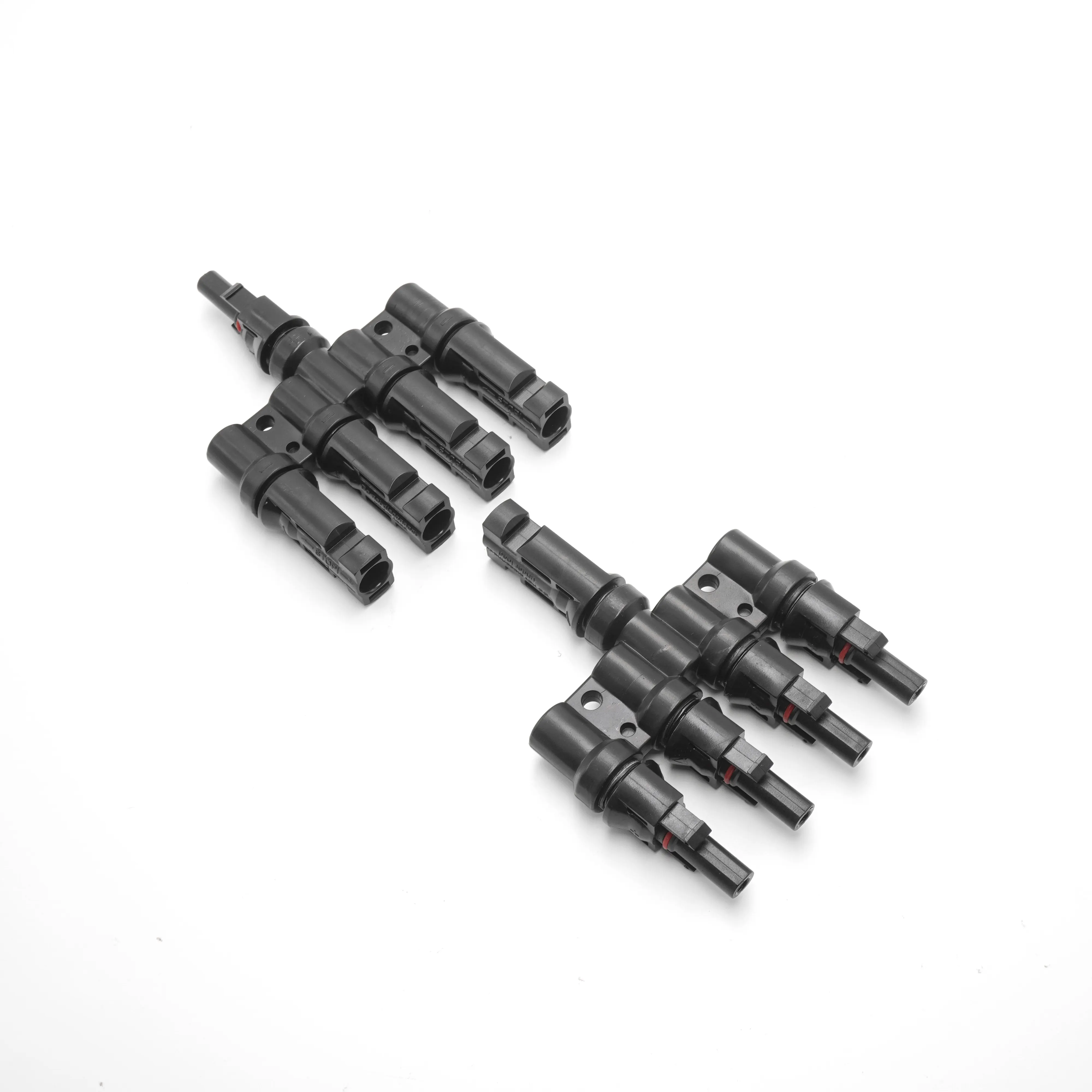

Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P4-007
|
| SIZE |
PV004-T4
|
||
|
CONSTRUCTION
FIGURE
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Rated voltage |
DC 1000V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PC
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
6.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Packing quantity |
100 sets/box
|
||
Product Details
PPO MATERIAL
High heat resistance, flame resistance, high strength, excellent electrical performance,abrasion resistance and environmental protection
O-RINGS
The connector socket adopts high quality sealing ring to effectively prevent dust and rain from invading
LOCK CATCH
Snap lock, stable self-locking Easy to open and close.
COMPATIBILITY
The product has strong compatibility and can be compatible with standard connectors in the market.
