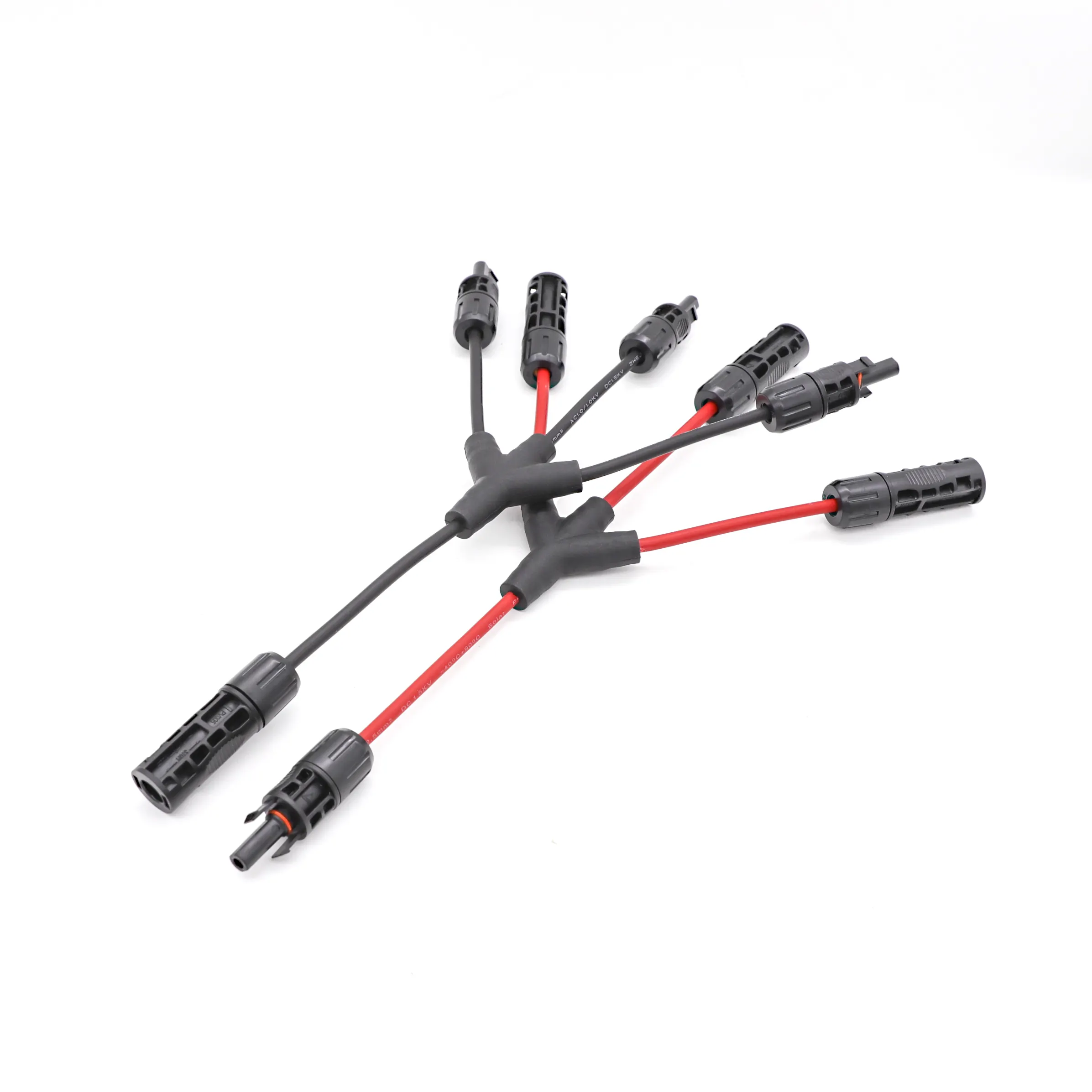

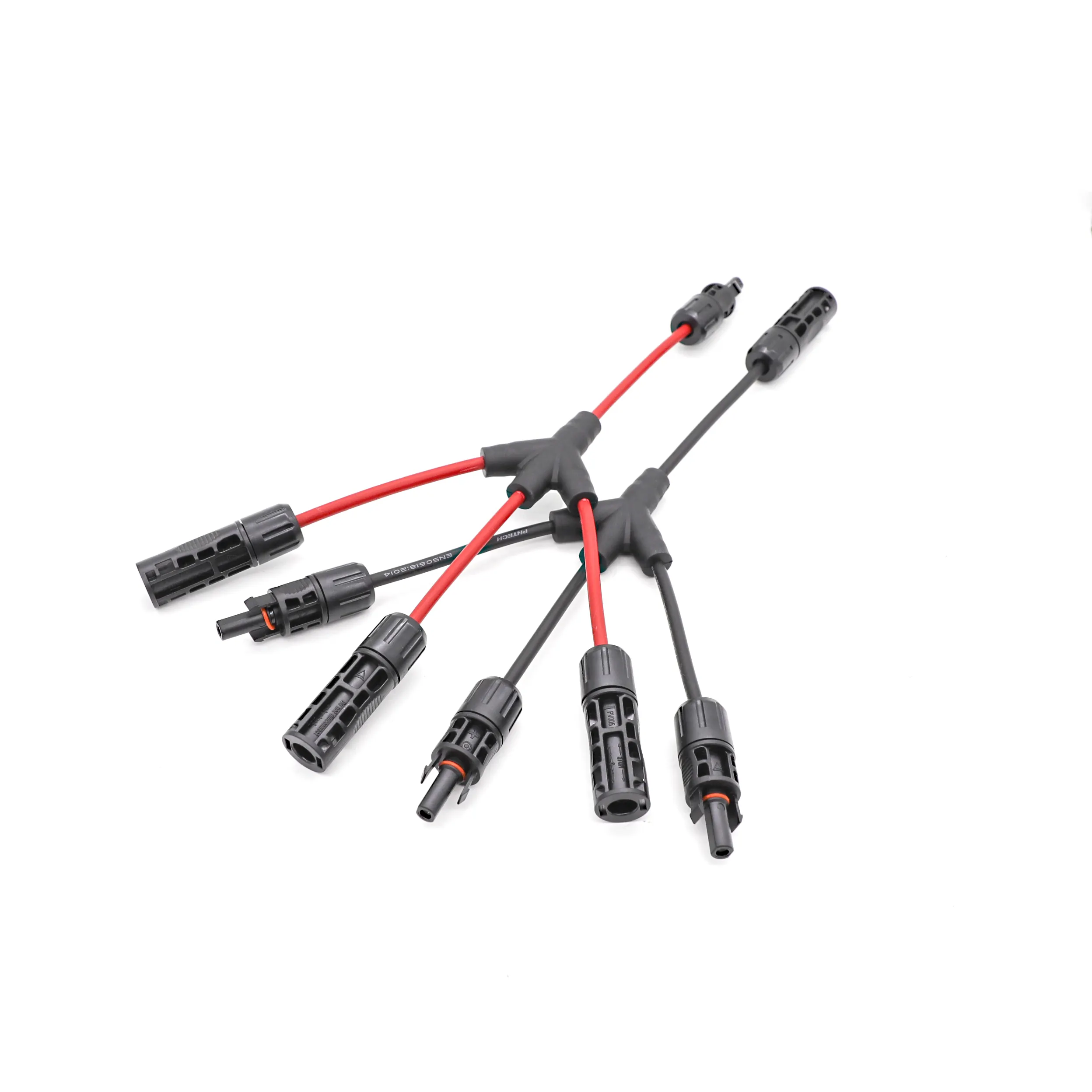

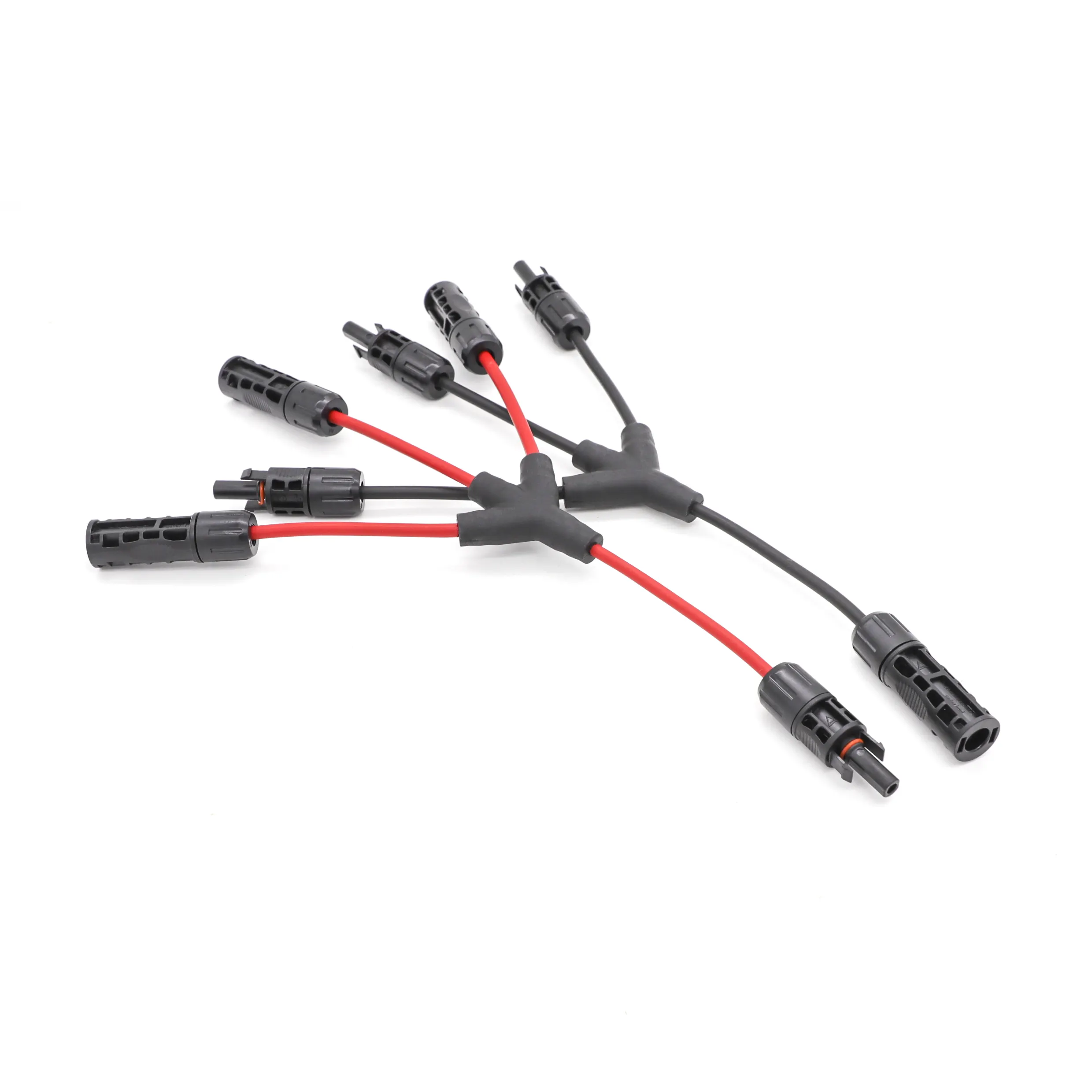

PNTECH Pv Cable Connectors Overseas Market

Product details of the pv cable connectors

Product Description

The advanced machines and equipment are made use of in the manufacturing PNTECH pv cable connectors to ensure its flawlessness. Its quality is guaranteed through the implementation of our rigorous control process for production. With years of continuous development, the product has gained support and trust of customers and is more extensively applied in the market.

STYLE	Photovoltaic connector	DOCUMEN NO	PNTK-P5-010
SIZE	PV005-3T1
CONSTRUCTION FIGURE
STANDARD BASIS		IEC 62852：2014
Rated voltage		DC 1500V
Rated current		30A
Contact material		Tinned copper
Insulation material		PPO/XLPO
Locking system		Locking type
Degree of protection		IP65
Ambient temperature range		-40℃~+85℃
Upper temperature limit		100℃
Contact resistance of plug connectors		≤0.5m Ω
Withstand voltage test		8.0KV，1min
Flame class		UL94-V0
compatibility		Compatible with MC4 connectors
Salt spray test		Degree of severity 6
Damp heat test		No damage occurred which could impair normal use
Assemblability		Insertion force ≤50N, withdrawal force ≥50N
Connector pulling force		≥200N
Warranty period		Twenty-five years
Input/output cable specifications		1×4mm²/1×4mm²
Packing quantity		60 sets/box



Product Details

HIGH QUALITY CONNECTOR

PV40Z material, tinned copper inner core, flame retardant, high and low temperature resistant, Uvresistant.

QUALITY TINNED COPPER

Tin plating process, oxidation resistance, good conductivity,99.98% pure copper, low resistance.

HIGH QUALITY INSULATION

The cable is XLPO, flame retardant, high and low temperature resistant, UV resistance and corrosion resistance

INJECTION MOLDING

The confluence adopts injection molding crimping, which is tightly sealed,waterproof, wear-resistant and durable.

Products Features

Flame Retardant

Easy installation

Low resistance

Long Service Life
