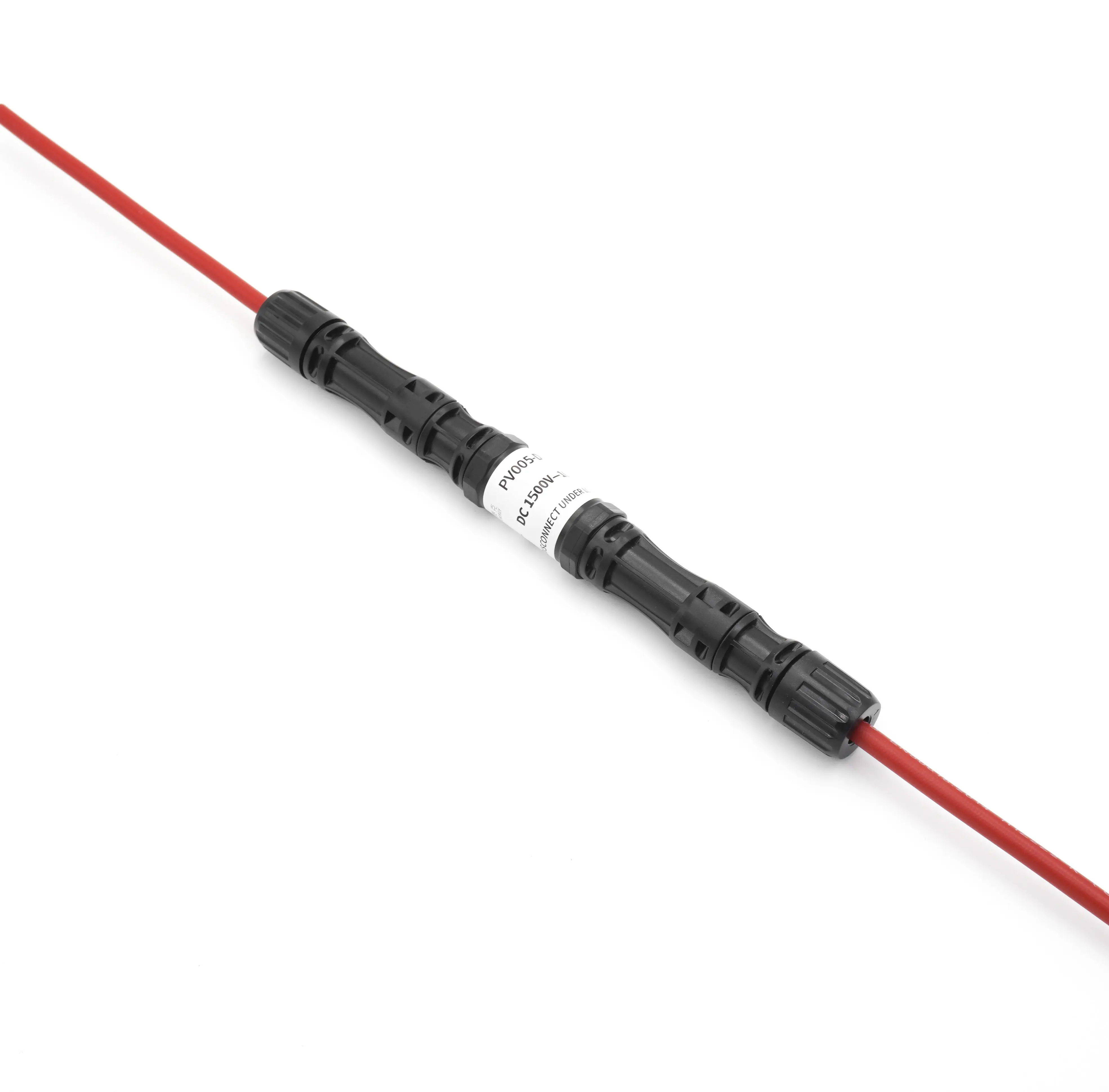

New Solar Connector Types Solar Connector Types Company
| STYLE | Photovoltaic connector | DOCUMEN NO | PNTK-P5-002 | ||||
| SIZE | PV005-D | ||||||
| CONSTRUCTIONFIGURE | |||||||
| STANDARD BASIS | IEC 62852：2014 | ||||||
| Rated voltage | DC 1500V | ||||||
| Rated current | 10A、15A、20A | ||||||
| Contact material | Tinned copper | ||||||
| Insulation material | PPO | ||||||
| Locking system | Locking type | ||||||
| Degree of protection | IP65 | ||||||
| Ambient temperature range | -40℃~+85℃ | ||||||
| Upper temperature limit | 100℃ | ||||||
| Contact resistance of plug connectors | ≤0.5m Ω | ||||||
| Withstand voltage test | 8.0KV，1min | ||||||
| Flame class | UL94-V0 | ||||||
| compatibility | Compatible with MC4 connectors | ||||||
| Salt spray test | Degree of severity 6 | ||||||
| Damp heat test | No damage occurred which could impair normal use | ||||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | ||||||
| Connector pulling force | ≥200N | ||||||
| Warranty period | Twenty-five years | ||||||
| Packing quantity | 500 sets/box | ||||||
Product Details
QUALITYTINNED COPPER
The shell is made of high-quality PC EXL9330C, flame retardant, high and low temperature resis- tant, UV resistant and corrosion resistant.
HIGH QUALITY TINNED COPPER CORE
Tin plating process, anti-oxidation, not easy to rust,Good conductivity, low resistance, can reduce electricalCurrent conduction loss.

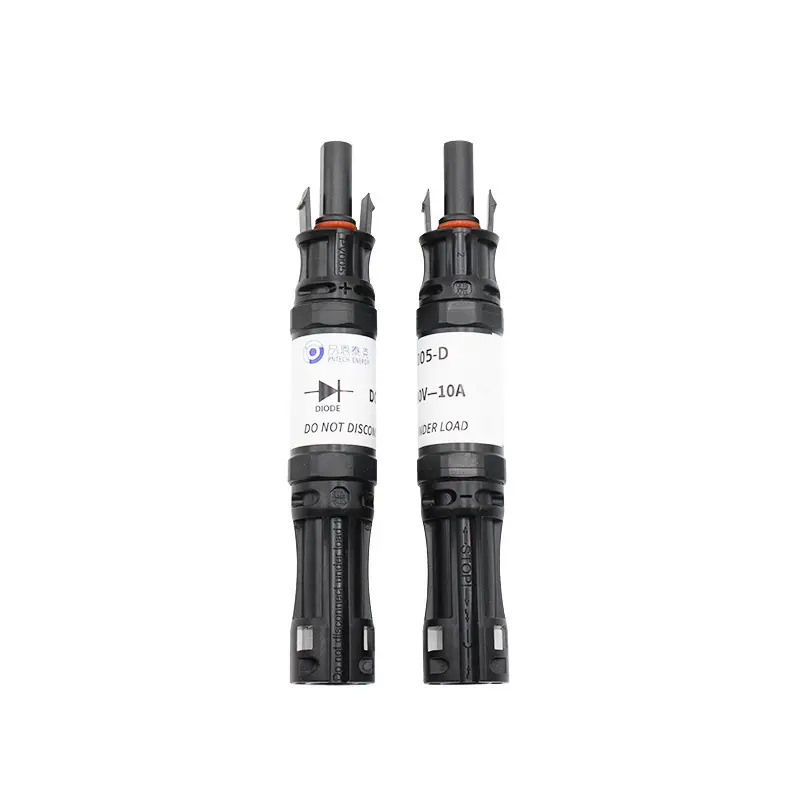

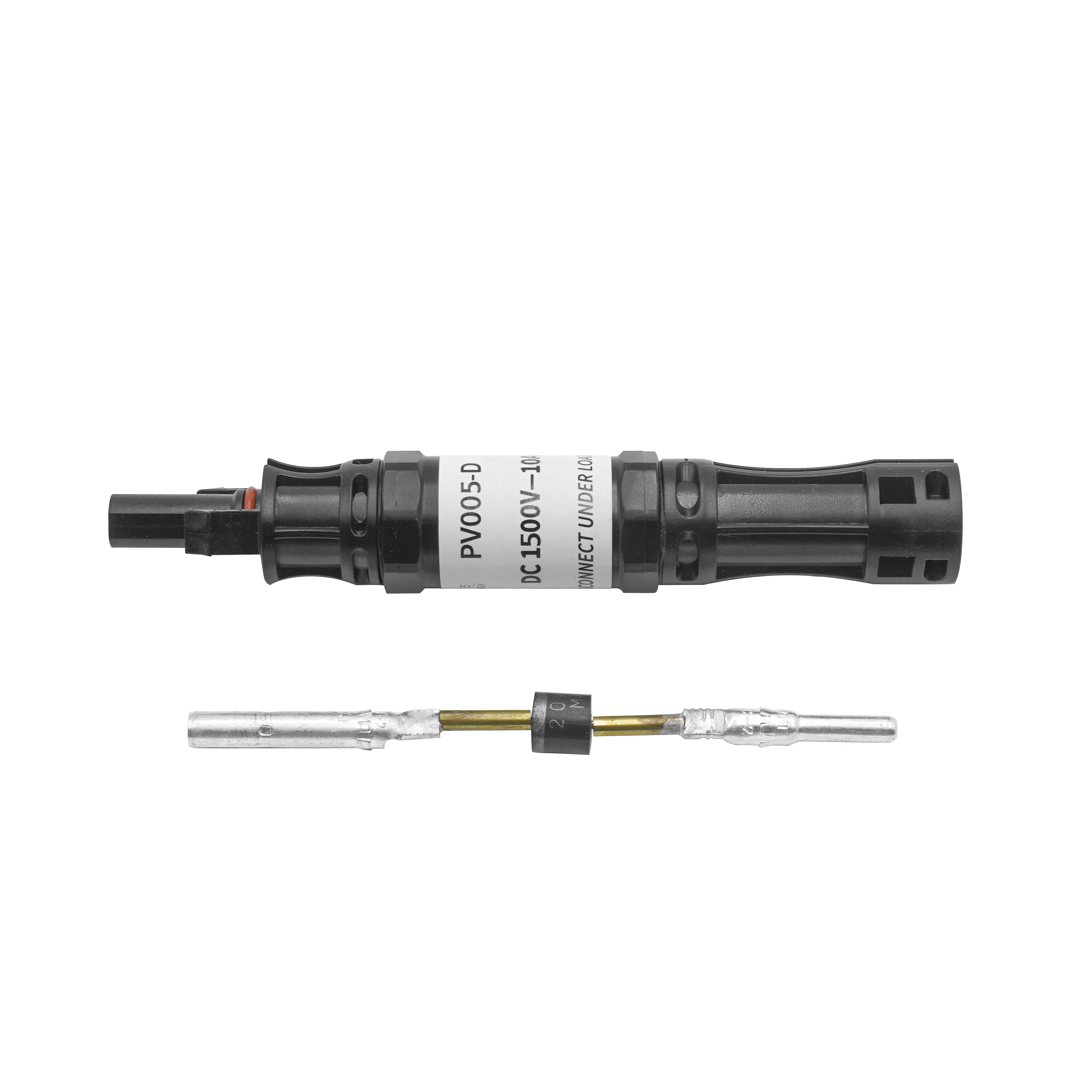

ANTI REFLECTION DIODE
Built in anti reflection diode, effectively preventing reverse current flow, low power consumption, good heat dissipation function
Products Features
FAQ
Company Advantages
· solar connector types from Zhejiang Pntech Technology Co., Ltd. is of superior quality.
· As any defect will be completely eliminated during the inspection process, the product is always at the best quality.
· Zhejiang Pntech Technology Co., Ltd. has a reputation for nimbleness, innovation and customer service.
Company Features
· Zhejiang Pntech Technology Co., Ltd. has gone far ahead in the market when it comes to the development and production of solar connector types.
· We have a pool of design professionals. They are well-educated and have a deep and unique insight into the way of designing products including solar connector types. They have already designed a broad range of products that sell like hot cake in our clients' markets.
· In order to provide better service for customers and create the most valuable services to customers, we always adhere to the goal of putting customer's needs in the first place. Call now!
Application of the Product
The solar connector types produced by PNTECH has a wide range of applications.
PNTECH has been engaged in the production of Solar PV Cable,PV Cable,Solar PV Connector,Solar Tool Kits (Only Sales) for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
