Mc4 Pv Connector for Workplace Overseas Market
Product details of the mc4 pv connector
Product Introduction
PNTECH mc4 pv connector is designed by leveraging the skills of an advanced development and production team. After many tests and modifications, the product finally achieved the best quality. This product is considered to have broad development prospects.
| STYLE | Photovoltaic connector | DOCUMEN NO | PNTK-P4-004 | |||
| SIZE | PV004-P | |||||
| CONSTRUCTIONFIGURE | ||||||
| STANDARD BASIS | IEC 62852：2014 | |||||
| Rated voltage | DC 1000V | |||||
| Rated current | 30A | |||||
| Contact material | Tinned copper | |||||
| Insulation material | PC | |||||
| Locking system | Locking type | |||||
| Degree of protection | IP65 | |||||
| Ambient temperature range | -40℃~+85℃ | |||||
| Upper temperature limit | 100℃ | |||||
| Contact resistance of plug connectors | ≤0.5m Ω | |||||
| Withstand voltage test | 6.0KV，1min | |||||
| Flame class | UL94-V0 | |||||
| compatibility | Compatible with MC4 connectors | |||||
| Salt spray test | Degree of severity 6 | |||||
| Damp heat test | No damage occurred which could impair normal use | |||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | |||||
| Connector pulling force | ≥200N | |||||
| Warranty period | Twenty-five years | |||||
| Thread size | 12mm | |||||
| Packing quantity | 500 sets/box | |||||

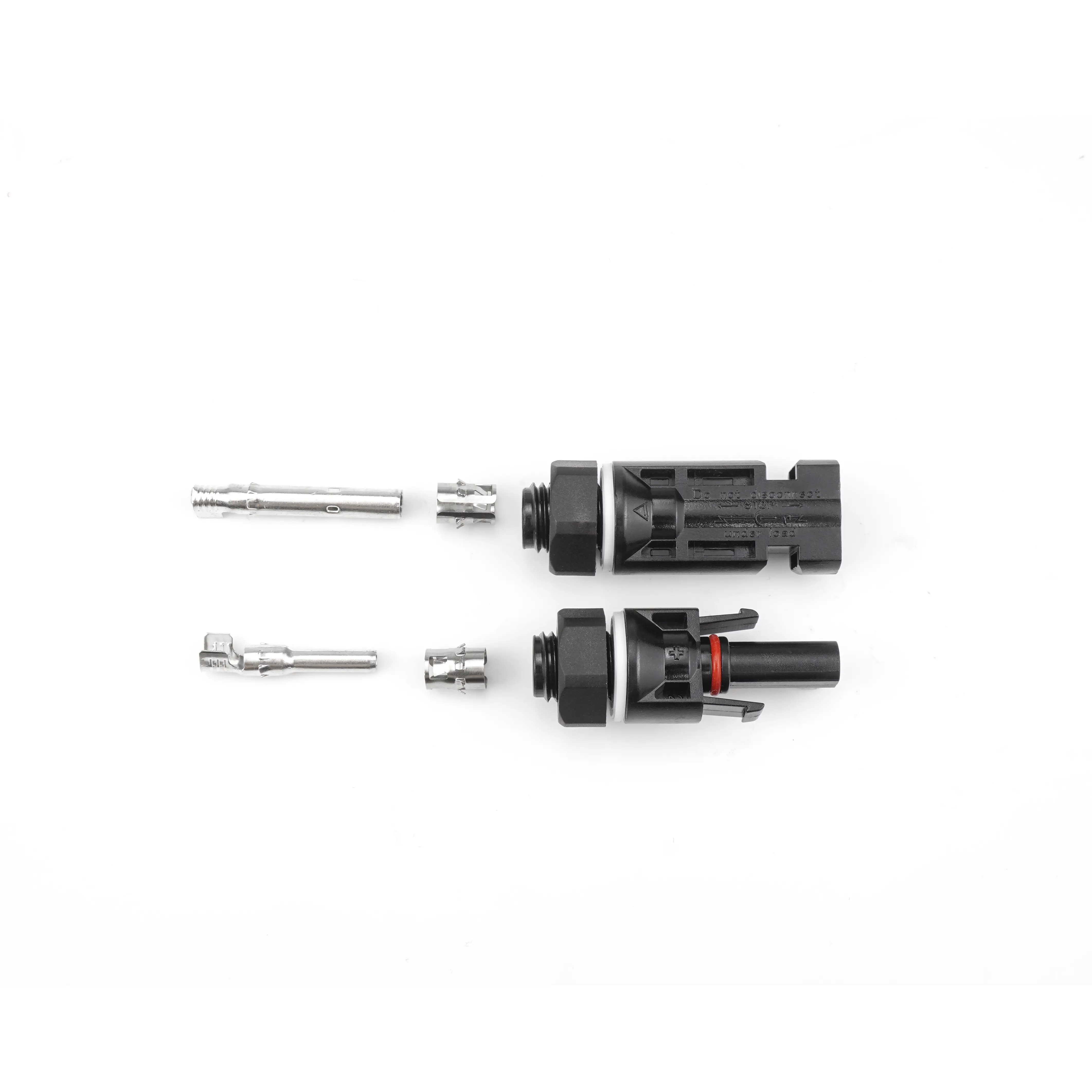

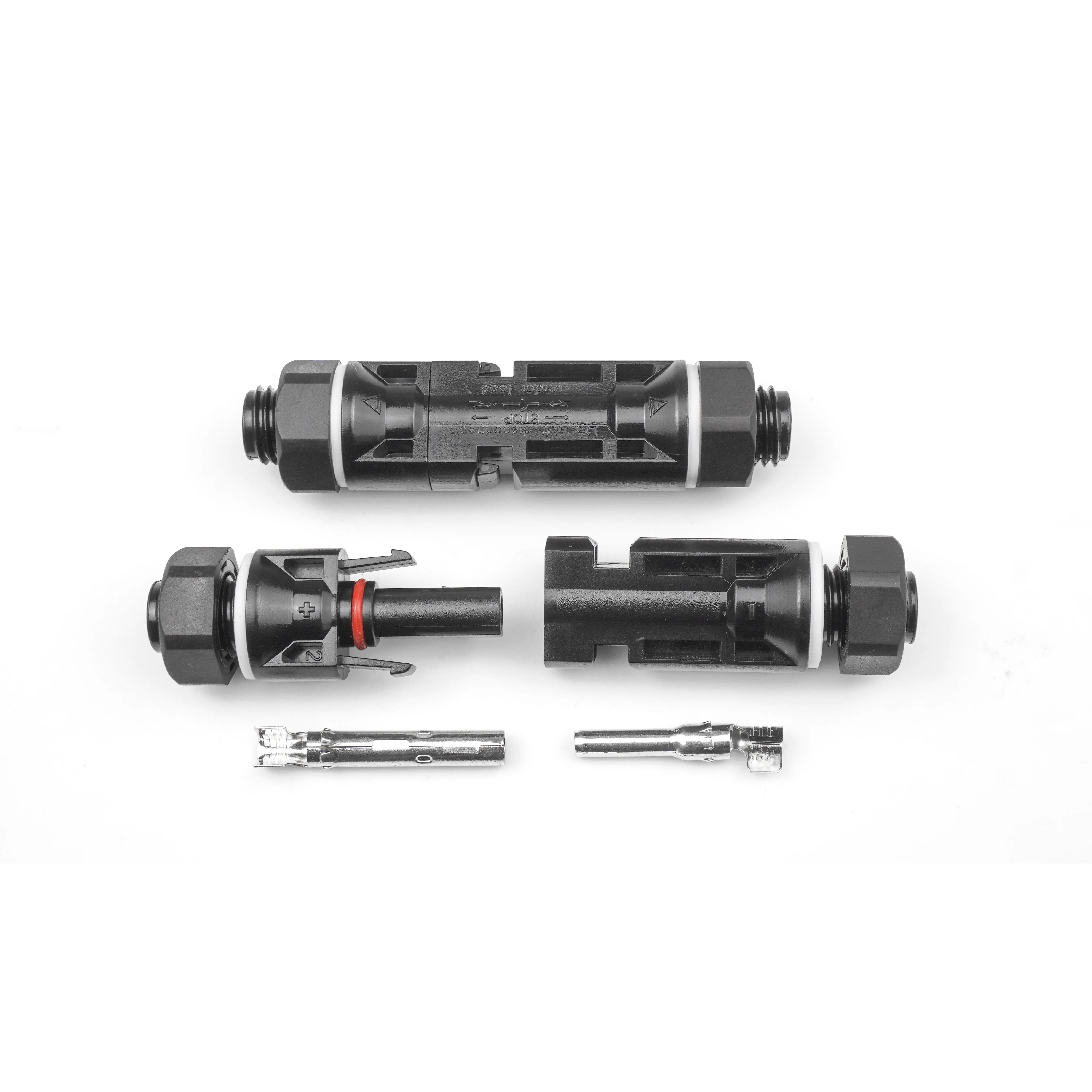

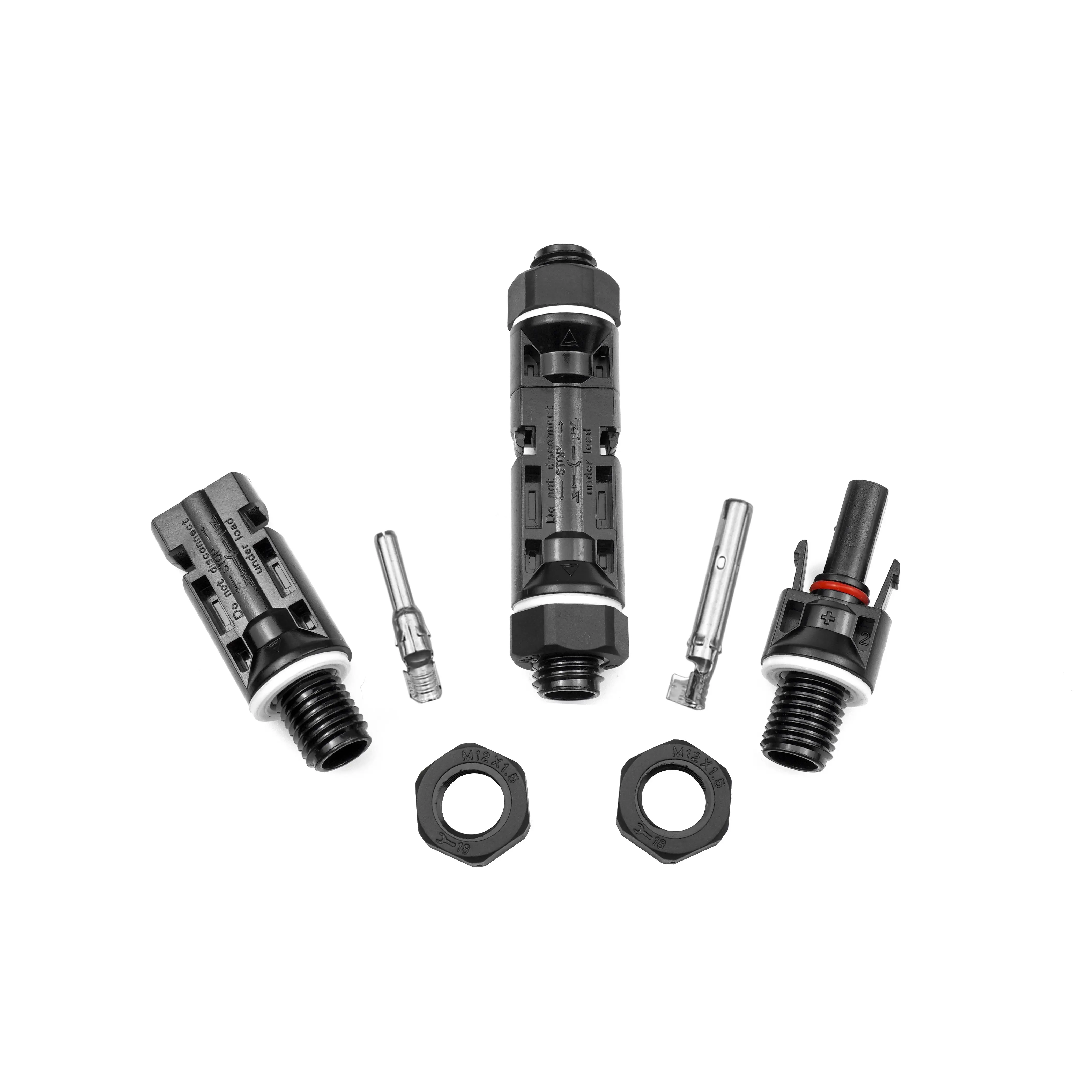

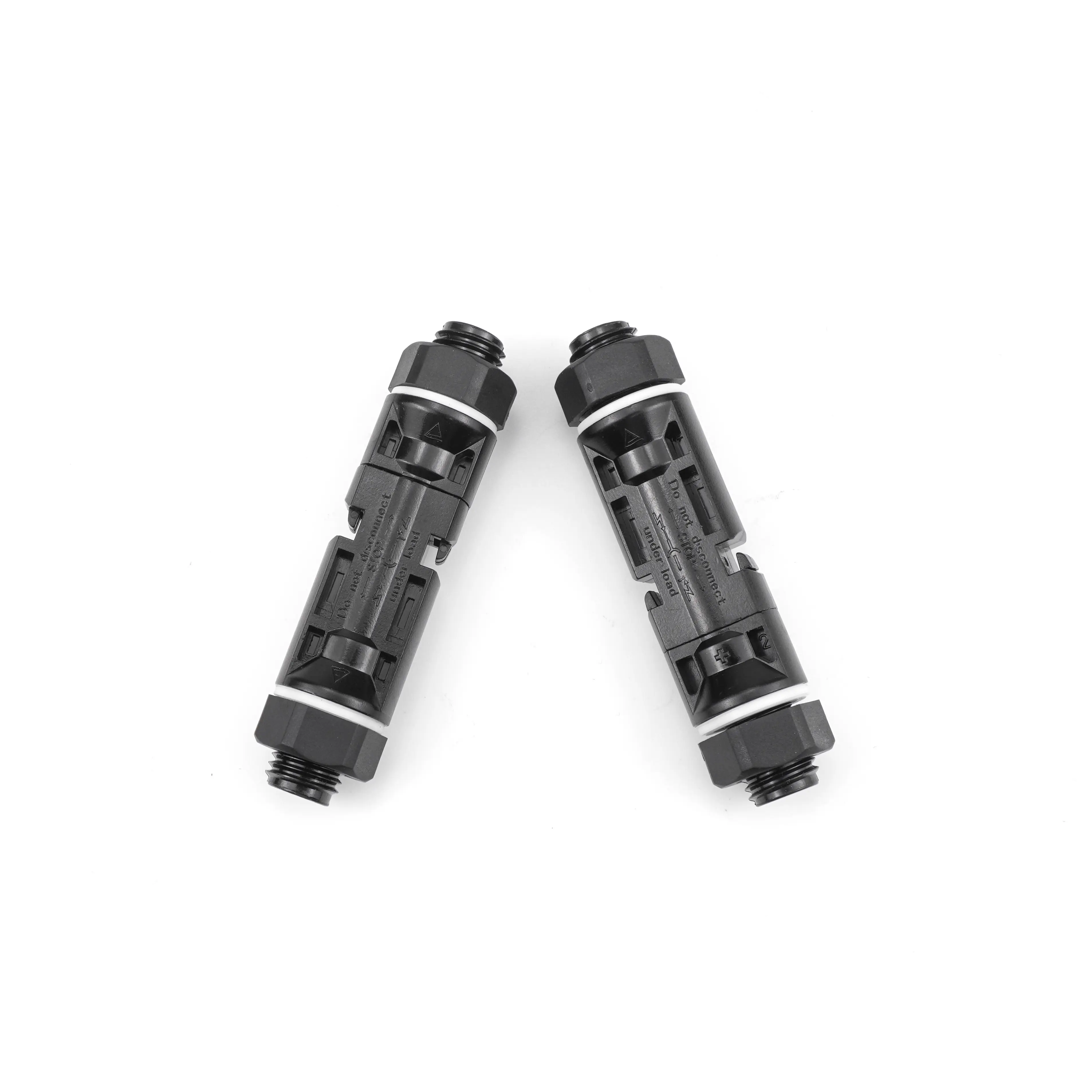

Product Details
PPO MATERIAL
High heat resistance,flame resistance,high strength,excellent electrical performance,abrasion resistance and environmental protection
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Stable Clip
Snap lock,stable self-locking function,easy to open and close.
Insulation Parts
The contact head of the product is provided with a guide insulation to guide and prevent electric shock.
O-Rings
The connector socket adopts high quality sealing ring to effectively prevent dust and rain from invading.
500 Sets/Carton
Conventional carton packaging,500 sets/carton.
Products Features
FAQ
Company Feature
• PNTECH was established in Over the years, our company has been facing the complex changes of internal and external environment and a series of severe tests. But we always maintain our firm belief and fearless spirit to accumulate experience. Thus, we become a leader in the industry.
• With high-quality technology research team and production team, independently develops and research the products by using advanced technology and methods.
• PNTECH's products are exported to many foreign countries.
• PNTECH has a strong customer service team to provide professional and efficient pre-sales, sales, and after-sales services for customers.
PNTECH encourages customers to try out our samples before cooperating with us. Contacts us and you will get free samples.
