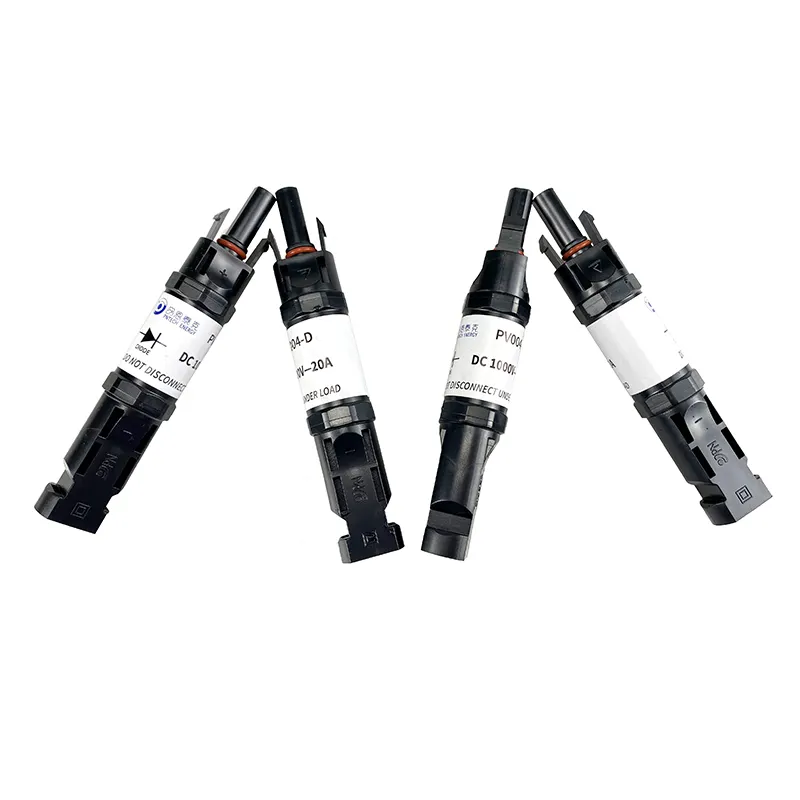

Product details of the mc4 solar connector
Product Description
PNTECH mc4 solar connector is innovative with an improvement on production process. It is defect-free through continuous quality management processes. Strong production strength of Zhejiang Pntech Technology Co., Ltd. shows the ability to be your first choice for cooperation.
| STYLE | Photovoltaic connector | DOCUMEN NO | PNTK-P4-002 | ||||
| SIZE | PV004-D | ||||||
| CONSTRUCTIONFIGURE | |||||||
| STANDARD BASIS | IEC 62852：2014 | ||||||
| Rated voltage | DC 1000V | ||||||
| Rated current | 10A、15A、20A | ||||||
| Contact material | Tinned copper | ||||||
| Insulation material | PC | ||||||
| Locking system | Locking type | ||||||
| Degree of protection | IP65 | ||||||
| Ambient temperature range | -40℃~+85℃ | ||||||
| Upper temperature limit | 100℃ | ||||||
| Contact resistance of plugconnectors | ≤0.5m Ω | ||||||
| Withstand voltage test | 6.0KV，1min | ||||||
| Flame class | UL94-V0 | ||||||
| compatibility | Compatible with MC4 connectors | ||||||
| Salt spray test | Degree of severity 6 | ||||||
| Damp heat test | No damage occurred which could impair normal use | ||||||
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N | ||||||
| Connector pulling force | ≥200N | ||||||
| Warranty period | Twenty-five years | ||||||
| Packing quantity | 500 sets/box | ||||||
Product Details
Quality Tinned Copper
The shell is made of high-quality PC EXL9330C,flame retardant,high and low temperature resistant,UV resistant and corrosion resistant.
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Anti Reflection Dlode
Built in anti reflection diode,effectively preventing reverse current flow,low power consumption,good heat dissipation function.
