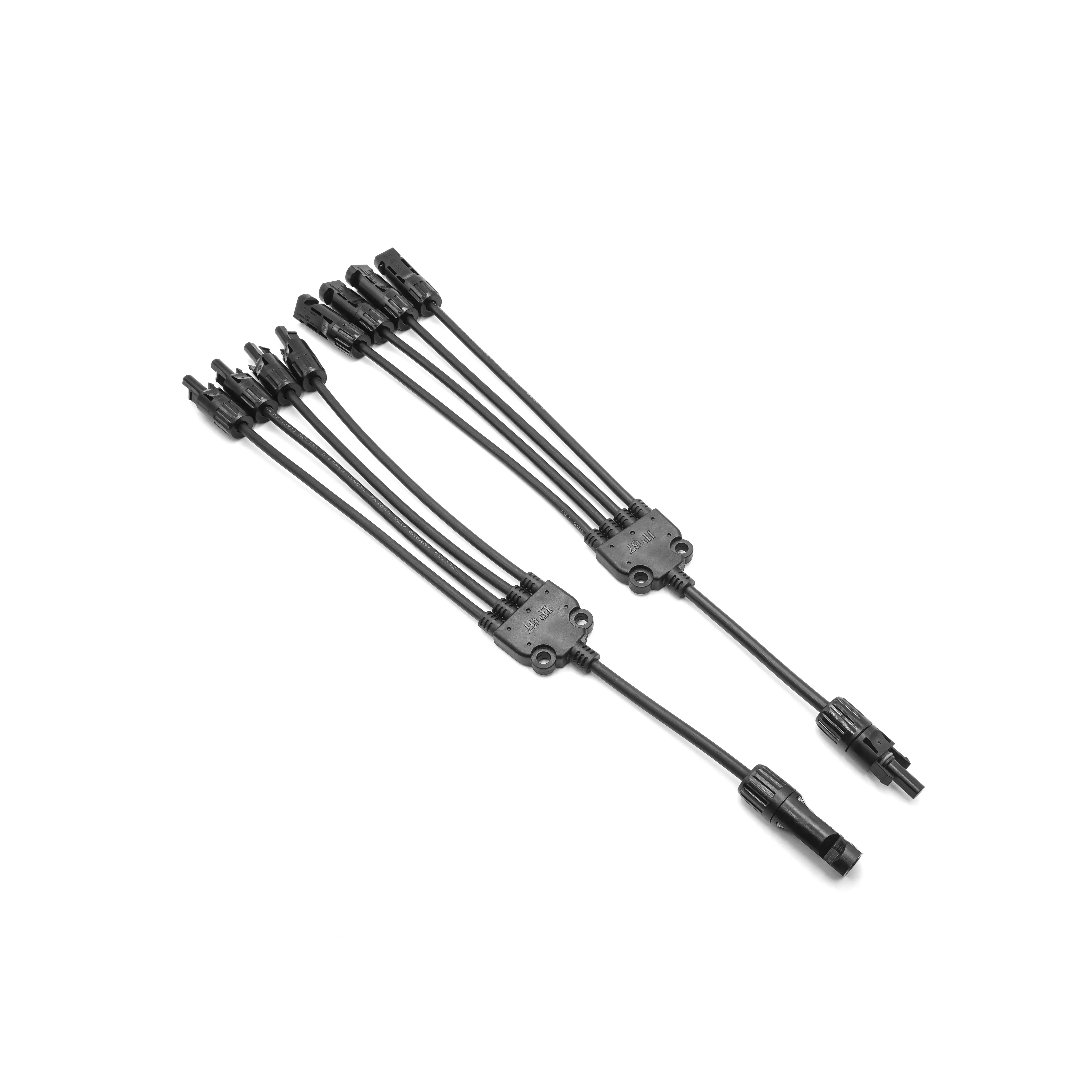

For Military Camp Y Connector Mc4 by PNTECH
Product details of the y connector mc4
Quick Overview
The overall appearance of y connector mc4 is of harmony and unity. The product, as it is manufactured by ourselves, is assured to meet international quality standards. The best service in Zhejiang Pntech Technology Co., Ltd. leaves you no worries after purchasing y connector mc4.
Product Information
PNTECH's y connector mc4 has been greatly improved in the following details.
|
STYLE
|
Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P4-012
|
| SIZE |
PV004-4T1
|
||
|
CONSTRUCTION
FIGURE
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Rated voltage |
DC 1000V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PC/XLPO
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
6.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Input/output cable specifications |
1×4mm²/1×6mm²
|
||
| Packing quantity |
60 sets/box
|
||
Product Details
Connector
PC EXL9330 Material,tinned copper inner core,flame retardant,high and low temperature resistant,UV resistant
Tinned copper core
Tin plating process,anti-oxidation,not easy to rust,good conductivity,low resistance,can reduce electrical current conduction loss.
Sheathing Material
The cable is XLPO,flame retardant,high and low temperature,UV resistance and corrosion resistance
Insulation Parts
The contact head of the product is provided with a guide insulation to guide and prevent electric shock.
