Cost-effective Solar Pv Wire Price List

Product details of the solar pv wire

Product Introduction

PNTECH solar pv wire is designed to create an original look that is truly unique. The rigorous testing process makes the product be high quality and stable performance. This PNTECH branded product is really competitive in the world market.

PRODUCT NAME		BVR		DOCUMEN NO	PNTK-BVR-001
SIZE		1 ×4mm²
SECTIONAL DRAWING
STANDARD BASISJB/T 8734.2-2016
CONDUCTOR	MATERIAL				(Copper)
	CONSTRUCTION  (N/mm)				48/0.3±0.02AS
	DIA (mm)				2.5
INSULATION	MATERIAL				（PVC）
	OVER  DIAMEREDR (mm)				4.2±0.2
	AVG. THICK  (mm)				≥0.8
	MIN. THICK  (mm)				≥0.62
	COLOR				Upon customer's request
SHEATH	MATERIAL				/
	OVER  DIAMEREDR (mm)				/
	AVG. THICK  (mm)				/
	MIN. THICK  (mm)				/
	COLOR				Upon customer's request
ELECTRICALPERFORMANCE	RATED VOLTAGE (V)				450/750V
	RATED TEMP  (℃)				70℃
	COND. RESISTANCE  (Ω/km,20℃)				≤4.61
	INSU. RESISTANCE  (M Ω.km，70℃)				≥0.0079
	VOITAGE WITH STAND TEST				2.0KV,5min
	SPARK ELECTROMECHANICAL VOLTAGE (KV)				7
PHYSICAL PROPERTYOF INSULATION	MIN TENSILE STRENGTH  (N/mm²)				≥12.5
	MIN BREAK ELONGATION RATE (％)				≥125
	FLAME TEST
	THEORETICAL SERVICE LIFE				25
	ENVIRON MENT PROECTION				ROHS

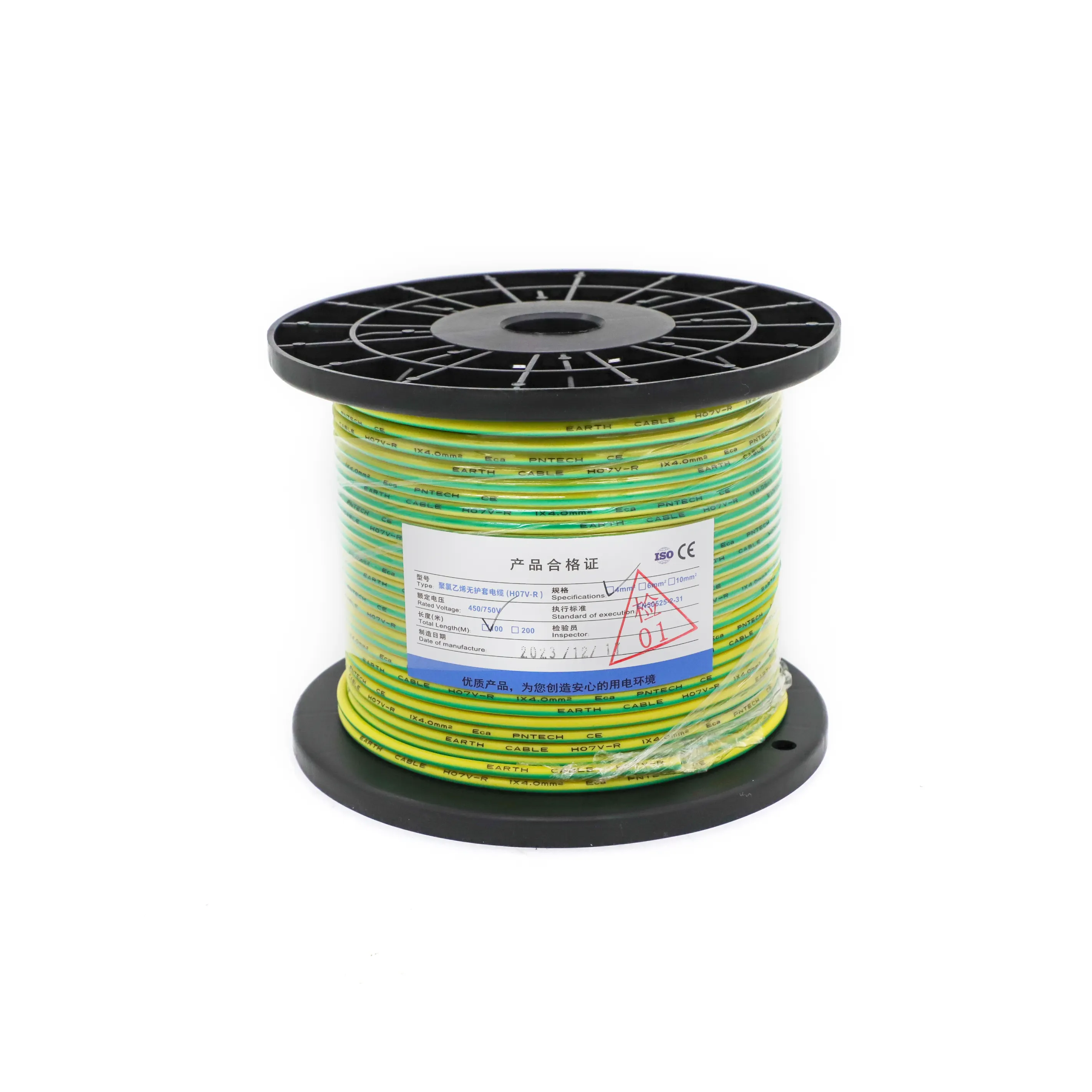

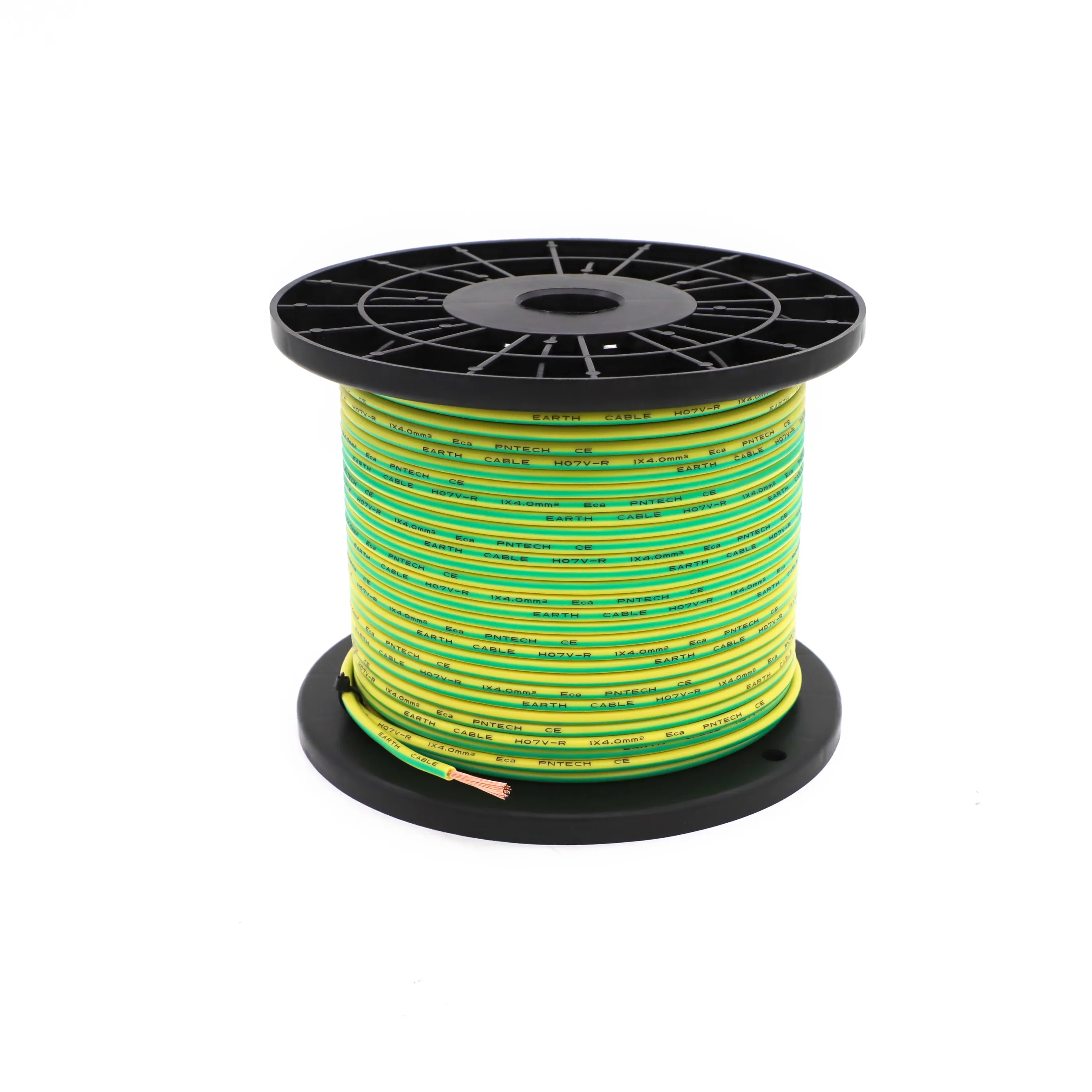

Packingspecification	Packing quantity: 100米，500米

Add：No.1, North of Zhongyi Avenue, Gulin Town, Haishu District, Ningbo, China

All Weather

Dependability

These solar extension cables aredesigned for outdoor use andareuv & corrosion resistant andlp67 waterproof.

IP67

WATERPROOF GRADE

UL94V-O

DEPENDABILITY

Product Details

Pntech creates excellent ouality

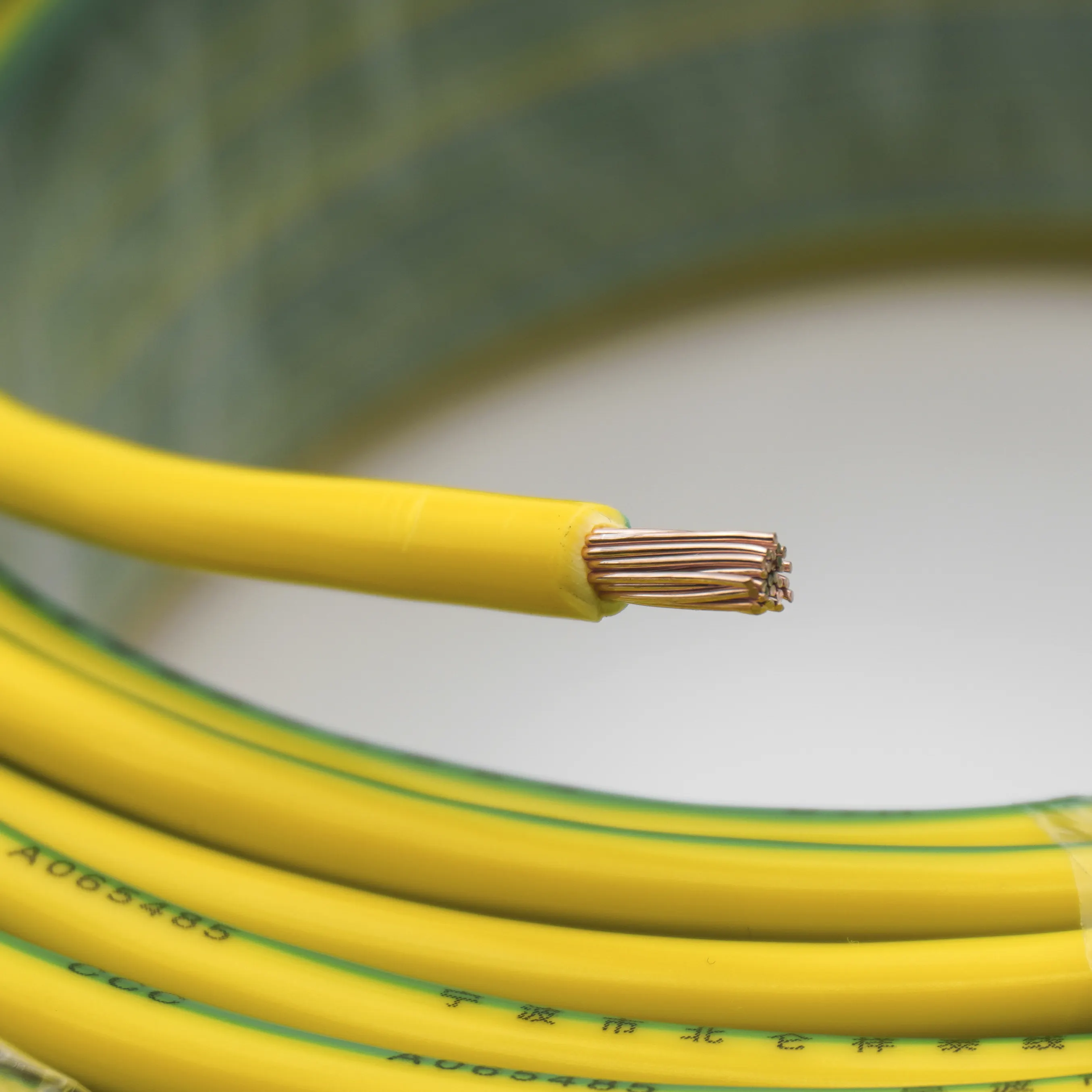

Quality copper

High quality copper is selected, which is resistant to oxidation, has stable conductivity, good heat dissipation and is safer.

Specifications

2.5mm²,4mm²,6mm² Any terminal aperture and line length can be customized.

Flexible PVC

The insulation has good flame retardancy,high strength bendingTensile force, shock resistance and other characteristics.

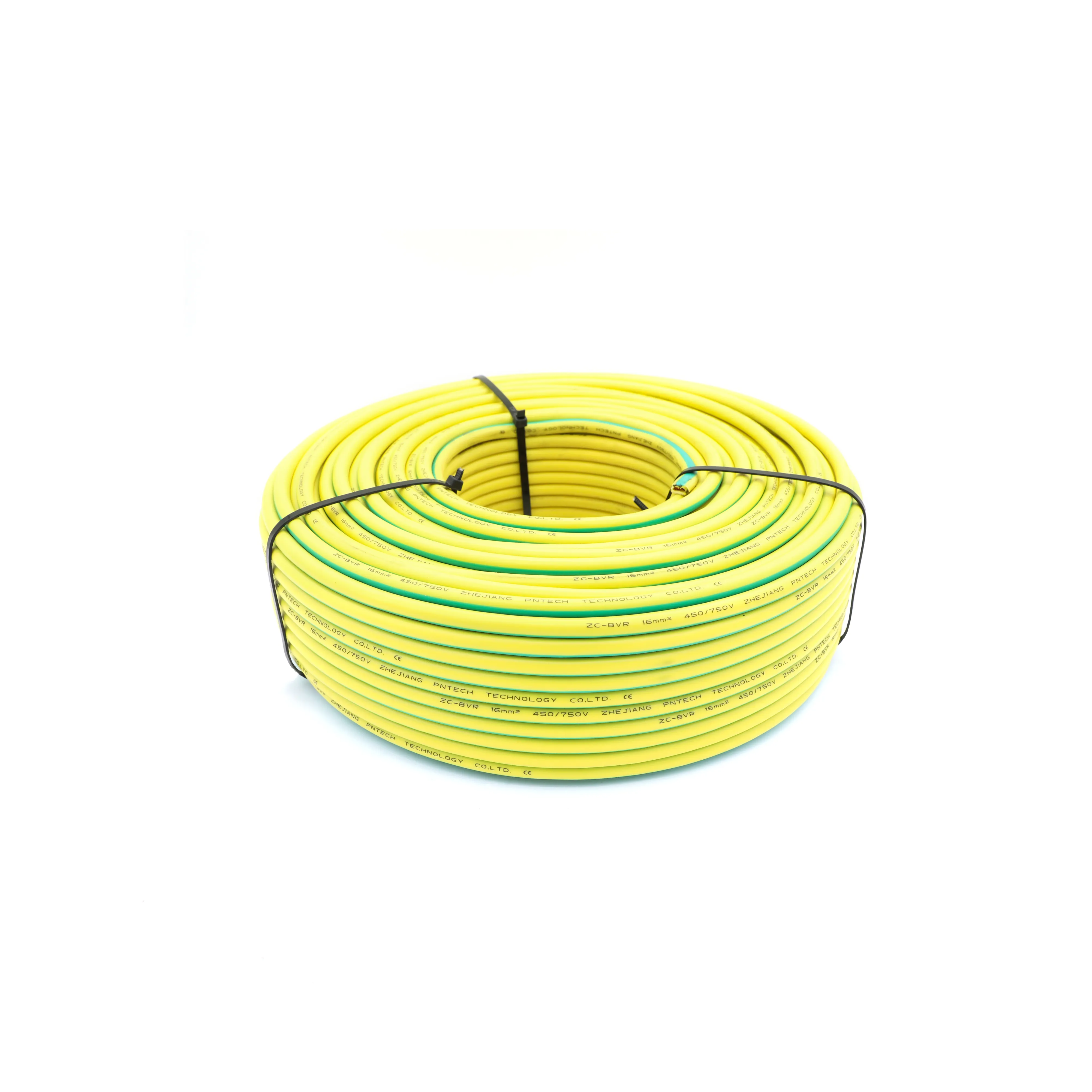

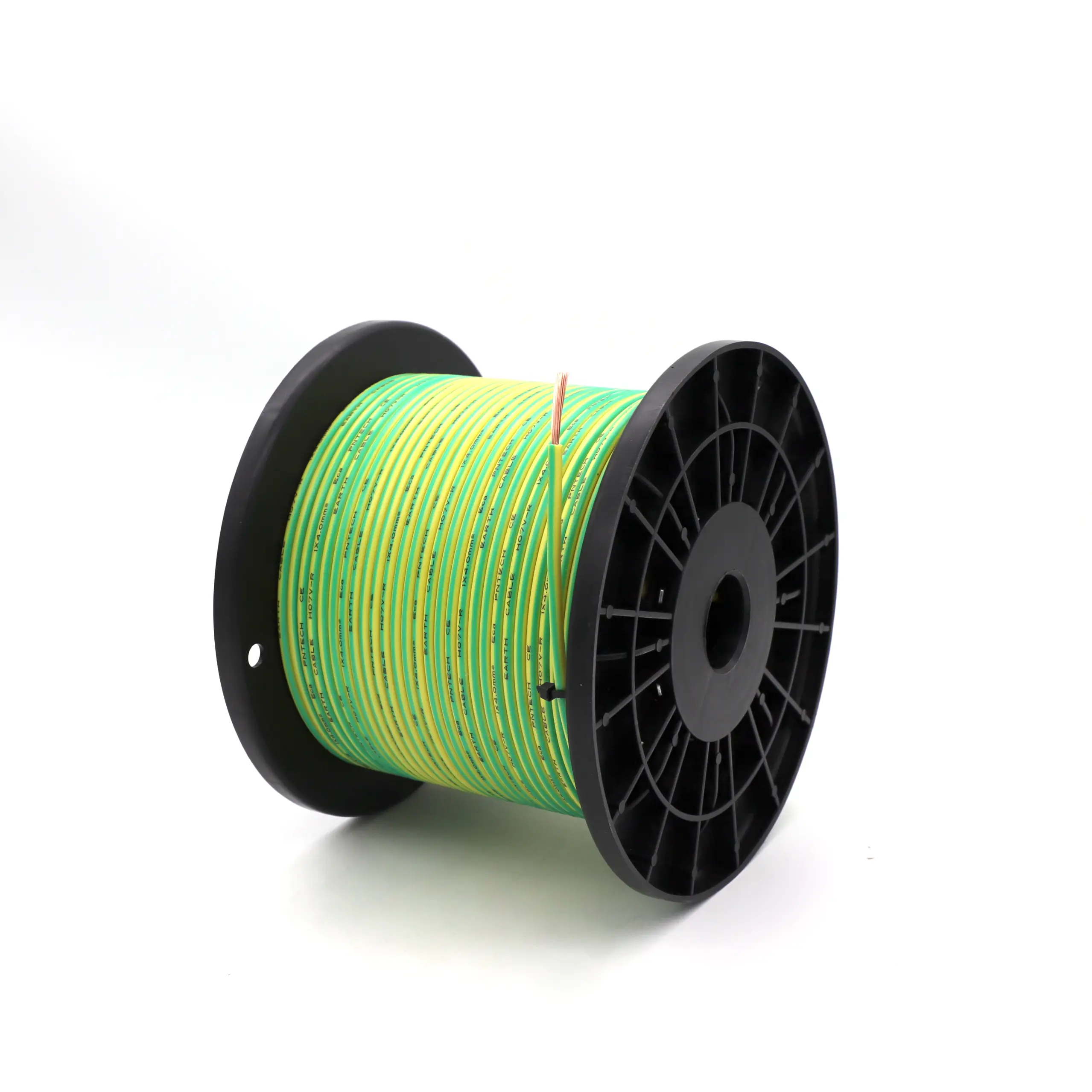

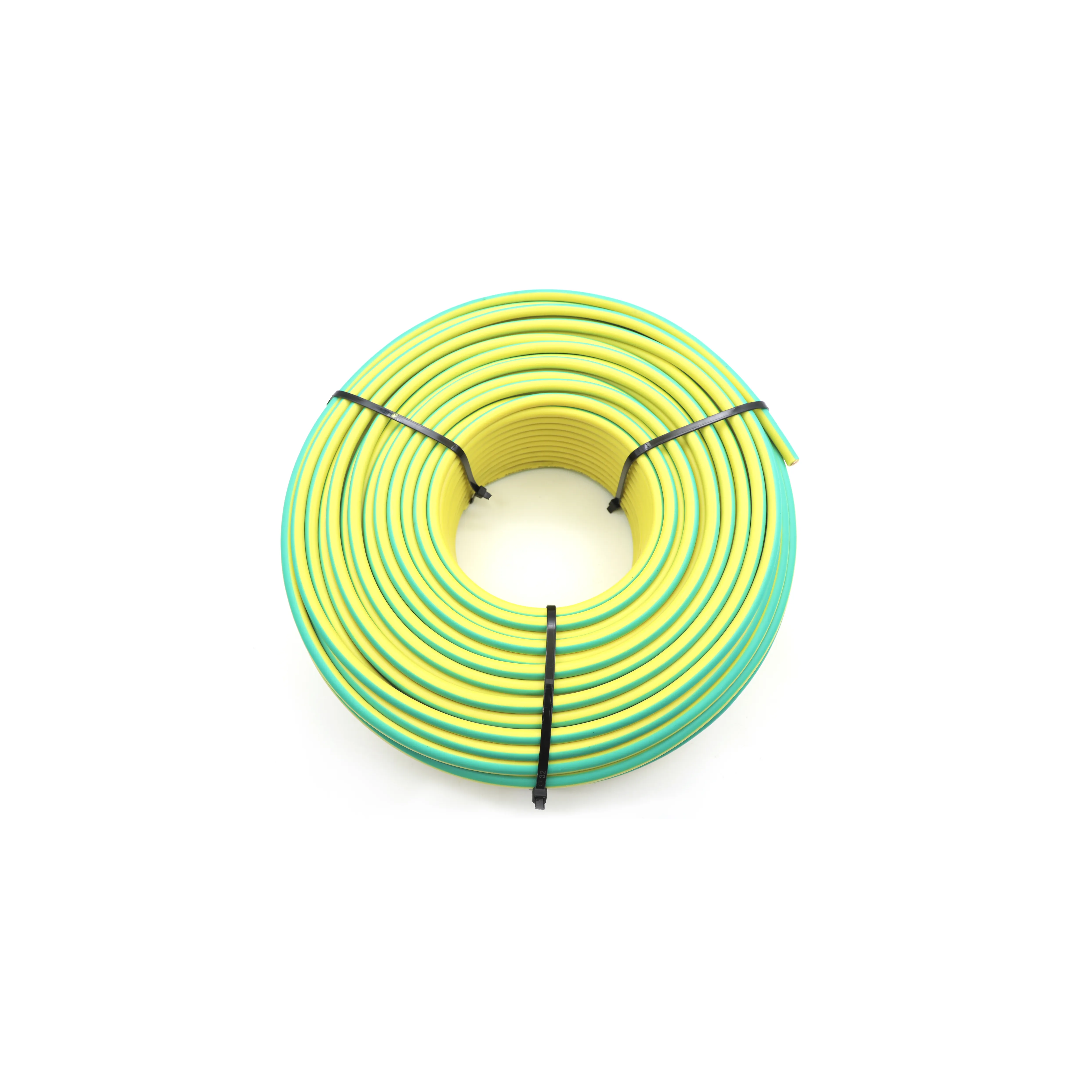

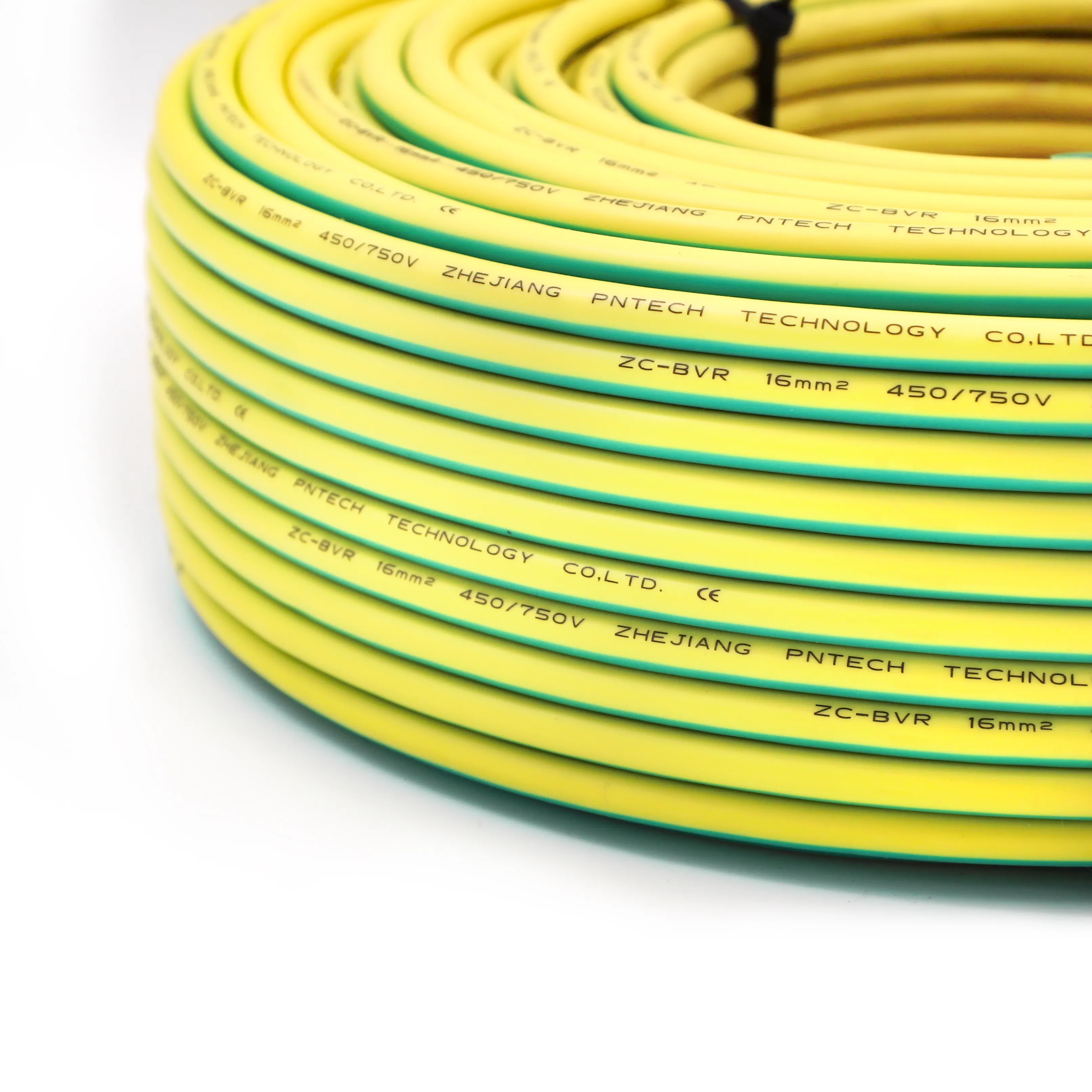

BVR Two-color line

Excellent BVR yellow green double color line, uniform and smooth,Color saturation without color difference.

Product Details

Quality copper

High quality copper is selected, which is resistant to oxidation, has stable conductivity, good heat dissipation and is safer.

Specifications

2.5mm²,4mm²,6mm² Any terminal aperture and line length can be customized.

Flexible PVC

The insulation has good flame retardancy,high strength bendingTensile force, shock resistance and other characteristics.

BVR Two-color line

Excellent BVR yellow green double color line, uniform and smooth,Color saturation without color difference.

Products Features

RESISTANCE

Low Resistance Value

FLAME RETARDANT

Flame Retardant material

ENVIRONMENT

High and low temperature resistant

OXIDATIVE

Antioxidants

INSTALL

Easy Installation

MATERIAL

Environmental Protection

Company Feature

• Our company has a professional team, with excellent business skills and strong comprehensive quality. During the business operation, we give full play to the strength of each member according to the characteristics, so as to achieve rapid development.
• Good reputation, high-quality products and services have won a large number of loyal customers at home and abroad.
• PNTECH was founded in After years of development, we become a leader in the industry.
• Based on individualized and humanized service, our company gives full play to the role of each employee and serves the consumers with good professionalism.
Thanks for the attention. PNTECH's products are well-designed, cost-effective, safe and eco-friendly. Your order is warmly welcome and you can enjoy discounts on your first purchase!
