Cheapest Pv Wire Connectors Price List
Product details of the pv wire connectors
Product Description
All production processes of PNTECH pv wire connectors are operated at the highest possible standards. The quality of this product is conducted by the QC team ensure its flawlessness and long service life. It is a popular product in the market now, which has huge application prospects.
|
STYLE
|
Photovoltaic connector
|
DOCUMEN NO
|
PNTK-P5-011
|
| SIZE |

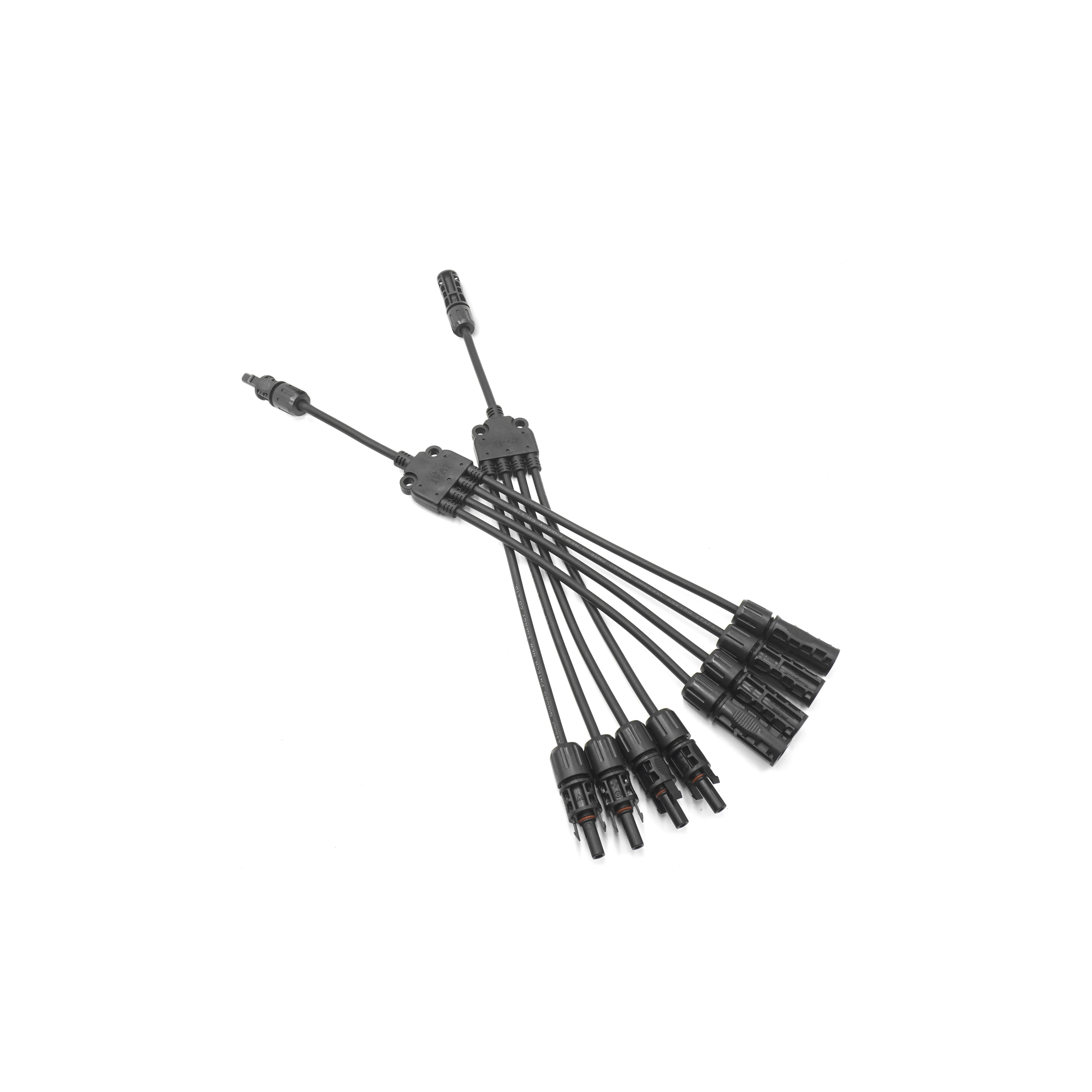

PV005-4T1
|
||
|
CONSTRUCTION
FIGURE
|
|
|
|
| STANDARD BASIS |
IEC 62852：2014
|
||
| Rated voltage |
DC 1500V
|
||
| Rated current |
30A
|
||
| Contact material |
Tinned copper
|
||
| Insulation material |
PPO/XLPO
|
||
| Locking system |
Locking type
|
||
| Degree of protection |
IP65
|
||
| Ambient temperature range |
-40℃~+85℃
|
||
| Upper temperature limit |
100℃
|
||
| Contact resistance of plug connectors |
≤0.5m Ω
|
||
| Withstand voltage test |
8.0KV，1min
|
||
| Flame class |
UL94-V0
|
||
| compatibility |
Compatible with MC4 connectors
|
||
| Salt spray test |
Degree of severity 6
|
||
| Damp heat test |
No damage occurred which could impair normal use
|
||
| Assemblability |
Insertion force ≤50N, withdrawal force ≥50N
|
||
| Connector pulling force |
≥200N
|
||
| Warranty period |
Twenty-five years
|
||
| Input/output cable specifications |
1×4mm²/1×6mm²
|
||
| Packing quantity |
50 sets/box
|
||
Product Details
HIGH QUALITY CONNECTOR
PV40Z material, tinned copper inner core, flame retardant, high and low temperature resistant, Uvresistant.
QUALITY TINNED COPPER
Tin plating process, oxidation resistance, good conductivity,99.98% pure copper, low resistance.
HIGH QUALITY INSULATION
The cable is XLPO, flame retardant, high and low temperature resistant, UV resistance and corrosion resistance
INJECTION MOLDING
The confluence adopts injection molding crimping, which is tightly sealed,waterproof, wear-resistant and durable.
