Inverter extension cord

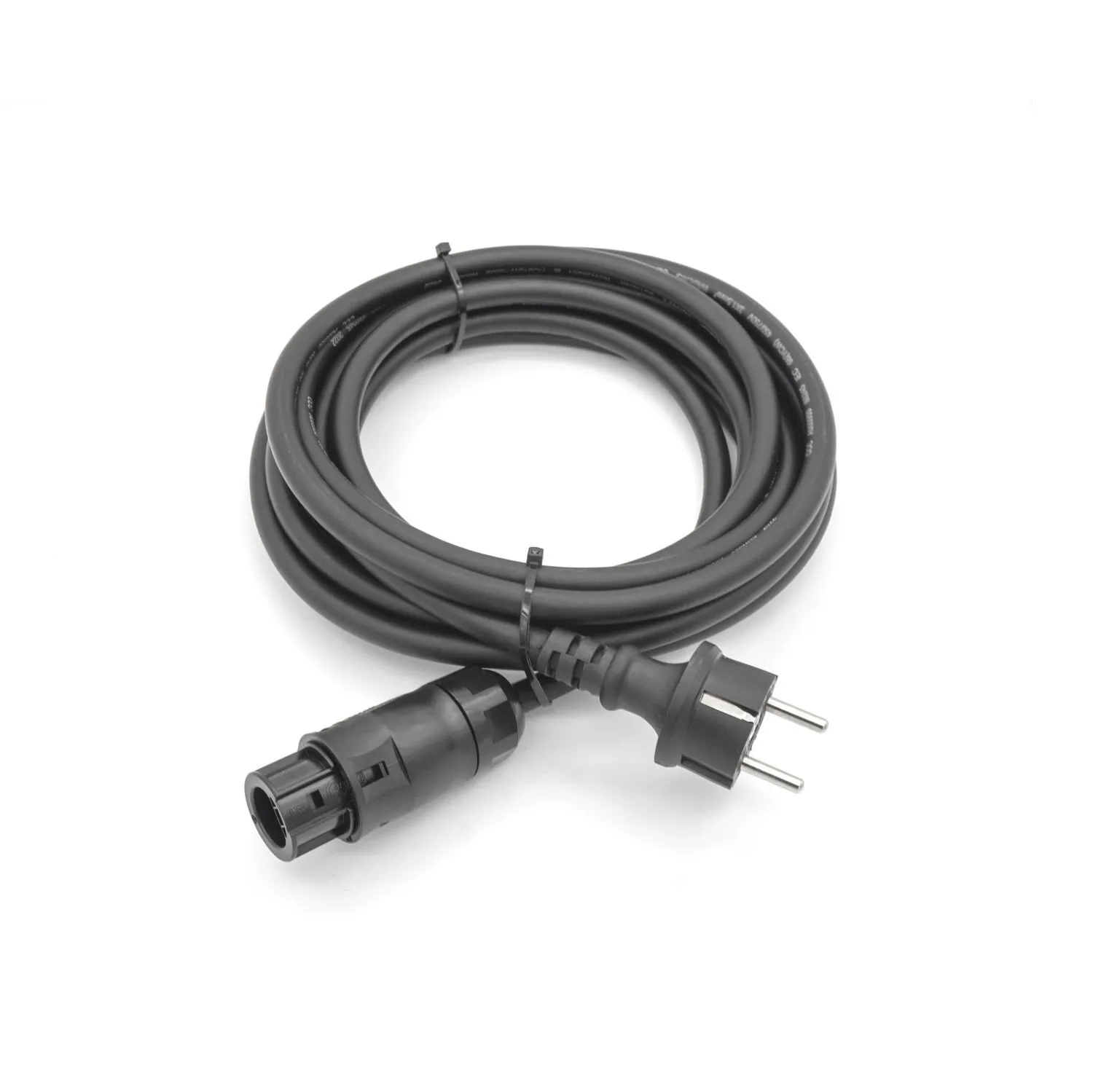

AC/DC BC01 male 450V/750V Micro Inverter Extension cord
Micro Inverter Extension Cord
Conduct: copper
Rated Voltage:450/750V
Contact Resistance:≤0.5mΩ
Temperature Range:-10℃-+70℃
Insulation Material:TPU/PPO
Rated current:16A
Waterproof Level:IP68
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Specification
| STYLE | Microinverter harness | DOCUMEN NO | PNTK-WN-001 | |||
| SIZE | HO7RN-F EU Plug | |||||
| CONSTRUCTION FIGURE |
||||||
| STANDARD BASIS VDE0620-2-1＆EN50525-2-21 | ||||||
| Match wire specifications | 3G1.0mm²、3G1.5mm²、3G2.5mm² | |||||
| Material | PVC, Rubber、Copper | |||||
| Rated voltage | AC250V | |||||
| Rated current | 16A | |||||
| Plug type | French plug | |||||
| Tailpin type | Upon customer's request | |||||
| Photovoltaic cable type | H07RN-F | |||||
| Photovoltaic cable color | Black | |||||
| Degree of protection | IP44 | |||||
| Ambient temperature range | -40℃~+60℃ | |||||
| Upper temperature limit | 90℃ | |||||
| Withstand voltage test | 2.0KV，15min | |||||
| Flame class | EN60332-1-2 | |||||
| Assembly type | Locking type | |||||
| Length | Customized according to customer requirements | |||||
| Packing quantity | According to customer requirements | |||||
Product Details
BCO1 FEMALE CONNECTOR
IP68 level protection of enclosure, waterproof and dustproof.
YJ03-F
Ensure the circuit and the interface and power cord fully combined.
VDE HO7RN-F RUBBER CABLE
Rubber cable is approved according to VDE 0282 for use under heavy use.
EASY TO CONNECT
The female connector is easy to connect and install on the outputside of the microinverter.
Products Features
RESISTANCE
Low Resistance Value
FLAME RETARDANT
Flame Retardant material
ENVIRONMENT
High and low temperature resistant
OXIDATIVE
Antioxidants
INSTALL
Easy Installation
MATERIAL
Environmental Protection
