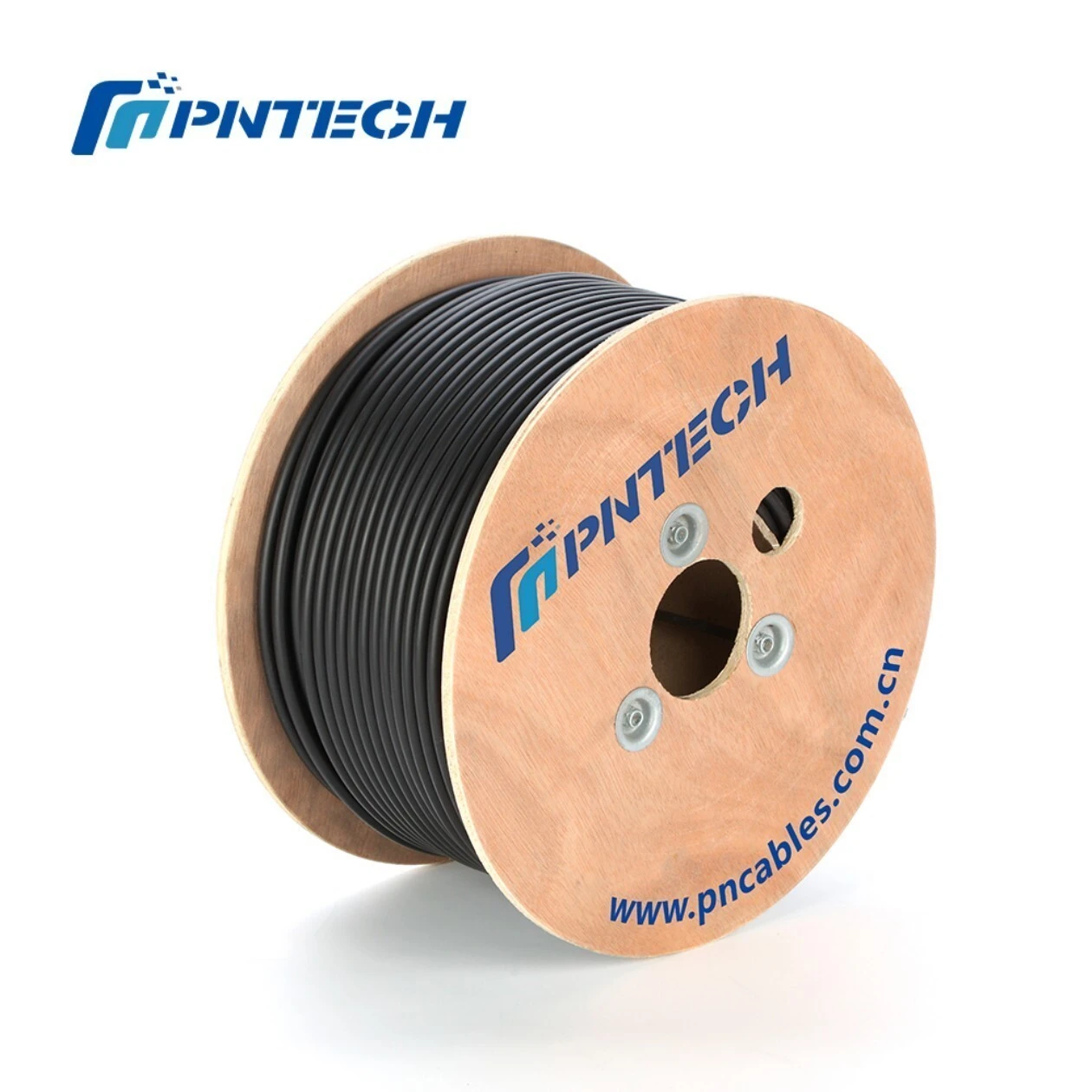

4mm Solar Cable Highly Flame Retardant Tin Plated Copper Wire H1z2z2-k Dc 1.5kv Black/red Power Cables
5.0
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Model Number:
H1Z2Z2-K 1x4mm2
Brand Name:
PNTECH
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000(meters):8(days),1001-5000(meters):10(days),5001-10000(meters):12(days),>10000(meters):To be negotiated(days)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Service life
25 years
Voltage test on completed cable
AC6.5KV/5min,DC15KV/5min
Warranty
5 years
Product name
PV Solar Cable
Color
Balck/Red
Jacket
XLPO
Conductor Material
Oxygen-free tinned copper
Application
Power Station
Type
solar pv cable
Insulation Material
XLPO
Place of Origin
Zhejiang, China
Certificate
TUV
Rated Voltage
AC 1.0/1.0KV,DC1.5KV
Why Choose Us
Product Description
Product name | DC Solar PV Cable |
Conductor | Oxygen-free tinned copper |
Sheath | XLPO |
Insulation | XLPO |
Service Life | 25 Years(-40℃~+90℃) |
Warranty | 5 Years |
Origin | China |
Certification | TUV |
Color | Black ,Red ,Brown,Grey Or Customized |
Specification | 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2, 16.0mm2, 25.0mm2, 35.0mm2 |
Number of Cores | Single Core |
Transport Package | Drum or Roll |
Rated voltage | AC Uo/U 1.0/1.0KV,DC:1.5KV |
Voltage test on completed cable | AC:6.5KV/5min,DC:15KV/5min |
Ambient Temperature | -40℃~+90℃ |
Thermal endurance properties | 120℃,20000h,elongation at break≥50% |
Pressure Test At High Temperature | EN50395 |
Damp Heat Test | EN60068-2-78 |
ACID and Alkali resistance | EN60811-404 |
Ozone resistance | EN60811-403 |
Ageing properties | EN60811-401 |
Cold bending test | EN60811-504 |
Weathering /UV-resistance | EN50618 |
Test under fire condition | EN60332-1-2 |
Specification
Cross Section | Conductor Construction | Conductor Stranded | Cable OD | Conductor DC Resistance | Current carring Capacity | Picking |
mm² | Φn/mm±0.015 | Φmm±0.02 | Φmm±0.2 | Ω/km | AT 60ºC(A) | mater/roll |
1x1.5 | 22x0.29 | 1.5 | 4.6 | 13.7 | 25 | 250 |
1x2.5 | 36x0.29 | 2.0 | 5.1 | 8.21 | 36 | 100/250/500 |
1x4.0 | 56x0.29 | 2.4 | 5.7 | 5.09 | 44 | 100/250/500/5000 |
1x6.0 | 84x0.29 | 3.0 | 6.5 | 3.39 | 60 | 100/200 |
1x10 | 80x0.395 | 4.0 | 7.5 | 1.95 | 82 | 100 |
1x16 | 120x0.395 | 5.0 | 8.9 | 1.24 | 122 | 100 |
1x25 | 196x0.395 | 6.3 | 11 | 0.795 | 160 | 100 |
1x35 | 276x0.395 | 7.4 | 12.2 | 0.565 | 200 | 100 |
Other Products
Packaging & Product Case
Our Advantages
1.PNTECH have 10 years of development
2.Complete certificates
3.Customer Satisfaction
4.Complete equipment,5 professional solar photovoltaic production lines and related supporting equipment
5.Attended various exhibitions at home and abroad for many times
6.The laboratory is fully equipped to ensure production
7.Diversified distribution, sufficient inventory and timely delivery
FAQ
Q1：Where are the photovoltaic cables used ?
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
Q2：How to choose the type and specification of photovoltaic cable ?
A2：Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2（orpv1-f）.
Q3：What is the difference between h1z2z2-k and pv1-f ?
A3：H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4：Which size of cables should I choose ?
A4：4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5：How long is the service life of photovoltaic cable ?
A5：Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6：What other features do photovoltaic cables have ?
A6：Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
